Bently Nevada 3500/05-01-02-00-01 System Rack

Bently Nevada 3500/05-01-02-00-00-01
1、 Model segmentation analysis (ordering code rule: 3500/05-AA-BB-CC-DD-EE)
3500/05=System Rack
AA=01: full-size rack, 19 inch standard, 14 module slots
BB=02: Rail Installation (19 inch EIA Cabinet Rack Installation)
CC=00: No explosion-proof certification option available
DD=00: Reserved space, no additional configuration
EE=01: with CE certification
✅ Complete definition:
3500/05-01-02-00-00-01: 14 slots, 19 inch rack installation, CE certification, non explosion proof 3500 system mainframe

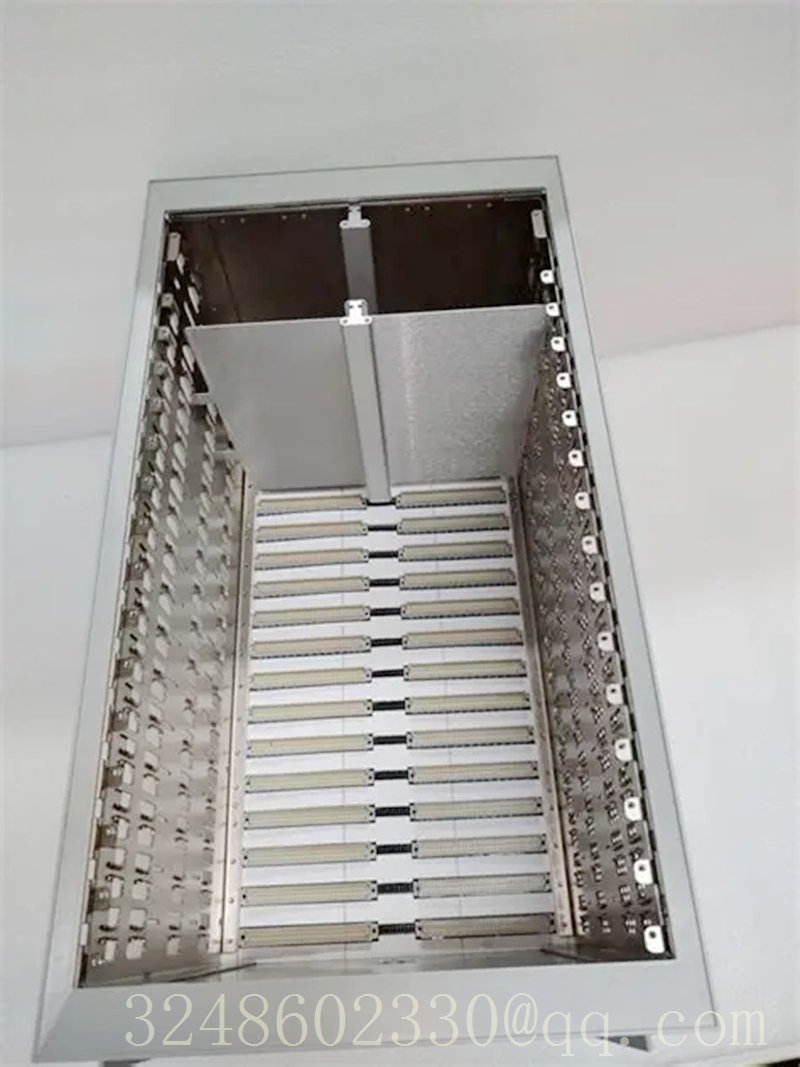

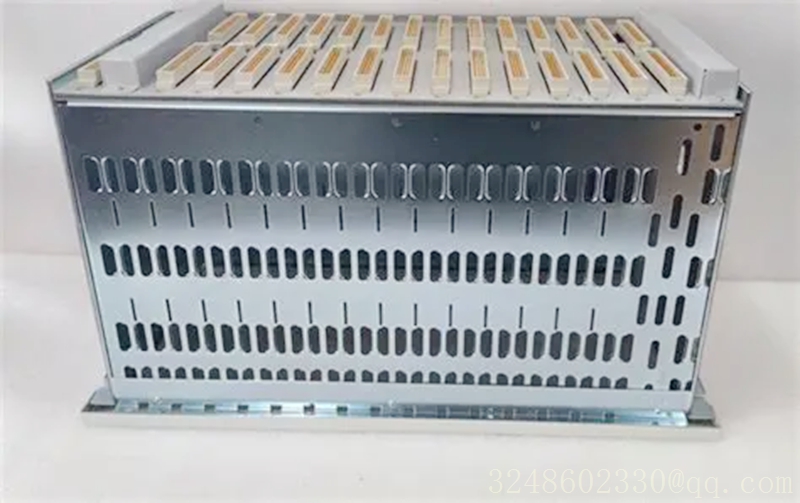

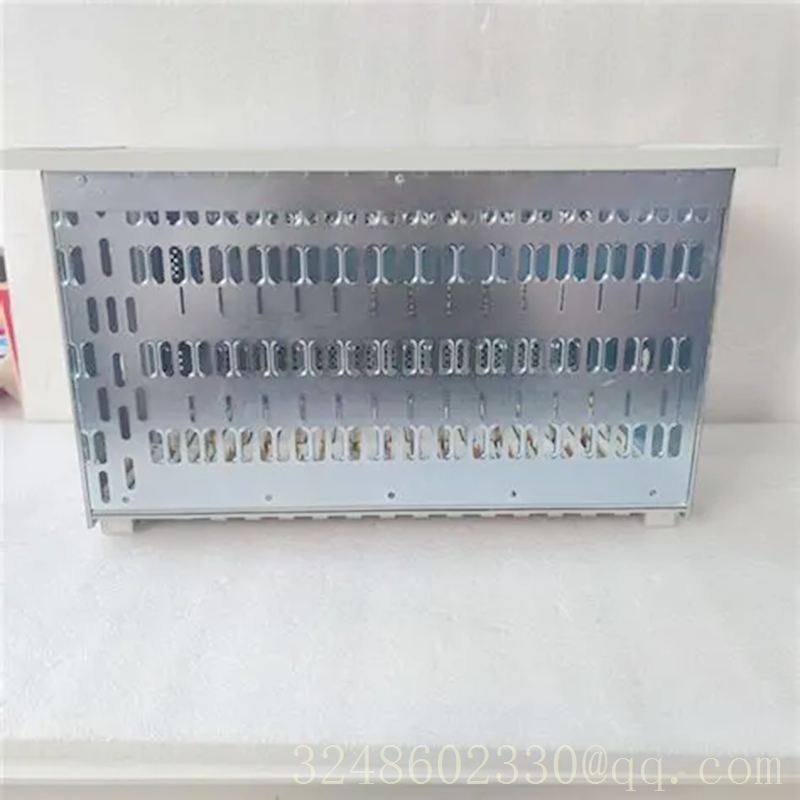

3500/05 rack physical object

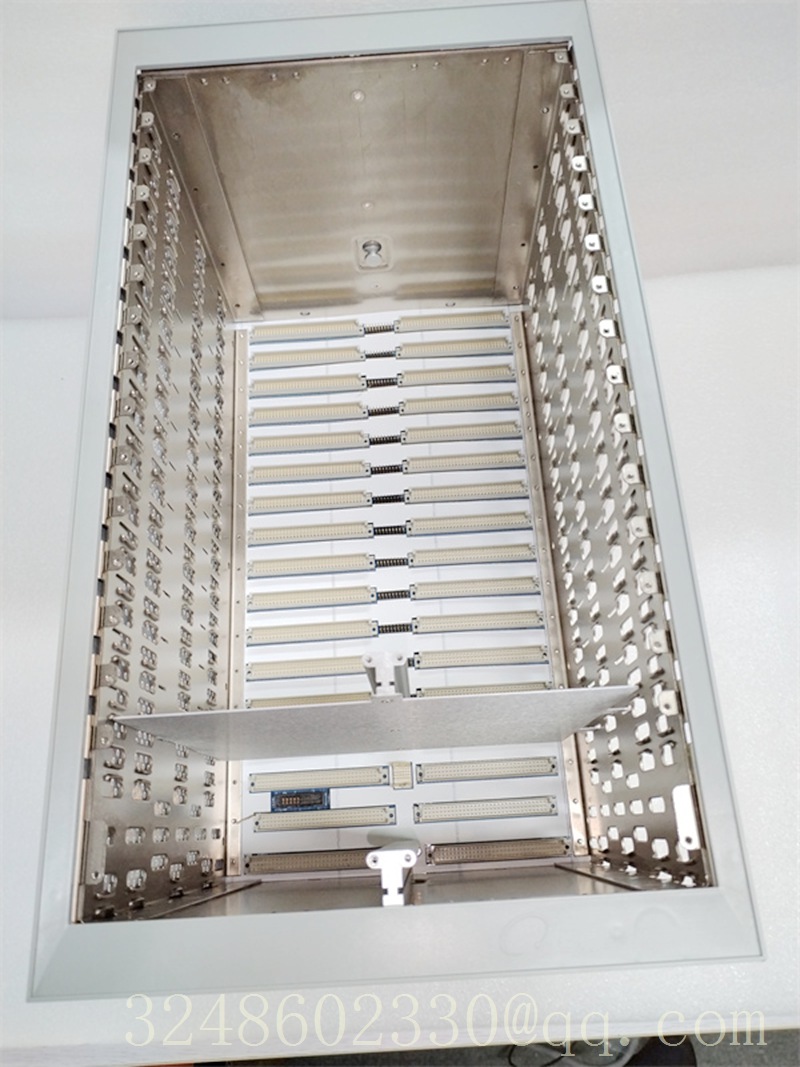

Front of rack
2、 Shutdown status [key distinction, different from power card] The current status of the 3500 complete platform
Baker Hughes (formerly GE/Mostly) official announcement:
The full line EOL shutdown notice for the 3500 series platform has not been officially released yet, which is different from the previous old 3500/15 power supply (127610-01+125840-01)
The 3500/05 system rack is still original and can be ordered as a brand new one
Standard delivery time: 12-16 weeks (overseas original factory)
⚠️ Attention: The entire rack shell and backplate are continuously produced; However, some older versions of power cards and old monitoring cards have been discontinued in batches.
Important distinction:
❌ Old split power supply: 127610-01+125840-01 → 2018 Last Buy, now discontinued
✅ 3500/05 rack body: continuous mass production, no official shutdown plan
✅ New Universal Power Supply 106M1079-01+106M1081-01: Normal Production
3、 Hardware basic information
Country of Origin: United States USA
Total number of slots: 14 slots (the leftmost 2 slots are used to fix the power module)
Compatibility: All standard 3500 series half height modules (3500/40, 42, 45, 50, 53, 62, etc.)
Supporting power supply: can only be paired with 3500/15 power cards (AC/DC)
Weight: Approximately 11.8kg
Size: Standard 19 inches 7U height

4、 Key Risk Tips for Procurement and Machine Operation
New and old backboards are not compatible!
If you use the old model 127610-01 (old AC power supply) for the existing rack on site
The original factory’s new rack backplane circuit optimization is not directly compatible with the old split power supply;
The new rack must be equipped with the new 3500/15-05 (106M1079-01) wide AC power supply.
Two options for the renovation plan of the old unit:
Plan A: Continue to search for inventory old racks and adapt to existing old power sources
Option B: New rack+synchronous replacement of new complete power supply
