BENTLY 3500/22M 288055-01 Transient Data Interface Module

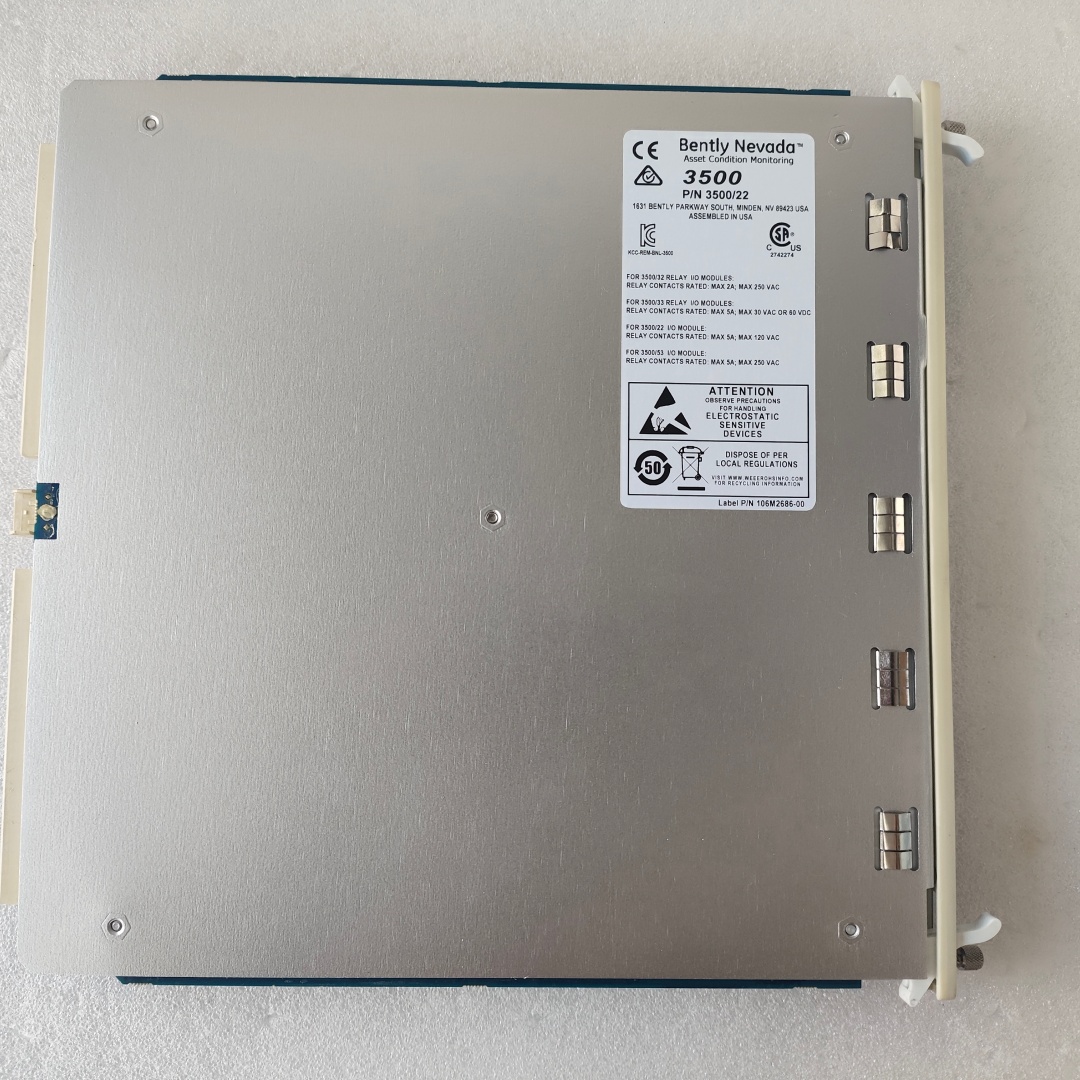

BENTLY 3500/22M (288055-01) Transient Data Interface (TDI)
The status is discontinued (DISC), and it is a complete module of the 3500 system standard TDI * * (different from the 138607-01/146031-01 split version), responsible for uploading high-speed transient waveforms such as vibration/displacement to System 1 for fault diagnosis.

1、 Basic Information
Model: 3500/22M; Part Number: 288055-01 (complete module)
Brand: Bently Nevada (currently owned by Baker Hughes)
Series: 3500 Mechanical Protection System
Type: Transient Data Interface TDI (Integrated RIM+TDXNet Function)
Status: discontinued; The market is mainly second-hand/refurbished, with a small inventory of new goods
Installation: 3500 rack slot 1 (adjacent to the power supply), occupying slot 1
Location: 3500 ↔ High speed data gateway for System 1/configuration software
2、 Core functions
Data collection: in conjunction with 3500/40M/42M/45M/50M, etc., collect steady-state and transient waveforms of vibration, displacement, speed, and key phases
High speed upload: Ethernet transmission of raw waveforms, trajectories, and spectra, supporting recording of transient events during startup/shutdown
System Communication: Integrate the original 3500/20 (RIM) rack interface with TDXnet communication processor

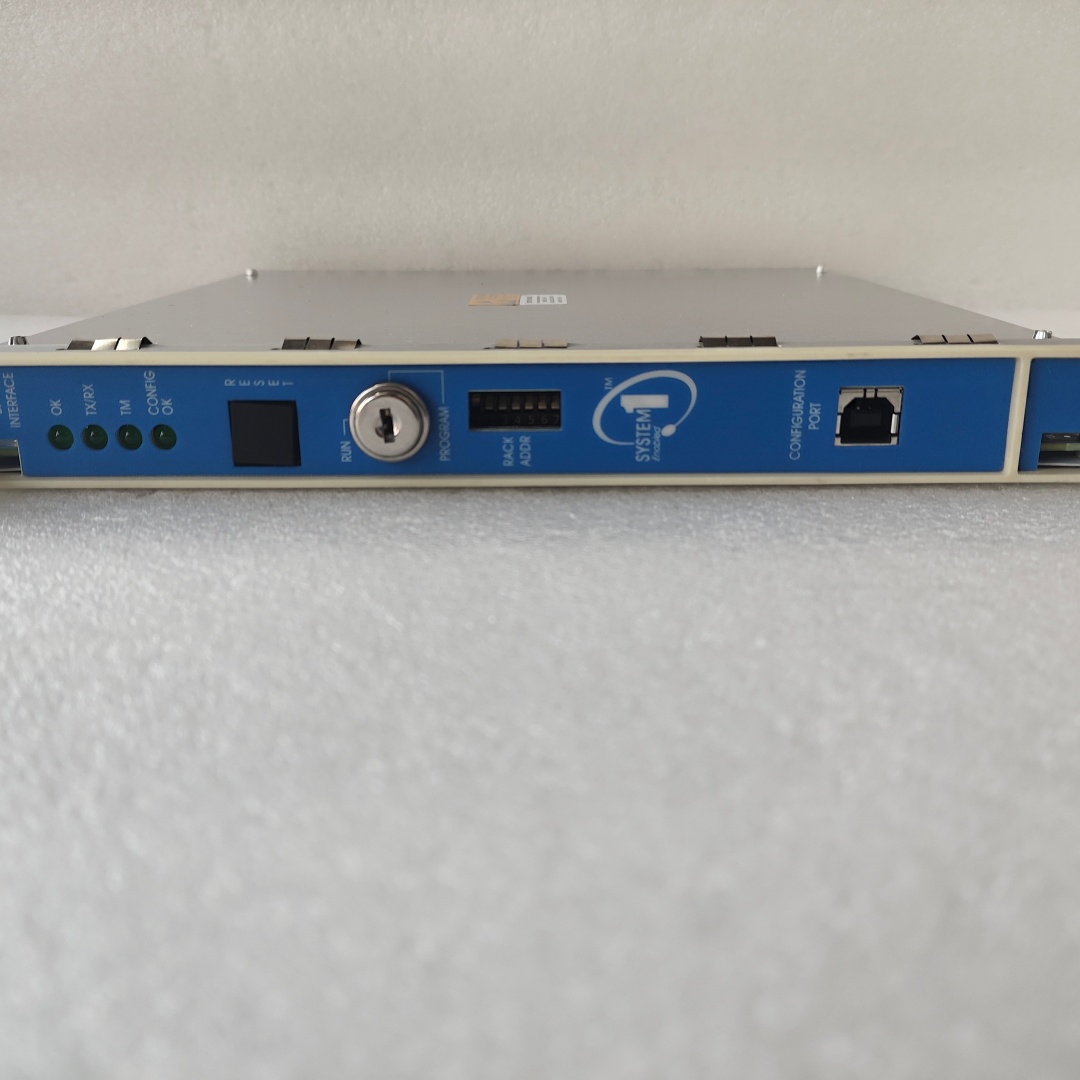

Configuration and control: Front panel USB-B/Ethernet/serial port local configuration; Switch rack RUN/ROG mode

3、 Technical parameters
Power consumption: Typical 10.5W
Power supply: 3500 backplane+5V, ± 15V
Front panel interface:
Ethernet: 10/100 Base TX (RJ45)+100Base FX fiber
USB-B: Local Configuration/Data Export
RS-232: Maximum 115.2kbaud
Sampling capability: up to 100kS/s per channel, supports 48 channel synchronous sampling, bandwidth 500kHz
Working temperature: -30 ℃ to+65 ℃; Storage: -40 ℃~+85 ℃
Dimensions (H × W × D): 133 × 72 × 229mm
Weight: Approximately 1.8kg
Certification: CSA, CE, ATEX; Compliant with API 670

4、 Model discrimination (key)
3500/22M 288055-01: Complete TDI module (motherboard+front panel integrated), standard order number
3500/22M 138607-01: Front panel components (including interfaces and indicator lights)
3500/22M 146031-01: Mainboard components (excluding front panel)
Alternative model: Recommended for the new project is 3500/22E (enhanced TDI), which is functionally compatible and has stronger performance
5、 Procurement and Application
Market price: Second hand/refurbished approximately * * $1800- $2800 * *; New inventory of approximately * * $4500- $6000 * *, warranty of 3-12 months
Typical scenarios: Vibration monitoring and fault diagnosis of high-speed rotating machinery such as steam turbines, gas turbines, centrifugal compressors, generators, etc
6、 Quickly distinguish
288055-01: Complete machine, ready to use directly on the machine
138607-01+146031-01: Combination of individual parts, requiring pairing and assembly
