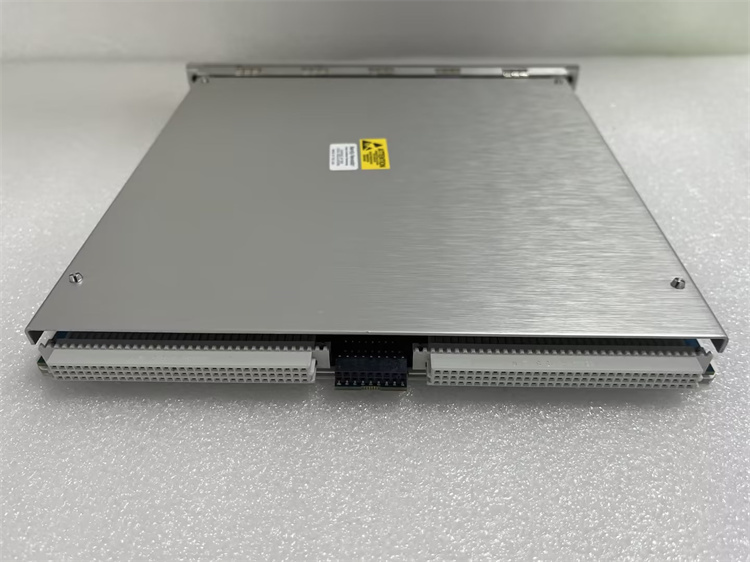

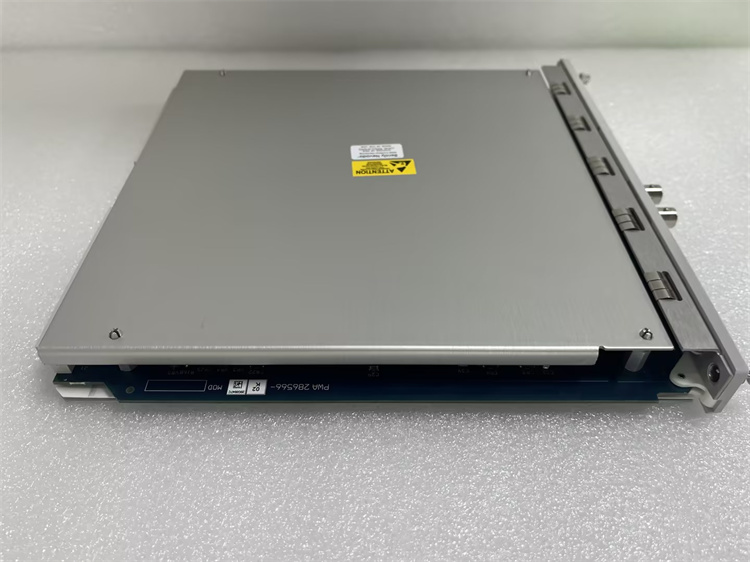

3500/50-01-00 Monitoring Module
Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
WhatsApp:+86 18030183032
Mailbox：3248602330@qq.com
product description
3500/50-01-00 Monitoring Module | Bently Nevada Bently
Product Overview
Project Details
Brand Bently Nevada
Complete models 3500/50-01-00/3500/50M
Product type: Dual channel Tachometer Module
Bently 3500 series mechanical protection monitoring system
Front plate number 288062-02
Back panel number 133442-01
Origin: United States
Certified in accordance with API 670 standard, T Ü V certification
Core positioning: This module is the speed monitoring core card in the Bentley 3500 TSI (Turbomachinery Supervisory Instrument) system, which receives signals from eddy current sensors or magneto electric sensors, monitors the speed, zero speed, reverse and other parameters of rotating machinery in real time, and provides multi-level alarm outputs. It is widely used for the protection of large rotating machinery such as steam turbines, compressors, fans, and water pumps.
Core functions and features
Characteristic Description
Dual channel speed measurement receives input signals from 1-2 eddy current sensors or magnetic pickups
Four optional configuration modes: ① speed monitoring+alarm setting+speed band
Speed monitoring+set alarm+zero speed notification
Speed monitoring+alarm setting+rotor acceleration
Speed monitoring+set alarm+reverse rotation notification
The peak holding function automatically stores peak speed, reverse speed, and reverse rotation times, and users can manually reset them
The key phase signal output can provide adjustable key phase signals for other monitors within the 3500 framework
Multi level alarm warning (Alert) and danger (Danger) programmable alarm setpoints
4~20mA proportional output, independent output for each channel, can be connected to bar chart recorders or old process control systems
Live plugging supports hot plugging without affecting system operation
Not configured at the factory, it needs to be configured on-site through the 3500 framework configuration software
Industrial grade reliability operating temperature -40 ° C~+70 ° C, protection level IP20 (installed inside the cabinet)
Technical specifications and parameters
Parameter specifications
Input signal type eddy current sensor (Proximitor) ®）/ Magnetoelectric sensor
Input signal range+10.0V~-24.0V (automatic limit beyond limit)
Number of input channels: 2 channels (dual channel)
Measurement accuracy ± 20 RPM/min
The alarm setting number is adjustable, with two levels of warning and danger
Output 4-20mA proportional output (independent for each channel)+relay alarm output
Sensor power supply -24V DC (provided by module)
Power consumption is about 5.8W
Working temperature -40 ° C~+70 ° C
Storage temperature -40 ° C~+85 ° C
Dimensions 241.3 mm x 24.4 mm x 163.1 mm (standard half height module)
Weight approximately 0.82 kg
Front panel 288062-02 (blue)
Back panel 133442-01
The frame occupies one 3500 frame slot
Comparison Table of 3500/50 Series Models
Material number, model, channel description
3500/50-01-00 3500/50M dual channel model (with internal terminals, not configured)
3500/50-01-00-01 3500/50M Dual Channel Complete Version (Front Plate 288062-02+Rear Plate 133442-01)
3500/50-01-00-02 3500/50M Dual Channel Another Configuration Version
3500/50-01-01-00-00 3500/50M Dual Channel Vibration Monitoring Configuration Version
3500/50-02-00 3500/50M dual channel version with external terminals
3500/50-03-00 3500/50M Dual Channel TMR Triple Redundancy Version
3500/50-04-00 3500/50M dual channel version with internal safety barrier
3500/53-01-00 3500/53M Single Channel Overspeed Protection Module (2 out of 2/3 vote)
3500 system complete architecture (associated modules)
Module Type Material Number Function
Instrument frame 3500/05-01-01-00-00 14 slot rack, accommodating all monitoring modules
Power module 3500/15-02-02-00 half height power supply (required, recommended redundancy)
Framework Interface 3500/20-01-01-00 Framework and Module Communication Interface
Keyphasor Module 3500/25-01-01-00 Key Signal Acquisition
Speed module 3500/50-01-00 dual channel speed monitoring (this model)
Overspeed Protection 3500/53-01-00 Single Channel Overspeed Protection (2/3 of 2 options)
Displacement Monitoring 3500/40-01-00 4-channel displacement/axial position
Vibration Monitoring 3500/42-01-00 4-channel vibration/velocity/acceleration
Differential Expansion Monitoring 3500/45-01-00 Differential Expansion/Axial Position
Temperature Monitoring 3500/61-01-00 Temperature Monitoring
Relay module 3500/32-01-00 alarm relay output
Communication Gateway 3500/92-01-01 Ethernet Communication
Display device 3500/93-01-00 on-site display
