Woodward MFR300-71M Industrial Automation Control Module

Woodward MFR300-71M (part number complete: 8444-1109) multifunctional measurement and transmission module
1、 Basic Information

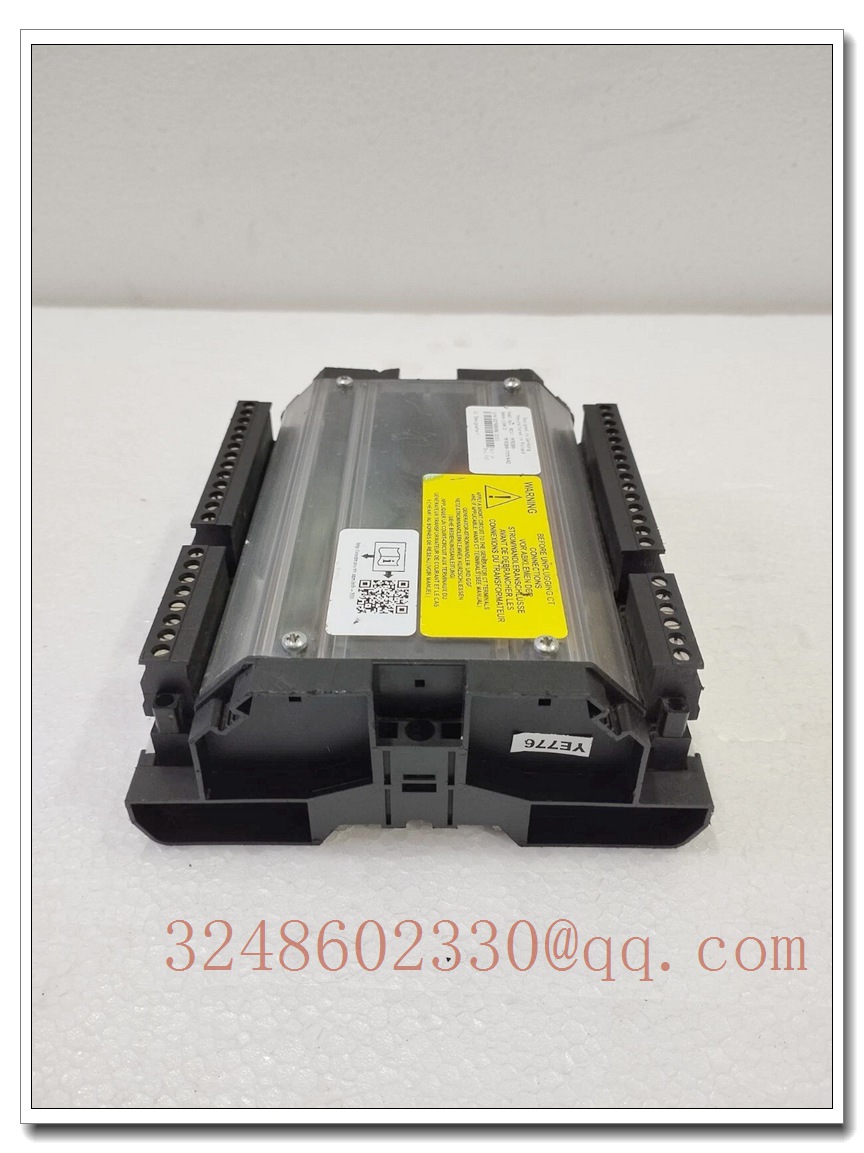

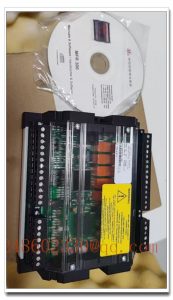

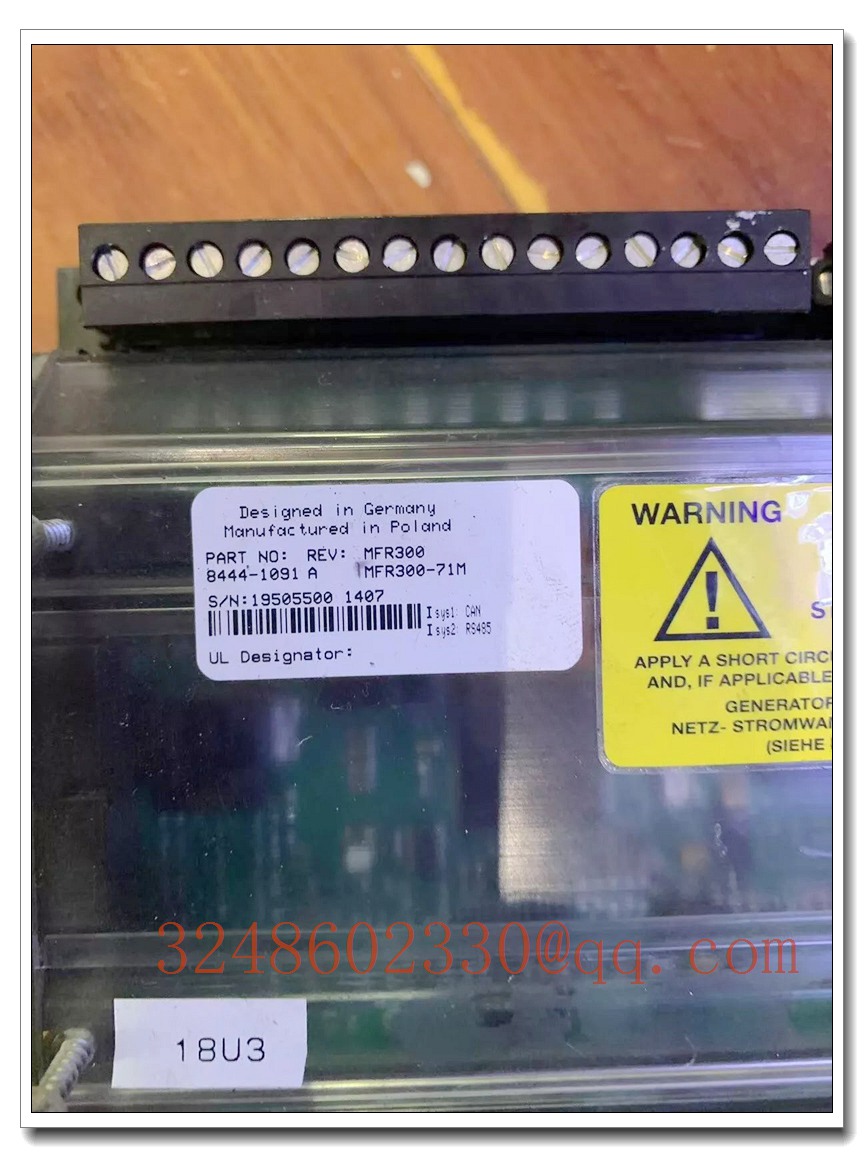

MFR300 series physical picture
Brand: Woodward
Model: MFR300-71M 8444-1109
Product type: Multi functional power measurement relay/transmission module (industrial automation measurement and control module)
Origin: USA Imported from the United States with original packaging
Net weight: 1kg
Warranty: Brand new original warranty for 12 months
2、 Core functions
Specially designed for monitoring single-phase/three-phase power systems, with high-precision collection of True RMS true RMS values:
3-channel voltage, 3-channel current synchronous sampling, 5kHz high-speed sampling rate
Automatically calculate active/reactive/apparent power, power factor, electrical energy, frequency, and harmonic data
4 groups of customizable undervoltage monitoring, supporting wind power FRT fault ride through protection logic
Communication interface: CANopen, Modbus, compatible with PLC/upper monitoring system
Supporting isolated USB debugging cable (part number 5417-1251), original software configuration parameters Woodward
3、 Key electrical parameters
Measurement accuracy: voltage/current/frequency level 0.5; Power/Electric Energy Level 1
Power supply: DC 8-32V (standard 12/24V DC), maximum power consumption 5W
Rated voltage specification: 400/690Vac (71M suffix corresponds to high voltage range)
Working temperature: -20 ℃~+70 ℃; Storage -40 ℃~+85 ℃
Protection: Non condensing environment with humidity of 95%
4、 English description of foreign trade quotation standards (can be directly copied and sent to customers)
Woodward MFR300-71M (Part No.8444-1109) multifunction relay & measuring transducer, industrial automation control module.
Origin: USA, net weight 1kg, brand new original with 1-year warranty.
Support True RMS voltage/current/power measurement, Modbus & CANopen communication, suitable for three-phase power system monitoring.
5、 Applicable scenarios
Complete automation projects for generator sets, wind power variable pitch, factory power distribution, energy storage systems, and ship power monitoring.
