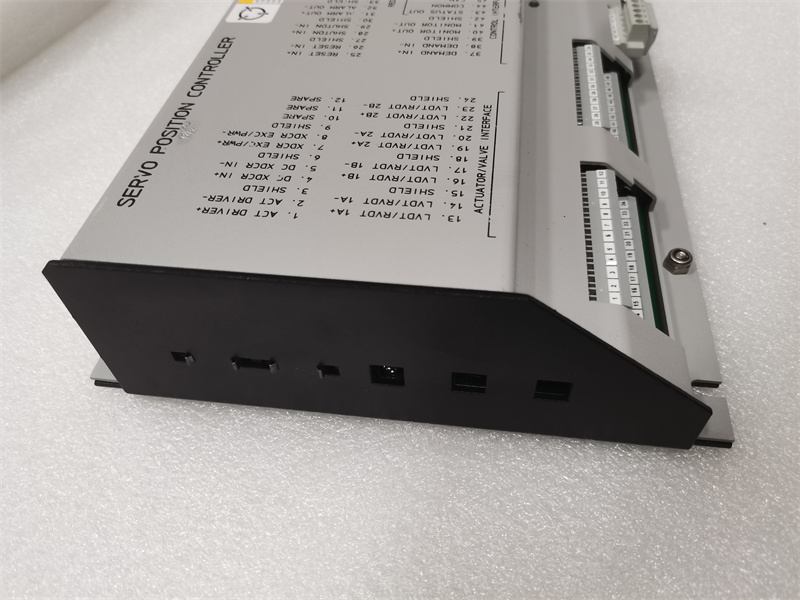

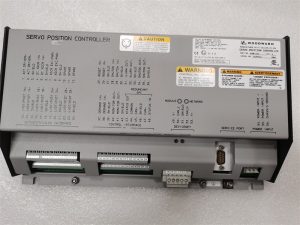

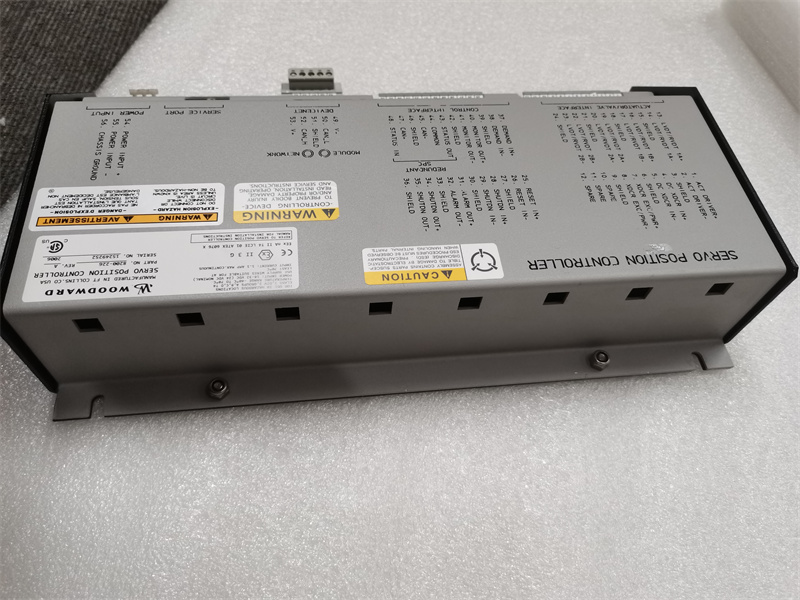

WOODWARD 8200-226 servo position controller

Basic Product Information
Project Information
Brand Woodward
Model 8200-226
SPC series (Servo Position Controller)
Product Type: Servo Position Controller/Servo Valve Driver
Main functions
Control object: Can accurately control proportional servo valve and integral servo valve
Signal input: Supports DeviceNet or 4-20mA position demand signal
Feedback support: Supports single or dual position feedback devices, can accept up to two redundant AC or one DC feedback signal
Alternative models: Replaced 8200-224 and 8200-225 models
technical parameters
Source of parameter values
Power supply voltage 18-32V DC, nominal 24V
Working current range 2-22 mA
Maximum current 1.1A
Power consumption of 20W
Output current range ± 10 to ± 250 mA
Input impedance 200 Ω
Resolution 11 bits (capable of processing 2048 different positions)
Weight 1.55 kg
Communication interfaces RS-232, RS-485, Ethernet DeviceNet
Protection level IP65
Working temperature range -40 ° C to 85 ° C
Power installation requirements:

Fuse: 5A, 125V, able to withstand 20A, 100ms starting current
Should be placed away from high voltage, high current equipment, and water exposed areas
software support
Equipped with Windows based software for configuration, adjustment, and remote monitoring
SPC service tool: used for configuration, calibration, adjustment, monitoring, and fault diagnosis, connected to a PC via serial port
Can read existing configurations and generate configuration files
Main application areas
Industrial automation: servo system control, precision machining, robot control
Valve control: Position control of valves in chemical processing, power generation, oil and gas production processes
Actuator control: actuator position control in robots, machine tools, and motion control systems
Antenna positioning: position control of antennas in satellite communication systems and radar systems
Gas/Steam Turbine Fuel Control System
