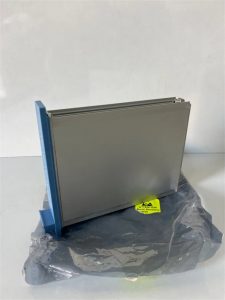

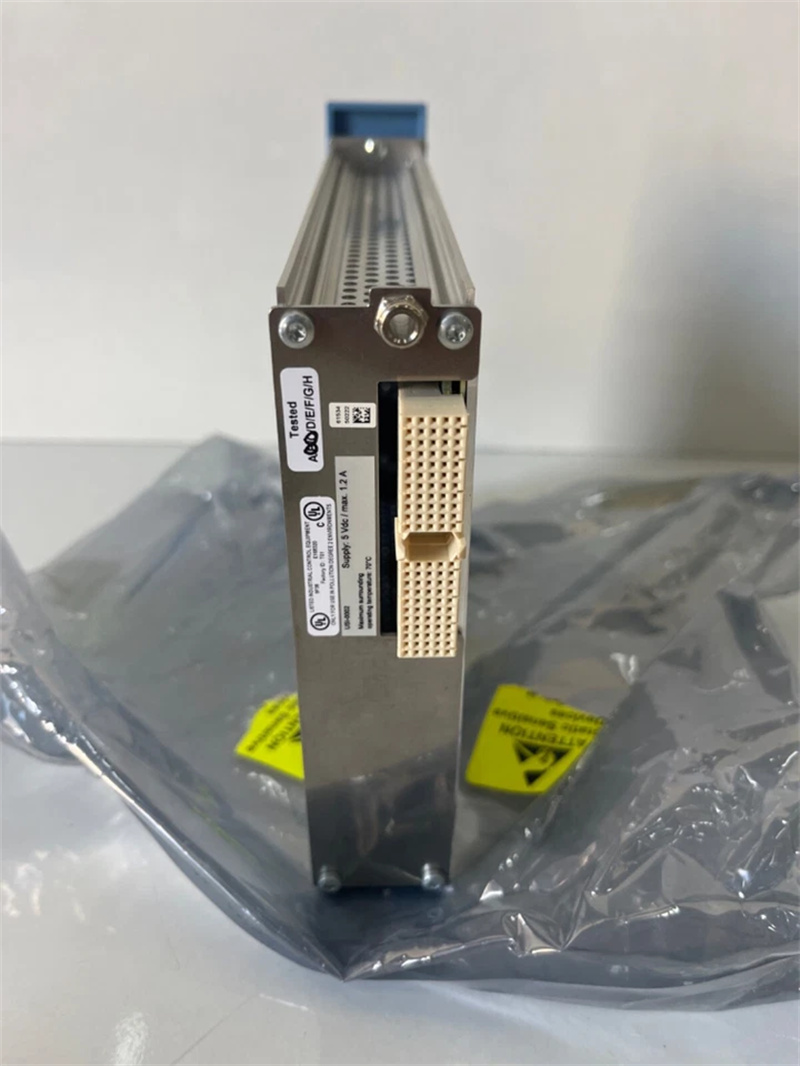

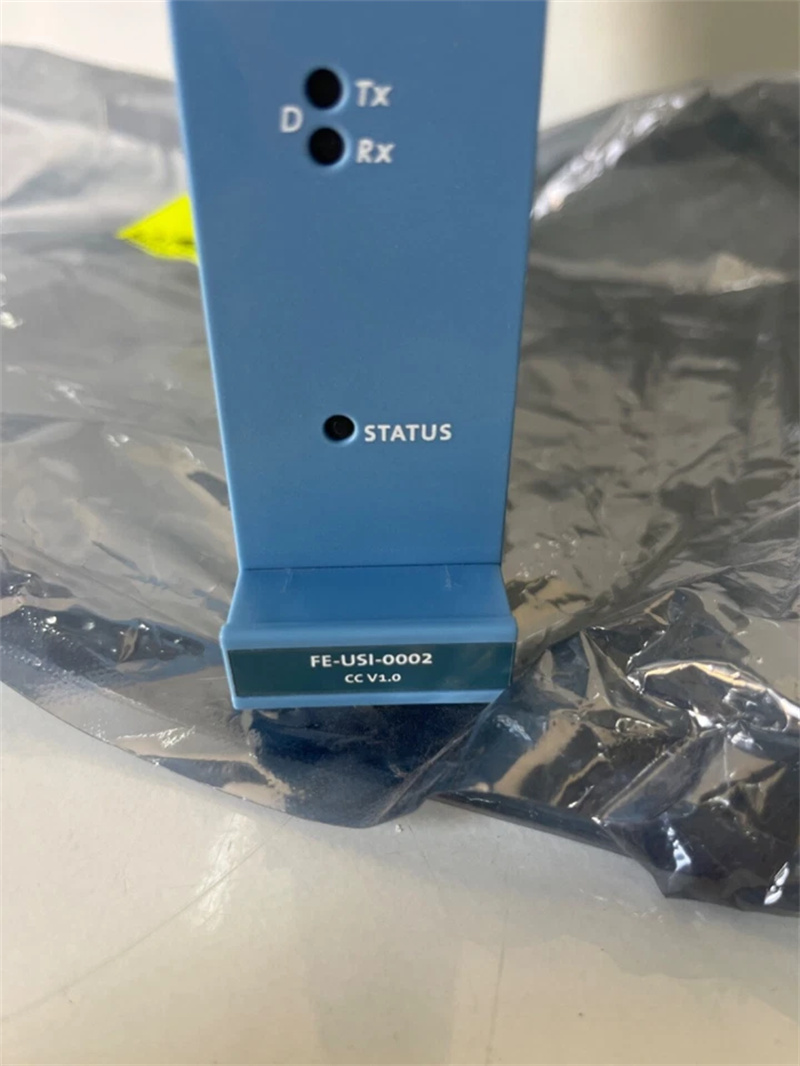

USI-0002 CC V1.0 Universal Security Interface Module

USI-0002 CC V1.0 (full name FC/FE-USI-0002 CC V1.0) is a universal safety interface module (Universal Safety Interface) for Honeywell Safety Manager safety systems. It is used in SIS safety instrumented systems to achieve safety communication and I/O processing between safety controllers and third-party devices/field instruments.
1、 Basic Information
Model: FC-USI-0002 CC V1.0/FE-USI-0002 CC V1.0 (CC=Control Cabinet, V1.0 is the firmware version)
Positioning: Safety Manager, core interface module of safety system, non ordinary DCS controller
Origin: United States
Weight: Approximately 0.7-0.8kg
Size: Approximately 21.2 × 17.6 × 3.52cm
Certification: CE, UL508, TUV, CSA, applicable to SIL2/SIL3 safety level
2、 Core parameters
table
Parameter specifications
Power supply 5VDC ± 5%, maximum 1.2A
Working temperature -5 ℃~+70 ℃
Storage temperature -40 ℃~+85 ℃
Humidity 10% -95% (non condensing)
Communication dual Ethernet port (10/100Mbps), serial port; Supports FTP/CDA, Modbus, and HART
I/O capability with 16 secure inputs and 16 secure outputs; Supports analog/digital/HART signals
3000VAC isolation between isolation channels, surge/EMI protection
3、 Core functions
Secure Communication Gateway
Connect the Safety Manager safety controller to non Honeywell devices (PLC, instruments, third-party SIS)
Realize secure bidirectional data transmission to meet SIL3 security integrity requirements
I/O signal processing
Safe input: DI/AI/HART, signal conditioning, filtering, diagnosis
Safe output: DO/AO, redundant drive, fault safe design
Built in fault detection, supporting channel level diagnosis and alarm
System compatibility
Adaptation: Honeywell Safety Manager R140.1+, Expert PKS C series
Can be installed in the same cabinet as C series modules such as BKM-0001 and PSU-240516
