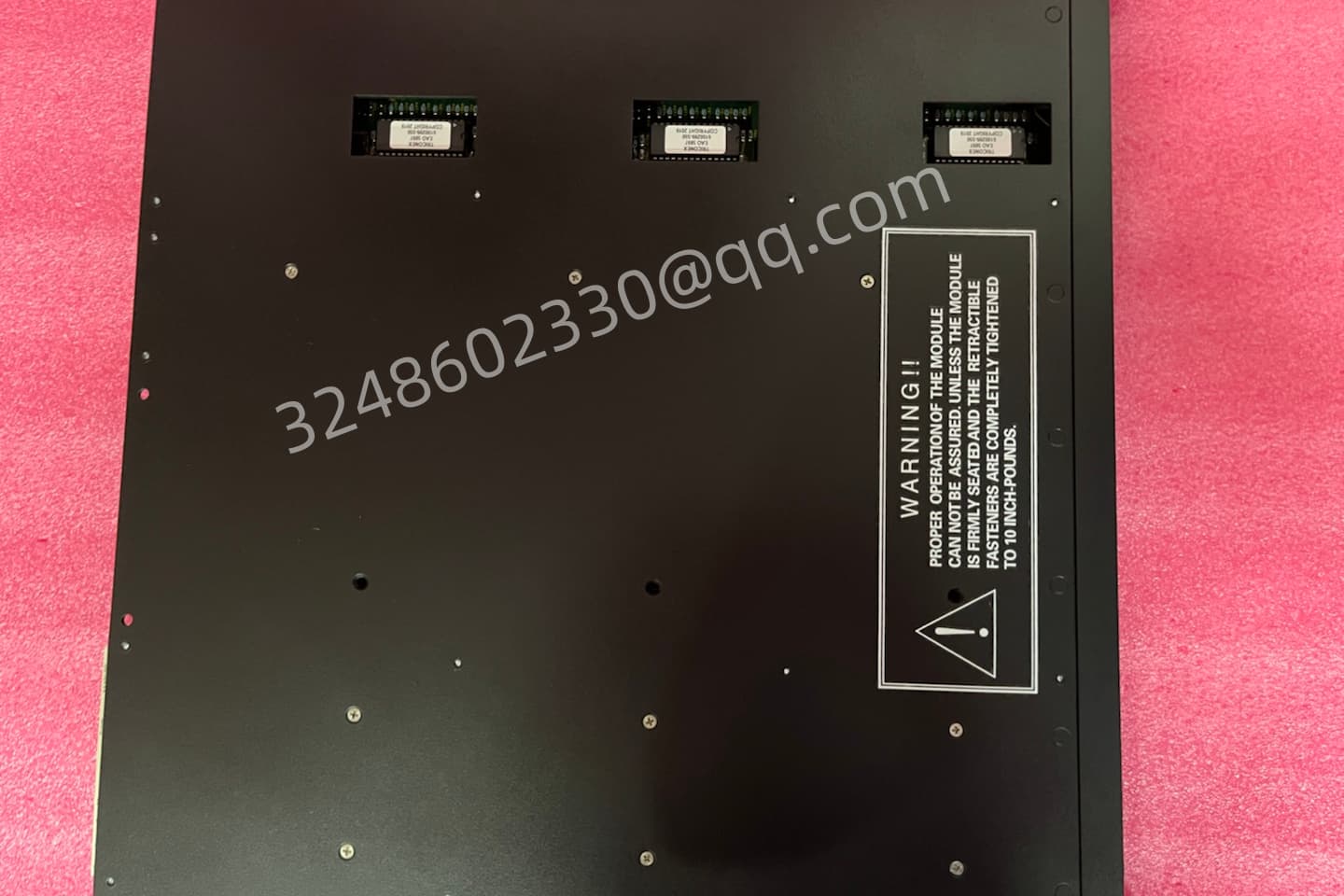

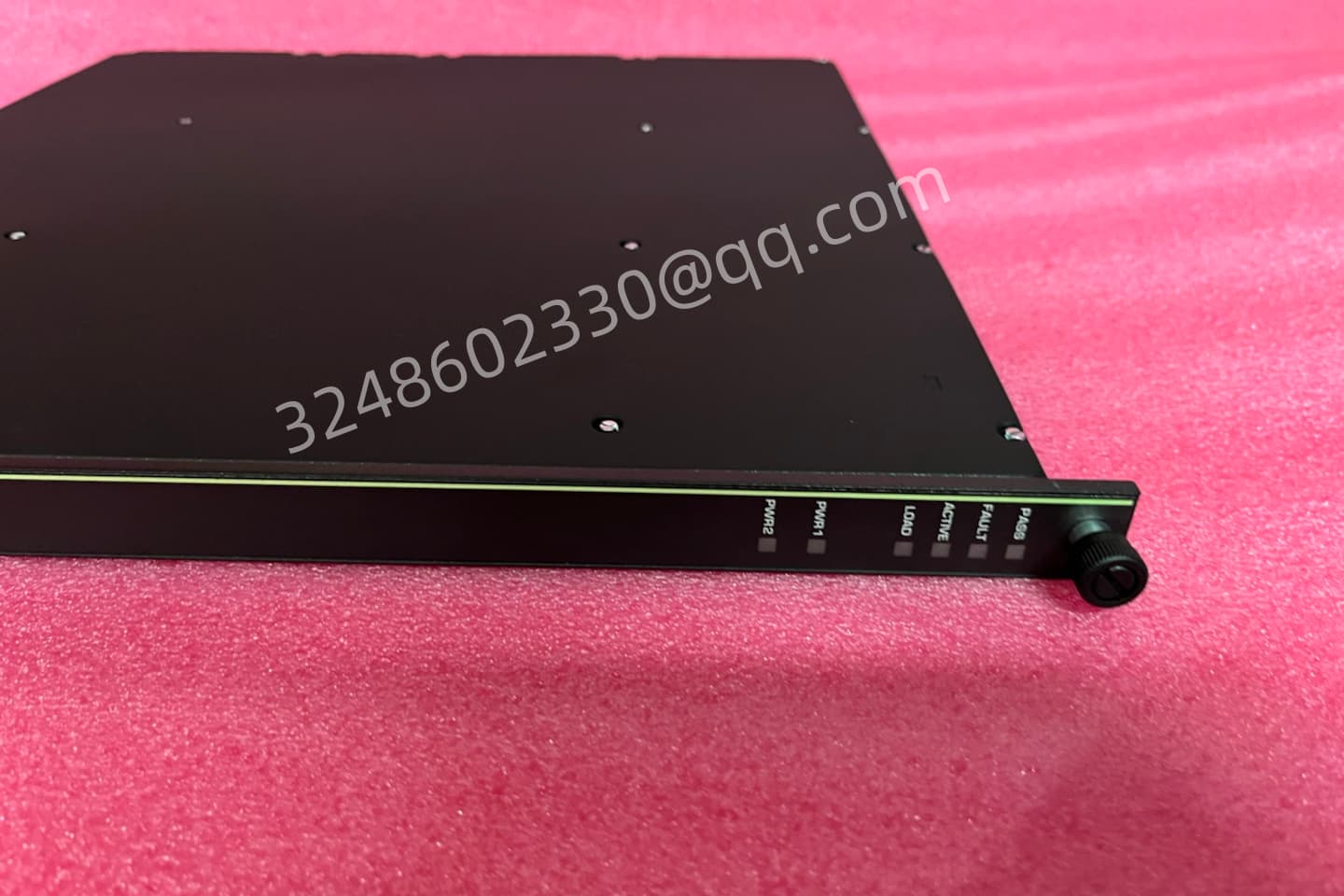

TRICONEX 3805E Industrial Safety Control Module

TRICONEX 3805E is the core analog output safety control module in the TRICONEX safety system, designed specifically for critical industrial safety scenarios.

1、 Typical work scenario
Turbomachinery control: relying on high current output capability to ensure continuous and reliable control of simulated signals in turbine equipment.
Oil and gas and chemical production: Stable output signals in high-risk scenarios such as refineries and oil and gas processing stations to avoid process interruption risks.
Electric power utilities: adapted to continuously operating power generation facilities, relying on fault-tolerant design to ensure the stability of the power supply system.
On site execution control: It can directly drive and control valves, variable frequency speed regulation devices, trigger safety alarms and status indicator lights.
2、 Core technical parameters
Physical specifications: Dimensions 14.5 cm x 10.2 cm x 2.8 cm, weight 0.85 kg, originating from the United States.
Electrical parameters: 24 VDC nominal power supply, supporting 8 channels of 4-20mA/0-10VDC analog input and 8 channels of 4-20mA analog output.
Environmental tolerance: working temperature range -20 ℃~+70 ℃, storage temperature -40 ℃~+85 ℃.
Supporting requirements: It is necessary to match the basic terminal board 9853-610F to complete the wiring adaptation.
3、 Key product characteristics
TMR Triple Redundancy Architecture: Fault tolerance is achieved through independent operation and voting mechanism of three channels, and the system can still work normally in case of single channel failure.
Full link fault diagnosis: Real time monitoring of the module’s own and circuit status, identifying open circuits, short circuits, and signal abnormalities, and actively reporting to the controller.
Industrial level adaptation capability: Supports mainstream industrial protocols such as Modbus and Profinet, and can seamlessly integrate with the entire range of TRICONEX security systems.
Safe and compliant design: Complies with SIL3 safety level requirements, comes with overcurrent, overvoltage, and over range protection, and is suitable for harsh working conditions.
