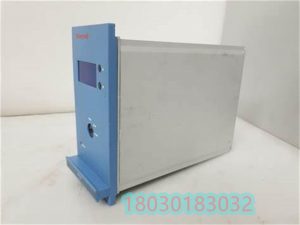

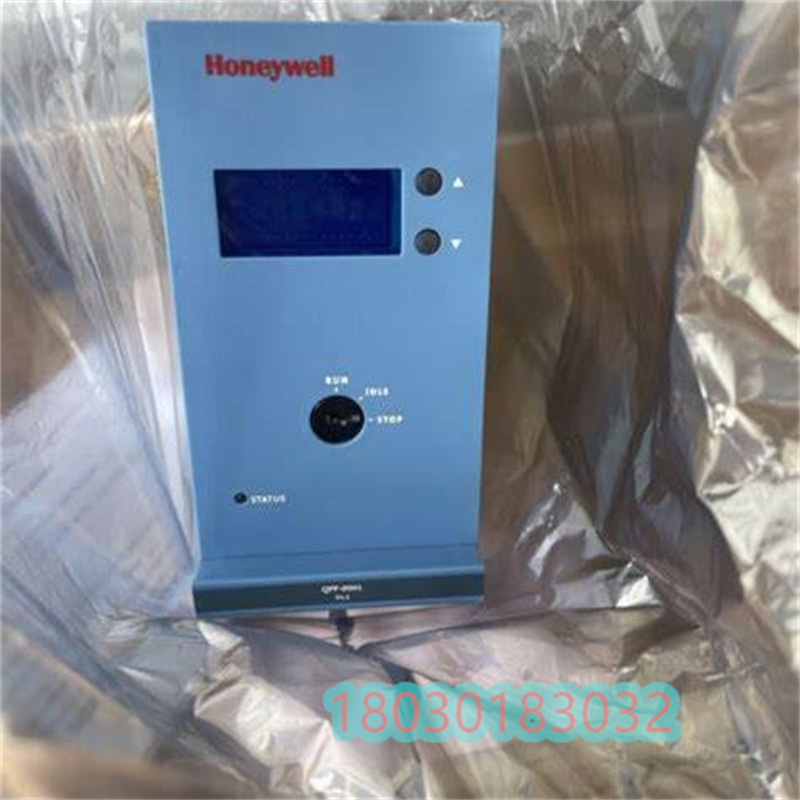

QPP-0001 CCV1.4 quad core processor module

QPP-0001 CC V1.4 (full name FC-QPP-0001 CC V1.4/FS-QPP-0001 CC V1.4) is a quad processor pack for Honeywell Safety Manager/FSC safety systems, providing a highly reliable and real-time safety logic computing core for SIL3 safety circuits.
1、 Basic Information
Model: FC-QPP-0001 CC V1.4 (Universal DCS); FS-QPP-0001 CC V1.4 (Safety SIS)
Positioning: The core computing unit of Safety Manager/FSC safety controller, not a regular DCS processor
Origin: Sweden/USA
Size: Approximately 178 × 112 × 75mm
Weight: Approximately 0.8-1.0kg
Certification: T Ü V SIL3, CE, UL, CSA, applicable to SIL2/SIL3 safety level
2、 Core parameters (V1.4)
table
Parameter specifications
Power supply 24VDC ± 5%, maximum 250mA
Four core independent secure processor with 15Hz control cycle
Program/Data 3MB, Data 1MB; 512KB non-volatile storage
Communication dual redundant FTE/Ethernet RS‑485、Modbus RTU
Security capability supports SIL3 security logic, fault safety design
Diagnostic built-in self diagnosis, CPU/memory/communication/power full chain monitoring
Working temperature -20 ℃~+60 ℃
MTBF >100, 000 hours
3、 Core functions
Quad core secure computation
Four processors independently execute safety logic in parallel, cross check, and single point of failure does not affect the system
Support complex safety interlock, ESD, SIS emergency stop logic, response<5ms
Redundancy and high availability
Support 1+1 redundancy, interference free switching, switching time<100ms
Compatible with BKM-0001, USI-0002, and PSU-240516 in the same cabinet
Secure Communication Gateway
Connect secure I/O, USI-0002 interface module, third-party SIS/PLC
Secure data transmission that meets SIL3 communication integrity requirements
Diagnosis and maintenance
LED status+dry contact alarm, supports remote diagnosis
Firmware V1.4 is backward compatible with V1.3 and cannot be hot swappable. It must be powered off and replaced
