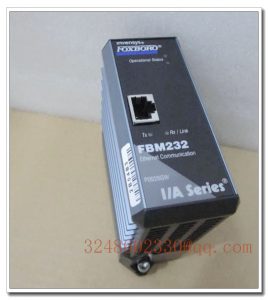

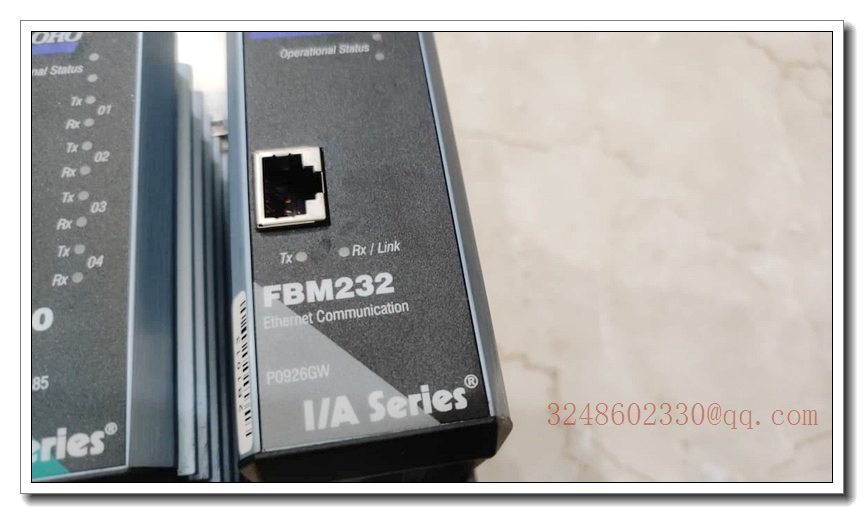

P0926GW (FBM232) Ethernet Communication Interface Module

P0926GW (FBM232) Ethernet Communication Interface Module
Brand: FOXBORO (now owned by Schneider Electric)
Series: FBM232 Field Device System Integration (FDSI) Module

core parameters
Parameter specifications
Ethernet interface 10 Mbps/100 Mbps copper Ethernet, RJ-45 connector
Maximum number of connected devices: 64 on-site devices
The maximum number of DCI block connections is 2000 distributed control interfaces
Data type: Analog I/O (integer/IEEE single precision floating-point), Digital I/O (single point/packaged, up to 32 points per connection)
The maximum I/O capacity is 2000 analog quantities or 64000 digital quantities (or mixed)
Scan rate up to 500 ms (depending on device type)
Communication protocols Modbus TCP/IP, EtherNet/IP, etc. (with dynamically downloadable drivers)
Redundant 2 Mbps module fieldbus (dual path, automatic fault switching)
Environmental grade G3 (harsh industrial environment)
Configuration method FDSI configurator, based on XML port/device configuration files, supports DHCP, IP address and other settings
The module connects field devices through Ethernet switches/hubs and integrates field data into the Foxboro DCS control database.

Key Features
Characteristic Description
Multi protocol drivers can dynamically download I/O software drivers from protocol libraries, supporting standard protocols and customized third-party protocols
High integration single Ethernet interface replaces multiple fieldbuses, greatly simplifying wiring
Redundant communication accepts communication via any path of the redundant 2 Mbps fieldbus, without interruption in the event of a single path failure
Remote monitoring supports remote management and maintenance, reducing operation and maintenance costs
Built in diagnostic function for fault diagnosis, quickly identifying and reporting system faults
Industrial grade reliable anti vibration, anti pollution, dust-proof, suitable for long-term continuous operation
Industry Applications
Typical scenarios in the field
🛢️ On site instrument data collection and process monitoring in petrochemical industry
⚡ Power generator/transformer status monitoring, SCADA integration
💊 Pharmaceutical batch processing process control, GMP data collection
🏭 Networking and real-time monitoring of manufacturing production line equipment
🏗️ Building automation HVAC and lighting system integration
⛏️ Remote device communication in harsh mining environments
Related models
Model Description
FBM232 series Ethernet communication modules with different configurations within the same series
P0926GG FBM224 communication interface module (similar to positioning)
FCM100Et/FCM100E fieldbus communication module (used in conjunction with FBM232)
FCP270/FCP280 Field Control Processor
ABB PPC907BE (3BHE024577R0101) DCS communication module of the same type (interchangeable reference)
FBM232-P0926GW complete model writing
