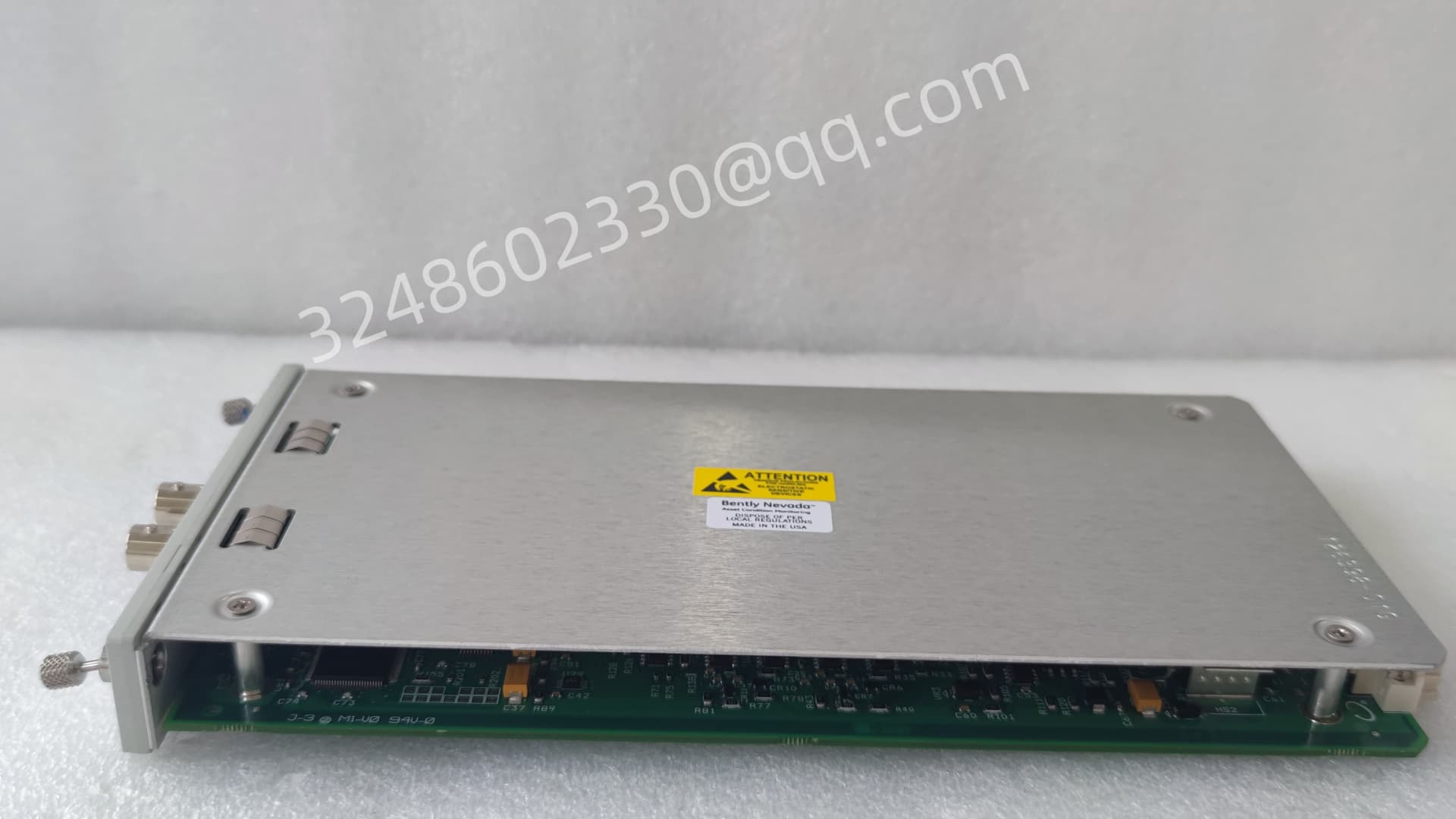

Bently 3500/25 SIL2 Keyphasor Module

Bently Nevada 3500/25 SIL2 is the Keyphasor Module in the Bently Nevada 3500 series mechanical condition monitoring system. This module is specifically designed to provide phase reference information and is a key component for vibration analysis and speed measurement of rotating machinery.

1. Main functions
Phase reference: Receive signals from proximity probes or magnetic pickups, convert event pulses from one or more rotations into digital timing measurements.
Speed and Vector Analysis: Used in conjunction with other monitoring modules (such as 3500/42M) to calculate the machine’s speed, 1X amplitude, and phase. These parameters are crucial for diagnosing faults such as imbalance, misalignment, and shaft bending.
SIL 2 certification: The label “SIL2” indicates that the module complies with the safety integrity level 2 requirements of IEC 61508 standard and is suitable for interlock protection applications that require higher safety levels (such as overspeed protection, shaft displacement protection, etc.).
2. Typical models and configurations
In the 3500 system, the 3500/25 typically exists in the form of a “full height module” and is equipped with a corresponding “backplane connector” for wiring. Common combinations include:

Main module: 3500/25-01-01-00 (Part Number: 149369-01)
Backboard/small card: 125800-01 (used for connecting sensor inputs)
Other variants: Depending on the input type (voltage/current), number of channels, and safety certification, the suffix code may vary (such as -02-01-01, etc.).
3. Position in system architecture
Non critical path: The 3500/25 itself does not directly trigger the shutdown interlock, but the phase data it provides is the basis for accurate analysis of other critical monitoring modules (such as vibration and shaft displacement).
Rack slot: can be installed in any available slot of the 3500 rack (except for the power slot and RIM/TDI slot). Each rack can accommodate up to 4 3500/25 modules.

4. Application scenarios
Large rotating machinery widely used in industries such as oil and gas, electricity, and chemical engineering, such as:

steam turbine
compressor
generator
Pump and fan
5. Procurement and maintenance tips
Compatibility: Ensure that the module version is compatible with the existing 3500 rack firmware and System 1 software.
Spare parts identification: When placing an order, it is necessary to confirm the complete part number (Part Number), such as 149369-01, rather than relying solely on the 3500/25 description, as different suffixes represent different electrical characteristics or certification levels.
