8BVI0028HWD0.000-1 Dual axis Inverter Module

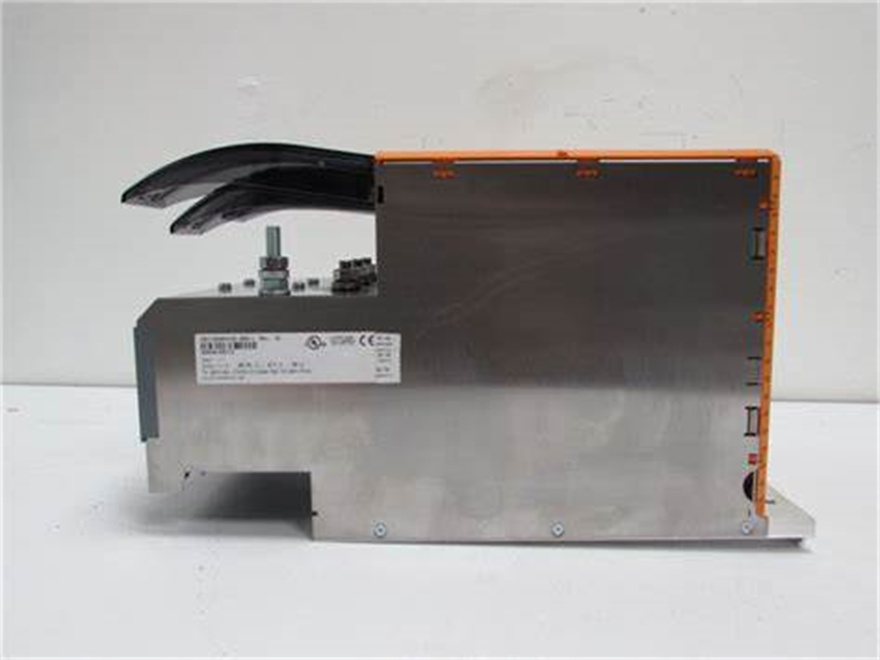

8BVI0028HWD00000-1- B&R ACOPOSmulti Dual Axis Inverter Module
This is a 2.8kW dual axis wall mounted inverter module from the B&R ACOPOSmulti series, with the model suffix meaning as follows:

Meaning of model segment
8BVI inverter module
0028 rated power 2.8 kW
H High Voltage Version (HV, DC Bus 750VDC)
W Wall Mounting
Dual axis (single module drives 2 motor axes)
0.000-1 firmware/hardware version

core parameters
Rated power 2.8 kW (per shaft)
Continuous output current of 3.8 Aeff (per axis)
Peak current 9.5 Aeff (per axis, strong short-term overload capacity)
DC bus voltage 750 VDC (closed-loop control)
Maximum output frequency 598 Hz
Switching frequency options include 5/10/20 kHz
Encoder interface 1-channel EnDat 2.2 (9-pin D-Sub female head)
Integrated brake output 24VDC, maximum 1.1A
Digital input: 2-channel Trigger Input (response time~52 µ s)
Dimensions 53 × 317 × 263 mm (width × height × depth)
Weight approximately 2.6 kg
Protection level IP20
Working temperature 5 ° C~40 ° C (maximum 55 ° C)
Installation method: Wall mounting
2 plug-in slots (for ACOPOSmulti plug-in module expansion)

Key Features
Dual axis design: One module drives two servo motor axes, reducing the number of modules by half compared to single axis solutions, saving cabinet space and costs (about 20% space can be saved for 10 axes or more, and 40% space can be saved for 40 axes)
Common DC BUS technology: Multi module shared DC bus, braking energy feedback to the grid, power factor close to 1
POWERLINK Real time Ethernet: Standard configuration, system refresh rate up to 200 µ s, supporting a maximum inter station distance of 100m
Integrated safety function: supports uncontrolled stop and integrated safe stop, compliant with EN 61800-5-2/SIL3
Dynamic Node Allocation (DNA): Supports, simplifies wiring and debugging
Cable length limit: maximum 25m at 5/10kHz, maximum 10m at 20kHz

Comparison with models in the same series
Model, power, number of axes, installation method, encoder
8BVI0028HWD0000-1 2.8 kW dual axis wall mounted EnDat 2.2
8BVI0028HWS.000-1 2.8 kW single axis wall mounted EnDat 2.2
8BVI0028HWDS.00-1 2.8 kW dual axis wall mounted EnDat 2.2 (SafeMOTION)
8BVI0055HWD0.000-1 5.5 kW dual axis wall mounted EnDat 2.2
8BVI0014HWD0.000-1 1.4 kW dual axis wall mounted EnDat 2.2
Suffix S=single axis, D=double axis, DS=double axis+SafeMOTION (integrated safety)

Typical Applications
Packaging machinery, plastic machinery, printing equipment (such as the 34 axis flexographic printing machine from GIDUE, a customer of B&R)
High speed winding and textile machinery
Beer/Beverage Filling Line
Any multi axis servo system that requires more than 10 axes, pursues compact cabinets, and low cost
