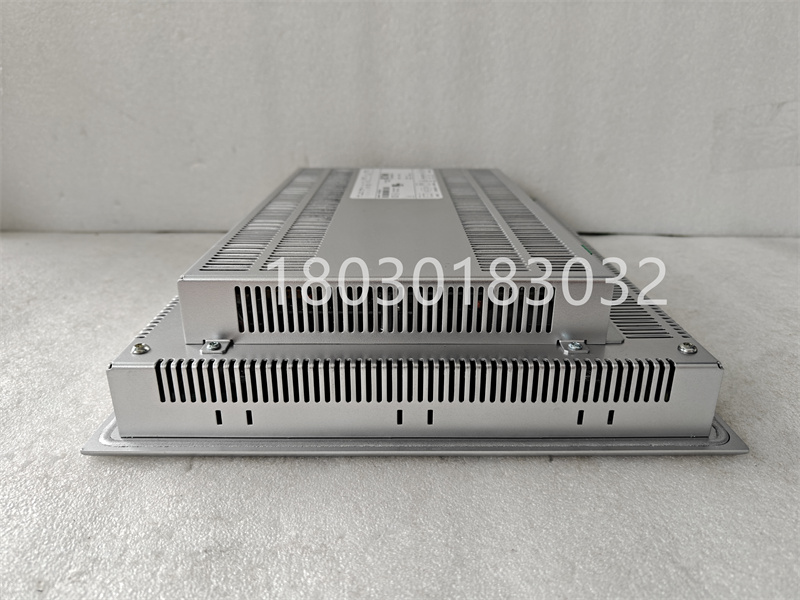

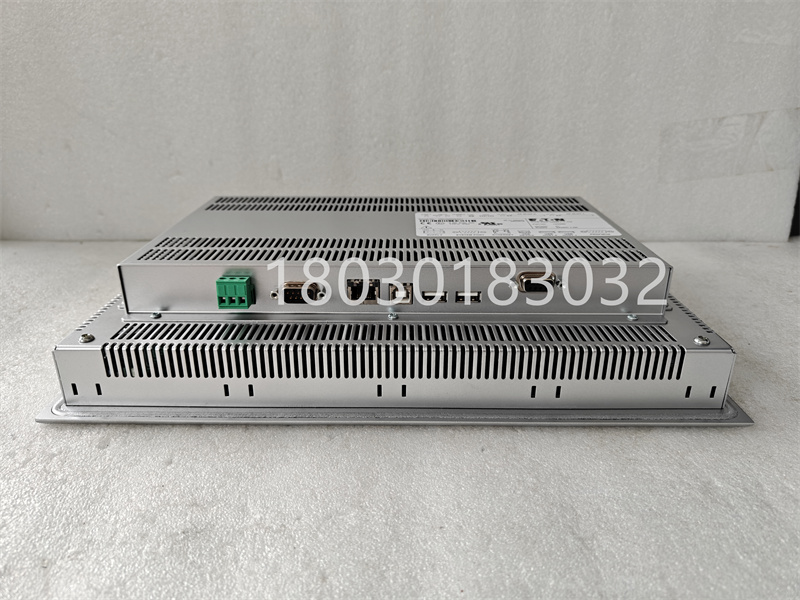

XVS-430-57MPI-1-10 Eaton Touch Screen

Introduction to Eaton XVS-430-57MPI-1-10 Touch Screen Module

1、 Basic Product Information
Brand: Eaton
Model: XVS-430-57MPI-1-10
Type: Industrial touch screen module, belonging to human-machine interface (HMI) devices
Design purpose: To provide an intuitive operating interface and powerful data processing capabilities for industrial automation control systems, significantly improving the operational efficiency of industrial control systems.

oplus_2097152

2、 Core functions
Human computer interaction:
Supporting users to perform intuitive operations and controls through the touch screen has improved the usability and efficiency of the device.
As a human-machine interface device, it can display system status, parameters, and alarm information in real time, making it easy for operators to monitor and manage.
Data processing and communication:
Having strong data processing capabilities, capable of handling complex industrial control algorithms and logic.
Supports multiple communication interfaces, such as Ethernet, RS232, RS485, etc., for easy data exchange and communication with other industrial automation equipment.
Programmability:
Users can program and customize the equipment to meet specific industrial automation control needs.
Supports multiple programming languages and development environments, making it easy for engineers to perform secondary development and integration.
Stability and reliability:
Eaton is renowned for its high quality and reliability, and this touchscreen product inherits this advantage.
Capable of stable operation in various complex environments and adapting to harsh industrial environments.

oplus_2097152

3、 Technical parameters and specifications
Screen size: 10 inches (some information mentions 12 inches, but based on most information, it is inferred to be 10 inches)
Resolution: 800 × 600 pixels (some models may support higher resolutions)
Input method: Capacitive touch, providing a clear and smooth operating experience
Working voltage: 24V DC (meets the common power requirements of industrial automation equipment)
Protection level: IP65 (front panel), capable of stable operation in harsh industrial environments
Storage temperature: -20 ° C to+70 ° C
Operating temperature: -10 ° C to+50 ° C (some models may support a wider operating temperature range)
Interface type: RS232/RS485 (some models may support more interfaces such as Ethernet, USB, etc.)
Certification standards: CE, RoHS, etc., ensure the safety and environmental friendliness of products
4、 Use on-site
Eaton XVS-430-57MPI-1-10 touch screen module is widely used in various industrial automation scenarios, including but not limited to:

Power plant: Monitor equipment such as generators, turbines, and speed controllers to ensure stable operation of the power generation system.
Substation and Distribution: Used for monitoring transformers, circuit breakers, voltage regulators, and other equipment in substations and distribution stations.
Power grid control: applied to the monitoring, scheduling, and control of the power system to ensure the stability and reliability of the power grid.
Industrial process control: applied in manufacturing and chemical plants to achieve automation and monitoring of production processes.
Energy management system: supports monitoring, analysis, and optimization of energy systems to improve energy efficiency.

oplus_2097152

5、 Related models
Eaton Corporation produces various models of touch screen modules to meet the needs of different industrial automation scenarios. Models related to XVS-430-57MPI-1-10 may include:

XVS-440-57MPI-1-10: Similar to XVS-430-57MPI-1-10, but may differ in screen size, resolution, or functionality.
XV-442-57CQB-1-10: Another Eaton touch screen module with similar functions and application scenarios.
Other customized models: Eaton also offers customized touchscreen module solutions to meet specific customer needs.
6、 Usage method
Installation and wiring:
Install and wire according to the product manual or relevant specifications to ensure the correct connection between the module and the control system.
Pay attention to the wiring sequence and polarity to avoid short circuits or reverse connections.
Parameter configuration:
According to actual application requirements, configure the parameters of the module, such as communication interface type, baud rate, IP address, etc.
Configure the display parameters of the touch screen, such as brightness, contrast, resolution, etc.
System integration:
Integrate modules into industrial automation control systems and perform linkage control with other devices or modules.
Write or import control programs to implement specific control logic and functions.
Debugging and testing:
After the system integration is completed, debug and test to ensure that the module can work properly and meet the design requirements.
Simulate actual working conditions for testing to verify the stability and reliability of the module.
7、 Precautions
Safe operation:
During installation, wiring, debugging, and testing, it is essential to follow safety operating procedures to prevent safety accidents such as electric shock and short circuits.
Use appropriate tools and protective equipment to ensure the safety of operators.
Anti static measures:
When handling electronic components, anti-static measures should be taken, such as wearing anti-static wristbands, using anti-static workbenches, etc., to prevent static electricity from damaging the module.
Regular inspection and maintenance:
Regularly inspect and maintain modules to ensure they are in good working condition.
Check whether the wiring is loose, whether the module is dusty or damp, and promptly handle and replace it.
Follow the product manual:
During use, it is necessary to strictly follow the requirements of the product manual or relevant specifications for operation and maintenance.
Do not arbitrarily change the parameters or configurations of the module to avoid affecting its normal operation or causing malfunctions.
