TRICONEX 3211S2 Digital Input Module

Triconex 3211S2 Digital Input DI Module (Trident Series SIS System)

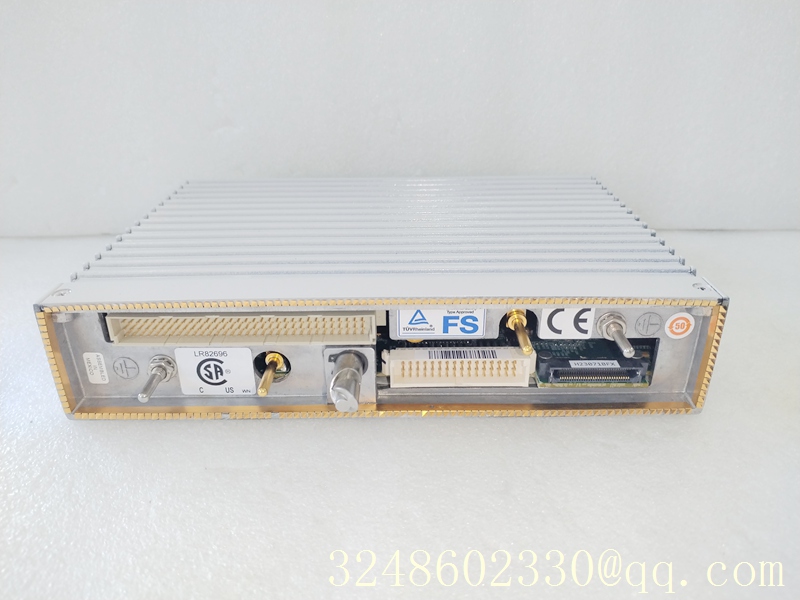

3211S2 interface side
1、 Basic Core Information
Model: 3211S2 (pure DI digital input card, pay attention to distinguishing the communication card CIM3211S2, the two are completely different and cannot be mixed)
Brand: Triconex (under Schneider, formerly Invensys)
Adaptation system: Trident’s new generation TMR triple redundant safety instrument SIS/ESD system
Origin: United States USA
Safety certification: T Ü V IEC61508 SIL3, FM, UL, ATEX explosion-proof, meets oil and gas, power plant unit interlocking standards
Architecture: Standard TMR two out of three hardware redundancy, supports online hot plugging, and single channel failure does not trigger system shutdown
2、 Electrical channel parameters
Channel configuration: 16 isolated digital inputs per module
Compatible with on-site signals
24VDC dry contact, wet contact (valve position feedback, emergency stop, pressure/level switch)
Wide width universal: 24VDC~250VAC/DC universal input, compatible with high-voltage field switches
Level threshold
OFF state: ≤ 10% rated voltage
ON state: ≥ 70% rated voltage
Isolation and anti-interference
Channel and backplane optoelectronic isolation 2500VAC
Common mode rejection ratio -85dB, suitable for strong electromagnetic environments in power plants and refineries
Diagnostic function (TFM full fault management)
Single channel disconnection, ground short circuit, power short circuit, module three redundant channel voting self-test; Panel independent LED channel indicator light, real-time fault upload to TriStation software alarm
Power supply and power consumption
The rack backplane is powered by 5V, with a full load power consumption of approximately 5.8W
Environmental specifications
Working temperature: -40 ℃~+70 ℃
Storage: -40 ℃~+85 ℃
Humidity 5%~95%, no condensation
3、 Shutdown status (emphasis)
Not discontinued, currently still in mass production and supply at the original factory
The Trident series (32xx, 33xx, 34xx I/O cards) is currently the main product line of Triconex. Schneider has no EOP discontinuation notice and can directly place new orders with the original factory;
Current supply situation: The brand new original factory continues to supply, while the market has inventory of new machines and second-hand disassembled parts in circulation;
Original factory repair support: Full life cycle spare parts guarantee, chips and baseboards can be repaired by the original factory.

4、 Distinguishing easily mixed models (avoiding pitfalls in procurement)
3211S2 16 channel DI digital input card for collecting on-site switch, emergency stop, valve feedback Trident rack specific
The CIM card of CIM3211S2 communication integration gateway is not compatible with DCS and Modbus network communication hardware, and the slots are incompatible
The old TriPak 5481 series DI old generation AI/DI card old TriPak rack (discontinued) is not compatible with the 3211S2 rack and program
5、 Typical application scenarios
The ESD emergency shutdown system for refining, natural gas, thermal power, and chemical plants collects digital safety signals such as safety switches, flame detection, unit trip feedback, safety doors, and manual emergency stops.
