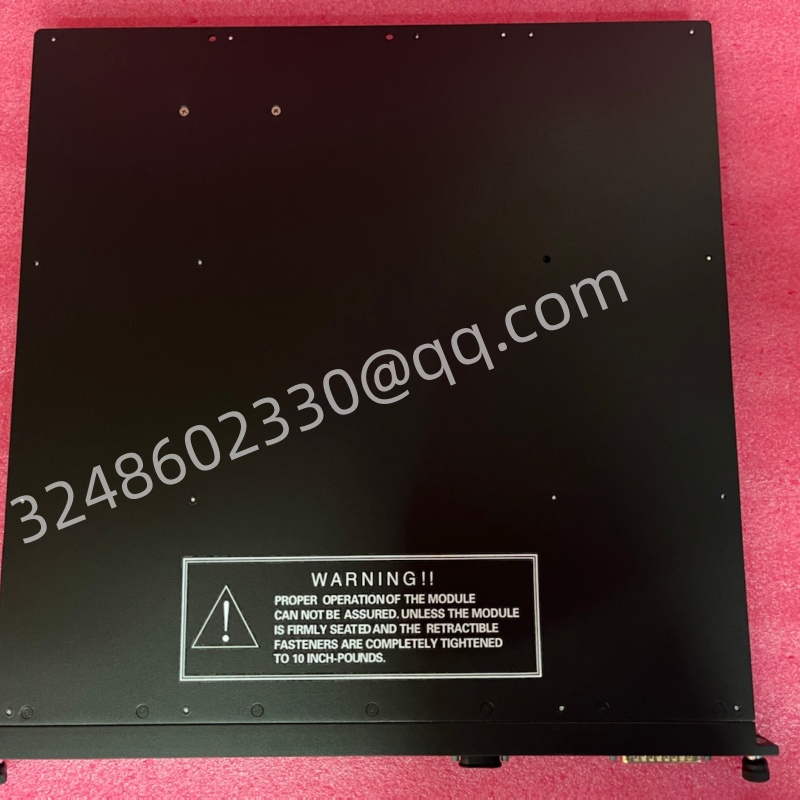

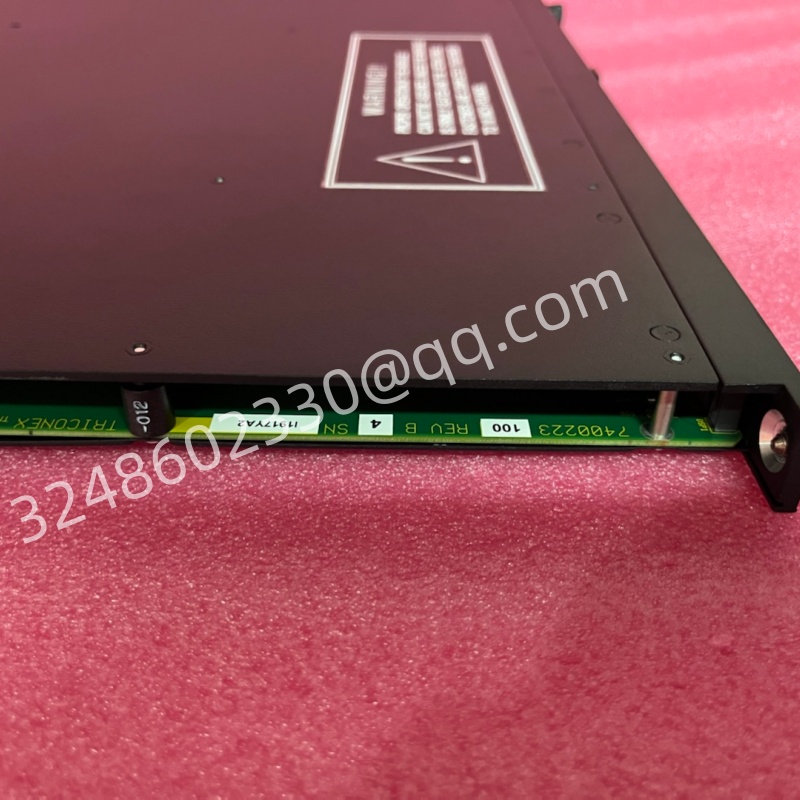

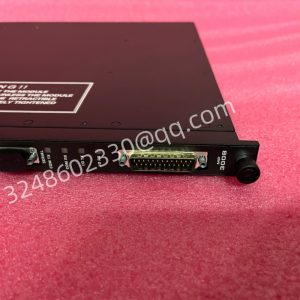

TRICONEX 3008 Input Module Part Number: 3000710-100

TRICONEX 3008 (part number 3000710-100) is a classic Analog Input Module in the safety instrumented system of Invensys (now Schneider Electric) Triconex.
Unlike the previously discussed digital quantity module (3564/3664), the 3008 is specifically designed to handle continuously changing analog signals such as temperature, pressure, flow rate, liquid level, etc. It is a key interface for converting process variables in the physical world into data that can be processed by digital control systems.
The following is a detailed technical analysis of TriconeX 3008 (3000710-100):

1. Product identification and version
Model: 3008
Part Number: 3000710-100
3000710 is the basic material number.
-100 usually represents the specific revision or manufacturing batch of the hardware. It is very important to ensure that the revised version of the new module is consistent with the Compatibility Matrix when replacing spare parts. Although higher versions are usually compatible with lower versions, it is necessary to confirm firmware support.
Type: Analog Input (AI) module, supporting Triple Modular Redundancy (TMR) architecture.

2. Core functions and technical features
Triple Redundancy Acquisition (TMR)
Independent channel: The 3008 module contains three completely independent analog signal processing channels inside.
Synchronous sampling: Three channels simultaneously collect signals from the same on-site sensor.
Median Selection: The main processor compares the data of three channels, automatically removes the outlier with the largest deviation (if there is a fault), and takes the average or median of the remaining two values as the final input data. This ensures that even if a single channel drifts or fails, it will not cause control logic misjudgment.
Signal type support
3008 is a multifunctional module that typically supports multiple signal types through software configuration or jumper (depending on the specific sub version):
Current signal: 4-20 mA (most commonly used), supports two-wire or four wire transmitters.
Voltage signal: 0-5V, 1-5V, 0-10V, etc.
Thermocouple (TC): Supports multiple types of thermocouple inputs (such as J, K, T, E, R, S, B, N, etc.) for temperature measurement.
Thermistor (RTD): Supports Pt100, Pt1000, Ni100 and other thermistor inputs (usually requiring a dedicated terminal board to provide excitation current).
Millivolt signal: Low level millivolt signal input.
High precision and diagnosis
Resolution: typically 15 bits plus sign bits, providing high-precision process data.
Cold junction compensation (CJC): Built in cold junction compensation circuit used for temperature correction in thermocouple measurements.
Wire breakage detection: It can detect sensor wire breakage (open circuit) or short circuit faults in real time and immediately alert the system.
Range check: Monitor whether the input signal exceeds the set engineering unit range.

3. Supporting hardware (terminal board)
The 3008 module itself is not directly connected to on-site cables and must be installed on a dedicated analog input terminal board. Common matching terminal boards include:
3008T: A terminal board specifically designed for 3008, providing wiring terminals, signal conditioning, and isolation.
Universal terminal board: Some versions of the Tricon system may use universal analog terminal boards (such as some models of the 3700 series), but strict verification of pin definitions is required.
Attention: The selection of terminal board determines the supported signal types (for example, terminal board with cold end compensation temperature measurement point for thermocouple connection, terminal board with constant current source for RTD connection).
4. Application scenarios
3008 is widely used in safety critical situations that require precise monitoring of continuous process variables:
Key temperature monitoring: reactor bed temperature, compressor exhaust temperature, bearing temperature (to prevent overheating explosion or damage).
Pressure monitoring: High pressure vessel pressure, pipeline pressure (used for high high/low low interlocking parking).
Flow and liquid level: critical tank liquid level, feed flow (used for overflow protection or dry run protection).
Industry: Catalytic cracking units in refineries, ethylene cracking furnaces, natural gas pipeline compression stations, boiler drum water level control, etc.
5. Maintenance and replacement precautions
Calibration: Although the module has a self diagnostic function, it is recommended to perform regular on-site loop calibration after long-term operation to ensure measurement accuracy meets SIL level requirements.
Configuration matching: In TriStation software, it is necessary to correctly configure the signal type (such as 4-20mA or Type K thermocouple), range, and engineering units for each channel. Configuration errors can result in completely incorrect readings.
Spare parts compatibility:
Part number 3000710-100 is a specific version. If the purchased spare parts have different suffixes (such as -200, -500), be sure to refer to Schneider Electric’s official hardware replacement guide.
Newer Tricon systems may recommend using updated series analog modules (such as version 3009 or higher), which may have higher accuracy or faster response speed, but replacement in older systems requires confirmation of backplane and firmware compatibility.
Grounding and shielding: Analog signals are highly susceptible to interference. During installation, it is necessary to ensure that the shielding layer of the terminal board is properly grounded, and that the signal and power lines are routed separately to prevent noise from entering and causing interlock misoperation.
summary
The TriconeX 3008 (3000710-100) is the core component for processing analog signals in the Tricon system. It utilizes TMR technology to convert complex continuous signals such as temperature and pressure on site into highly reliable digital data, providing precise “sensing” capabilities for safety interlock logic. For ESD or F&G systems involving process variable monitoring, the stable operation of 3008 is directly related to the safety boundary of production equipment. When performing maintenance or replacement, please pay close attention to signal type configuration, terminal board matching, and compatibility of component versions.
