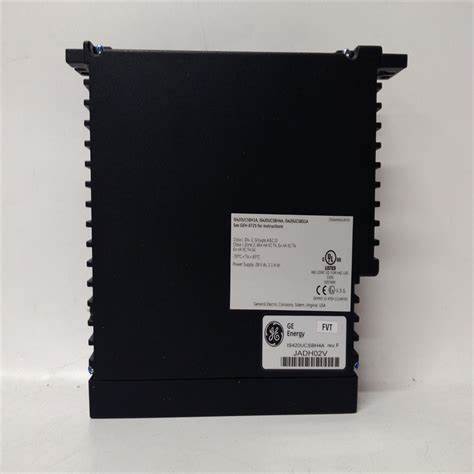

IS420UCSBH4A High Performance Industrial Control Module

IS420UCSBH4A is a Mark VIe series high-performance industrial control module produced by GE Electric in the United States. Its core purpose is to serve as the main controller for gas turbine control systems, and it is also widely used in fields such as petrochemicals and metallurgy that require high reliability. ‌‌‌

This module mainly serves heavy industry scenarios that require high-speed and high reliability control, and is commonly used in the following industries:

Power industry: used in gas turbine combined cycle power generation systems to adjust the fuel to air ratio in real time and improve the thermal efficiency of the unit.
Petrochemical industry: Implementing multivariable predictive control in catalytic cracking and other units to stabilize product yield.
Smart Grid: As a virtual power plant control node, it supports millisecond level load response and scheduling.
Other fields: including metallurgy, new energy, and critical process industries that require compliance with SIL 2 or SIL 3 safety levels. ‌‌‌

This module adopts industrial grade design, and its hardware parameters can meet the real-time computing requirements of complex algorithms. The main configurations are as follows:

Processor: Equipped with Intel EP80579 processor, with a clock speed of 1066 MHz, providing powerful computing power.
Memory and Storage: Equipped with 256 MB DDR2 SDRAM running memory and 512 MB Flash storage space, supporting multitasking and data recording.
Operating System: Run the QNX Neutrino real-time multitasking operating system to ensure system response speed and industrial grade stability.
Communication and Expansion: Supports multiple protocols such as Modbus, Profinet, Ethernet, and VME bus, and can connect I/O packets through IONet interface. It can be expanded up to 768 control points. ‌‌‌

In order to adapt to harsh industrial site environments, this module has been specially designed for protection and safety certification:

Environmental adaptability: The working temperature range is wide, supporting -20 ° C to+60 ° C in conventional environments, and can be extended to -40 ° C to+85 ° C in extreme models. It is also resistant to vibration and electromagnetic interference.
Redundancy design: Supports hardware level redundancy, with a redundancy switching time of less than 50ms. Some models are equipped with dual redundant fans to ensure zero fault operation of the system.
Safety certification: Passed IEC 61508 certification, meets SIL 2 and SIL 3 functional safety requirements, suitable for hazardous and non hazardous locations.
Convenient maintenance: adopting modular design, supporting hot plugging and online replacement of faulty modules, reducing downtime maintenance costs
