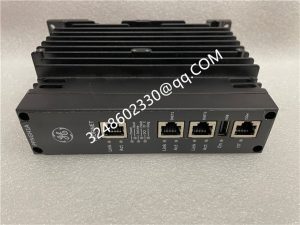

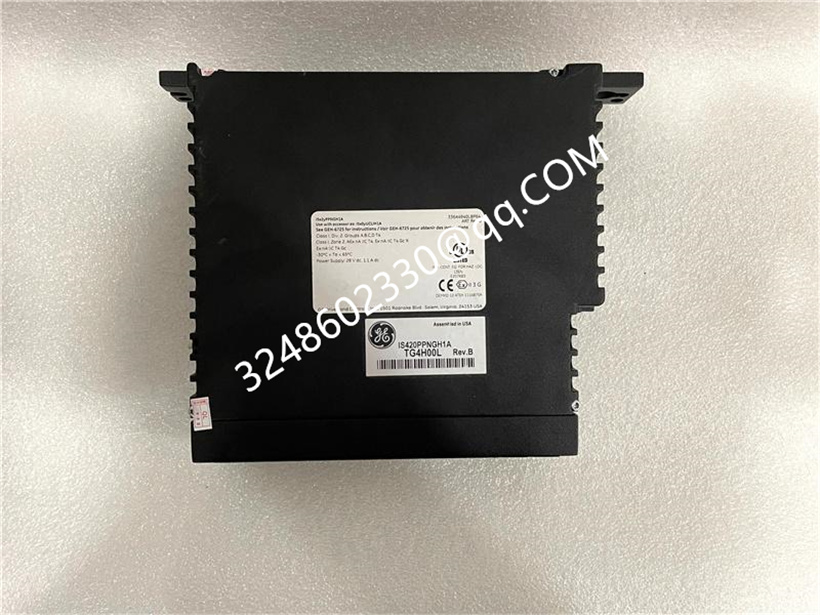

IS420UCSBH1A controller module in stock

IS420UCSBH1A is a UCSB (Universal Controller System Board) controller module developed by General Electric (GE). It is a core component of the GE Mark VIe Control Safety System series, designed specifically for executing control logic for specific applications.
The following is a detailed analysis of the controller module:

1. Core architecture and working principle
Independent computing capability: Unlike traditional controllers, UCSB controllers are independent computers that do not directly host or host any application I/O. All input data is directly connected to each controller, ensuring data integrity.
High reliability guarantee: If the controller loses power due to maintenance or repair, its hardware and software architecture ensures that no single point of application input is lost.
Real time synchronization mechanism: Adopting the IEEE 1588 protocol, the clock of I/O components and controllers is accurately synchronized to within 100 microseconds through R, S, and T IONets, meeting the high-precision control requirements of industrial grade.
Redundant configuration support: responsible for synchronizing status in dual systems; In a three module redundant (TMR) system, it is responsible for synchronizing voting information, status, and initialization data of designated controllers.
2. Key technical parameters
Microprocessor: Equipped with a 600 MHz Intel EP80579 processor.
Memory and Storage: Equipped with 256 MB DDR2 SDRAM (with ECC error correction code) and 2 GB NAND flash memory.
Operating System: Running the QNX Neutrino real-time multitasking operating system, pre installed with specific application software, capable of making minor changes to control software online without restarting the system.
Communication interface: Communicate with I/O components through the onboard IONet (a dedicated private Ethernet).
Power requirements: Rated power of 24V and 28V DC, minimum voltage of 18V DC, maximum voltage of 30V DC, maximum rated current of 1.5 ADC.

3. Hardware design and installation specifications
Compact modular design: adopting a single module design with built-in power supply. No battery, no fan, no need for jumper settings, occupying less panel space, and convenient flash updates.
Environmental adaptability: The working temperature range is wide, typically from -22 ° F to 149 ° F (approximately -30 ° C to+65 ° C).
Installation precautions: The controller can be directly installed on the metal plate of the panel. The key requirement is to ensure that the vertical airflow through the heat sink is not obstructed during installation to ensure good heat dissipation effect.
Compliance certification: Has UL E207685 certification for non hazardous locations, as well as ATEX Zone 2, IIC group explosion-proof certification.
4. Typical application scenarios
With its extremely high reliability and precise real-time control capability, IS420UCSBH1A is widely used in various demanding industrial fields:
Electric energy: Process and safety control of gas turbines, steam turbines, and wind turbines.
Petrochemical industry: Process control and emergency shutdown systems (ESD) for refineries, natural gas processing, and drilling platforms.
Rail Transit: Train Vehicle Management System, Monitoring and Passenger Information Broadcasting System (PIS).
