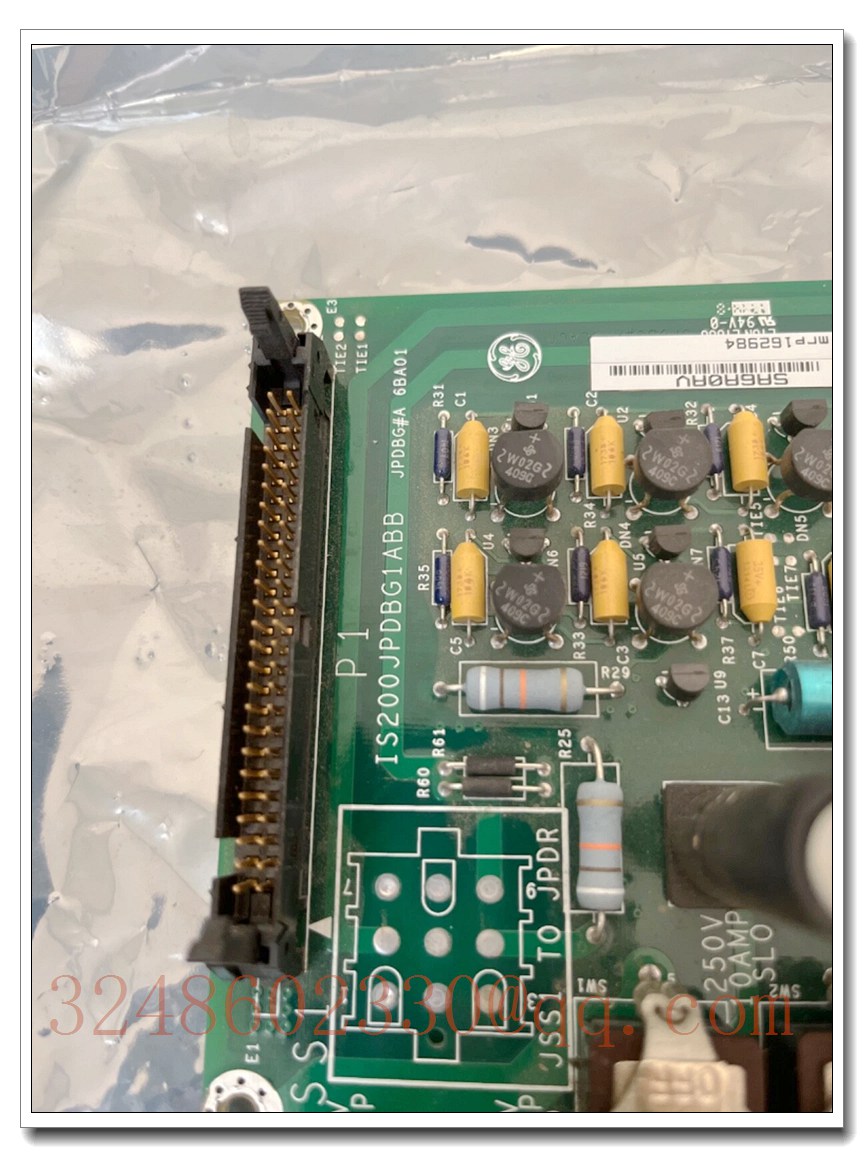

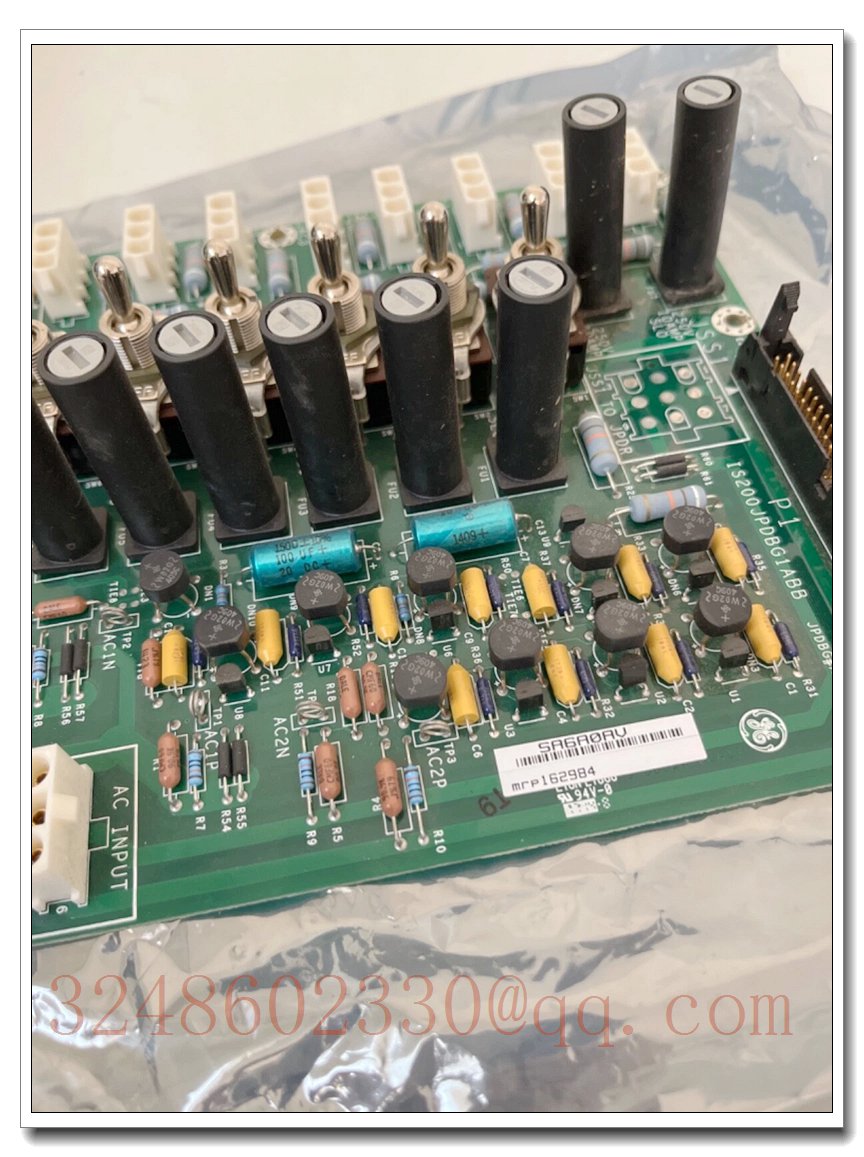

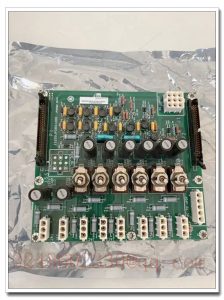

IS200JPDBG1A Industrial Control Module

Basic Product Information
Project Information
Brand General Electric/GE
Model IS200JPDBG1A
Series Mark VI/Speedtronic
Product Features: AC PDM Board/AC Power Distribution Module
Related series IS2020JPDB communication module
Origin: United States
Product status in stock (brand new/refurbished)

Main functions
Function Description
The power distribution provides 28VDC control power output for the AC module
Circuit monitoring is equipped with passive monitoring circuits for circuit status feedback and AC amplitude monitoring
Fused circuit feedback provides feedback on the status of the blown circuit through a circuit with fuses
Signal transmission is carried out through ribbon cable connectors for monitoring circuits and signal transmission
Industrial control for control and management systems of gas turbines and steam turbines

technical parameters

Parameter values/descriptions
Power supply voltage output 28V DC
Number of switches: 6 on/off toggle switches
Number of fuses: 8 fuses (6 of which are aligned with the switch)
Number of connectors: 10 plugs
Plug specifications: 8 three position plugs, 1 five position plug, 1 nine position plug
Connector type 2 ribbon cable connectors
Certification standards EN50178, IEC 529
Humidity requirement 5% to 95% non condensing environment
PCB Coating (Conformal Coating) Moisture proof Treatment

Composition of board structure
Component Description
Connector ports are connectors used to connect cables and devices
TP testing point, used for circuit testing and inspection
Electronic components such as resistors, transistors, capacitors, conductive sensors, etc
8 fuses for circuit protection
Details of plug connection
Source of plug number specification location
JAC1 to JAC6 3-pin plugs, 6 pieces
Other three plugs, three plugs, two plugs
AC to JPDF 5-position plug 1

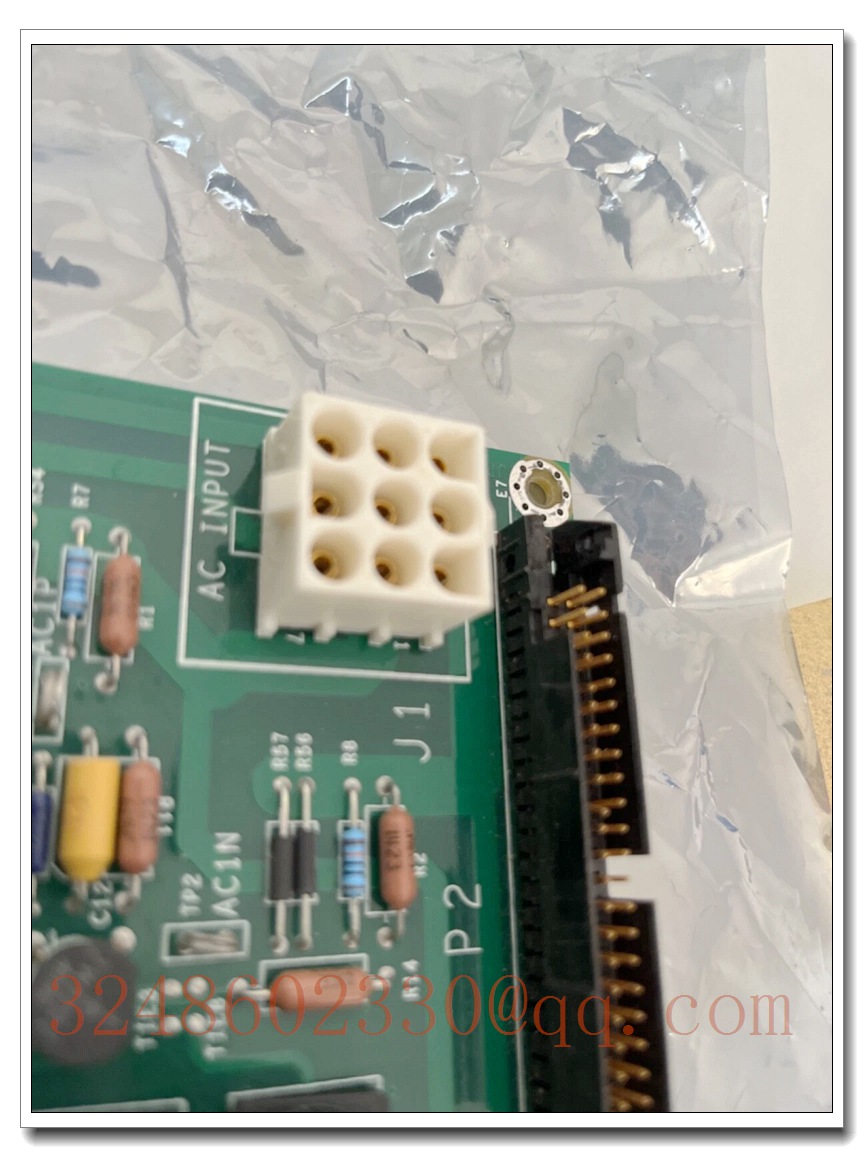

1 AC input 9-pin plug

Application scenarios
Specific Application Fields
Gas Turbine Control System for GE Frame Series Gas Turbine
Control and Protection System for Steam Turbine
Monitoring and Control of Power Plants and Generator Sets in the Power Generation Industry
Control system for petrochemical oil and gas processing plants
Control systems for industrial automation, CNC machinery, metallurgy, coal mining, food and other industries

System Architecture
Component Description
The power input enters the IS2020JPDB module through the IS200JPDBG1A board
Passive monitoring circuit design for status feedback and AC amplitude of all fuse circuits with monitoring function
System integration seamlessly integrates with the Mark VI series, supporting complex industrial processes

market information
Project Information
Product Status: New/Refurbished Supply
Delivery time can be quickly shipped, and some suppliers support same day shipping
Warranty service 24 months warranty (some suppliers)/12 months warranty
Repair service supports trade in and provides quick replacement services
Transportation services support express delivery such as DHL, FedEx, UPS, etc

Related models
Model relationship
IS200JPDDG1AAA same series DC distribution board module
IS2020JPDB communication module overall
IS200JPDBG1ABB variant model, with different descriptions of signal processing capabilities

Summary of Technical Advantages
High reliability design: using coating treatment, suitable for 5% -95% humidity environment
Complete monitoring function: passive monitoring circuit, real-time feedback of circuit status
Easy to integrate: seamlessly integrated with Mark VI system, easy to install and integrate
Reduce downtime: Designed for easy installation and integration, reducing downtime
Durability: Using high-quality materials and advanced manufacturing technology to ensure durability and long-term reliability
