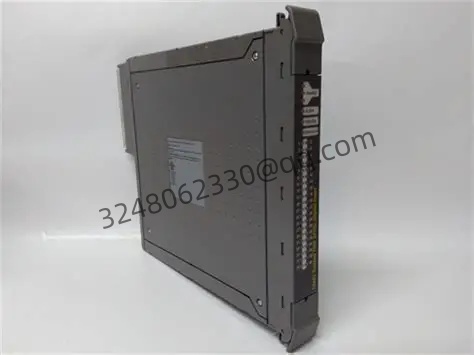

ICS TRIPLEX T8801 Digital Input Module

ICS TRIPLEX T8801 is a 40 channel 24V DC digital input (DI) FTA (field terminal assembly) designed specifically for ICS Trusted series safety control systems. It mainly serves as the core interface between field devices that generate digital signals and system digital input modules (such as T8403), and is widely used in industrial scenarios with extremely high safety requirements, such as oil and gas, fine chemicals, and large power stations.
The following is a detailed analysis of the module:

1. Core functions and hardware specifications
Signal processing and isolation: T8801 is defined as a “non flammable” field device specifically designed for hazardous areas, responsible for receiving 24V DC digital signals from the site and safely transmitting them to the control module.
Channel configuration: Provides 40 independent digital input channels to meet the needs of large-scale discrete signal acquisition.
Electrical protection design: When voltage signals are connected on site, each channel is protected by a 50mA fuse, effectively preventing external short circuits or overcurrent damage to internal circuits.
Status indicator: Equipped with an intuitive LED power indicator light (green) to help maintenance personnel quickly confirm the power supply and activation status of the module.
2. System level collaboration and security features
High compatibility: T8801 is usually used in conjunction with ICS Triplex’s T8403 (24V DC digital input module) to form a complete input circuit.
Fault tolerant architecture support: Under the triple modular redundancy (TMR) and two-thirds voting architecture of the Trusted system, this module can assist the system in detecting and isolating module level faults, preventing single point failures from spreading to the entire system output.
Hot swappable capability: Supports online hot swapping function. During the operation of the system, if a fault is diagnosed in the module, maintenance personnel can directly replace it without interrupting continuous production (it is recommended to replace it within 8 hours to maintain SIL level and production availability).

3. Typical application scenarios
Critical safety interlock: As the signal access terminal for emergency stop buttons, fire/gas alarms, and other safety equipment, it ensures the reliable transmission of critical instructions.
Equipment status monitoring: Real time collection of discrete signals such as valve switch positions, machine operating status, and conveyor belt positions on the production line, providing accurate data foundation for upper level logic operations.
💡 Operation and troubleshooting suggestions
When conducting on-site inspections or troubleshooting, the following points can be focused on:
LED status check: Regularly check whether the green power light on the front panel is on normally; If the red light flashes or goes out, it is necessary to check which chip or channel has malfunctioned in conjunction with the system software.
Fuse inspection: If a specific channel is found to have no signal input, after ruling out on-site sensor and wiring issues, the 50mA fuse of the corresponding channel should be checked for melting.
Cable connection: Confirm whether the connection between adjacent slot cables or smart slot cables is firm, to avoid false alarms caused by poor contact due to vibration.
