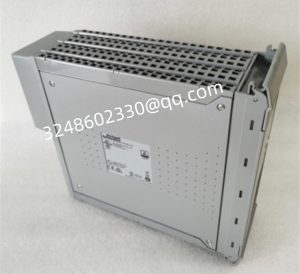

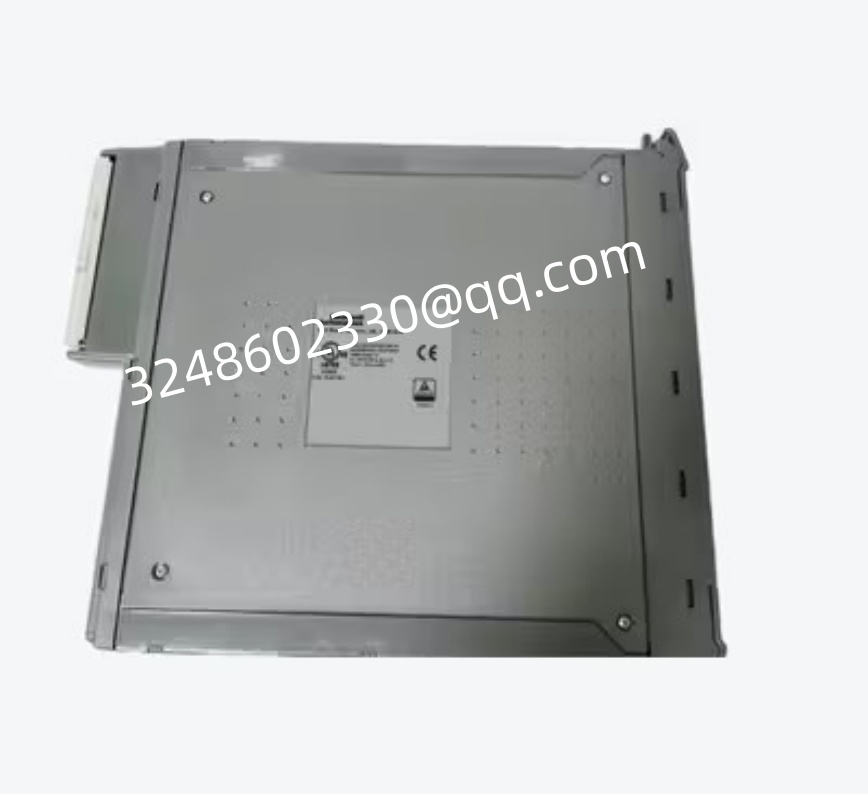

ICS Triplex T8300 Triple Modular Redundant Processor

ICS Triplex T8300 is a high-performance, high reliability redundant controller module designed specifically for industrial automation and safety control systems. It belongs to Trusted ™ The TMR (Triple Modular Redundancy) series is widely used in critical control scenarios that require extremely high safety.
The following is a detailed analysis of the processor module:

1. Core architecture and working principle
Triple Redundancy (TMR) design: Each channel contains three completely independent processors and execution units. This structure ensures that the system can still operate normally in the event of a single point of failure and meets the highest functional safety level requirements of SIL 4.
Hardware Fault Tolerant (HIFT): A fault-tolerant architecture implemented in hardware that provides fast fault identification and response mechanisms, with a fault switching time of ≤ 1 millisecond, ensuring control continuity.
Fault tolerant operation mode: Supports “3-2-0” fault tolerant operation, which means that the system can still maintain normal voting and control logic in the event of one or two failures.
2. High performance and scalability
High speed data processing: Using high-performance microprocessors and advanced algorithms, it can easily handle complex control logic and massive high-speed data operations.
Flexible rack expansion: T8300 serves as a Trusted Extended TMR rack with a modular design. Through dedicated expansion interface modules (such as T8311) and adapters (such as T8312), a single master station can be configured with up to 10 expansion racks (including remote racks), supporting up to 128 I/O modules and approximately 5000 I/O points.
3. Communication and interface specifications
Rich physical interfaces: The module provides multiple communication interfaces to adapt to different industrial field networks, including RS-232, RS-485, and Ethernet.
Multi channel concurrency: Taking communication modules of the same series as an example, multiple serial and Ethernet ports can be provided to facilitate remote monitoring, collaboration with other Trusted systems, and data transmission with third-party devices.

4. Typical application scenarios
Process safety and emergency shutdown: used to process signals from critical safety equipment such as fire alarm buttons and emergency stop buttons, ensuring rapid response under hazardous conditions and preventing accidents from escalating.
Harsh industrial environment: With a wide operating temperature range of -40 ° C to+85 ° C, it is extremely suitable for harsh and critical industrial fields such as oil and gas, fine chemicals, energy production, aerospace, etc.
Real time device monitoring: Connect various sensors and actuators to monitor the status of production line equipment in real time (such as machine operation, conveyor position, valve switches, etc.), achieving data acquisition and closed-loop control.
