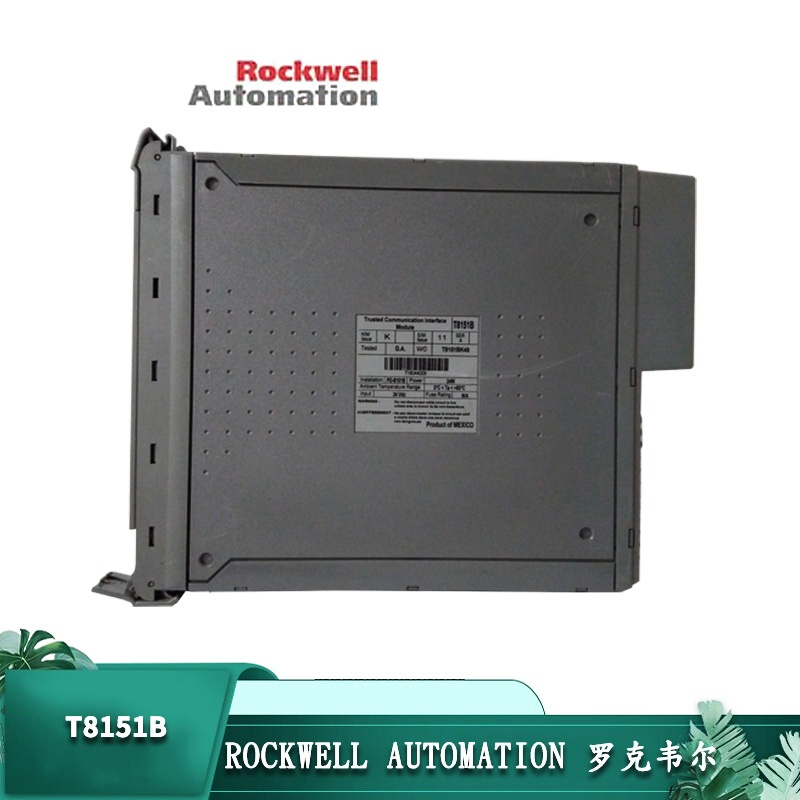

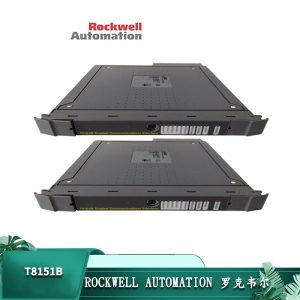

ICS TRIPLEX T815B Communication Interface Module

ICS TRIPLEX T815B is a product designed specifically for ICS Trusted ™ A high-performance communication interface module (CI) designed for a series of safety control systems. It plays the role of a “communication hub” in the entire system, ensuring the secure and reliable transmission of data in industrial control systems by providing multiple physical interfaces and protocol support.
The following is a detailed analysis of the communication interface module:

1. Core functions and hardware specifications
Reduce the main control load: As an intelligent module, T8151B provides a series of communication services for the Trusted Controller. Its core advantage is that it can minimize the communication load of the three module redundant (TMR) processor, so that the main processor can focus on the core control logic.
Rich physical interfaces: This module is equipped with a powerful communication port array, including dual Ethernet ports (2 100M Ethernet connections), four serial ports (4 RS422/485 connections and 2 RS232 connections), and a front panel serial diagnostic port.
Status monitoring and indication: The front panel is equipped with fault and status indicator lights, which facilitate on-site maintenance personnel to intuitively judge the operation status of the module.
2. System level collaboration and security features
Multi device interconnection bridge: This module allows seamless communication between the system and other trusted systems, engineer stations, and various third-party devices, and is a key node in building a distributed control network.
Flexible protocol support: Supports a wide range of communication protocols and can operate as a Modbus slave; If paired with T812X trusted processor interface adapter, it can also be used as a Modbus master station. In addition, optional sequence of events (SOE) recording is also supported on Modbus.
Highly configurable: T815B is a user configurable module that can support up to four such communication interfaces (CI) per trusted system to meet application requirements of different scales and complexities.

3. Typical application scenarios
With its high reliability and multiple communication capabilities, T8151B is widely used in heavy industry fields that require extremely high security and continuity, mainly including:
Industrial automation system: used for data collection and equipment coordination in large-scale production lines.
Oil and gas industry: Ensure real-time interaction of critical data in process control and emergency shutdown systems (ESD) during oil and gas extraction and refining processes.
Power generation and energy production: used for monitoring and data acquisition (SCADA) systems in power plants and other facilities to ensure the safe and stable operation of generator sets.
