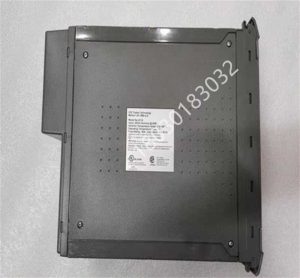

ICS TRIPLEX T810B Digital Input Module

The ICS TRIPLEX T810B is actually a TMR (Triple Modular Redundancy) processor module, not a digital input module. It is equivalent to the entire ICS Trusted ™ The ‘brain’ of the security control system is responsible for executing core logical operations, data processing, and system voting.
If you are looking for digital input modules in this series, the corresponding models are usually T8403 (40 channel 24VDC digital input module) or T8461C.
The following is a detailed analysis of the T810B TMR processor module:

1. Core architecture and working principle
The third mock examination Redundancy (TMR) design: T8110B adopts fault tolerance architecture based on lockstep configuration, and contains three completely independent processor fault containment regions (FCR). Each region is equipped with Motorola Power PC series processors and their related memory.
Hardware level anti divergence mechanism: To ensure absolute data consistency, each processor FCR will perform two-thirds (2/3) of read access to the storage systems of the other two processors, completely eliminating the possibility of divergence operations.
Comprehensive diagnosis and testing: With a fault-tolerant HIFT TMR structure, it can comprehensively diagnose, monitor, and test the system, and provide fast fault recognition capabilities.
2. Status indication and physical interface
LED status monitoring: The front panel is equipped with intuitive status and diagnostic LED indicators. For example, keeping the “health light” green indicates that the chip is running normally, and flashing red indicates that the chip has malfunctioned.
Physical interaction components: The panel is equipped with a security key switch, reset switch, and serial communication interface, which facilitates engineers to manage permissions, reset the system, and debug locally on site.

3. System level collaboration and application scenarios
Rack Installation Specification: In a standard controller framework (such as T8100), typically two three slot wide processor modules (primary and backup configurations) can be installed, with the remaining slots used for expanding interface modules, communication modules, or various I/O modules.
Key industrial applications: As the core of Safety Instrumented Systems (SIS), it is widely used in fields such as oil and gas, chemical, and energy. It can receive massive signals from on-site sensors and perform logic control with high safety requirements such as emergency shutdown (ESD) and fire and gas systems.
