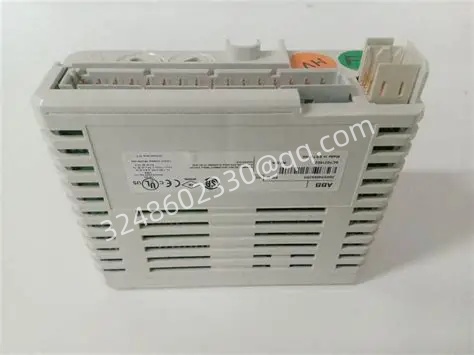

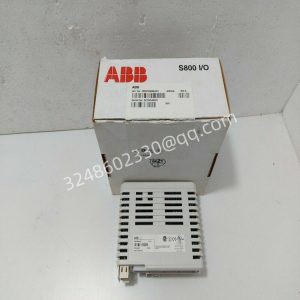

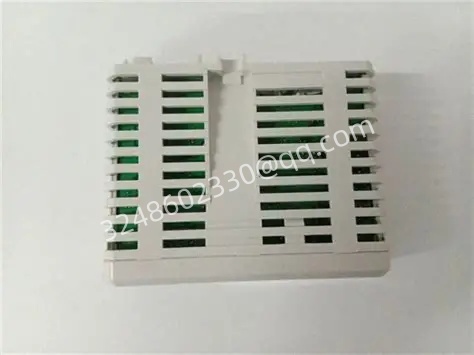

ABB AI830A Analog Input Module (3BSE040662R1)

Core Overview
ABB AI830A is a high-performance analog input module in the ABB Advant Controller 800 series (also known as the 800xA system). This module is designed specifically for temperature measurement and process variable monitoring in industrial automation, supporting multiple signal inputs (voltage, current, thermistor), and is widely used in fields such as petrochemicals, power generation, electricity, and manufacturing.

Key technical parameters
Parameter Description
8 channels (configurable as RTD input or voltage/current input)
Support signal RTD (resistance input): Supports thermal resistance sensors such as Pt100, Cu10, Ni100, Ni120, etc;
Voltage/Current: Supports analog signals such as ± 10V, ± 20mA, 4-20mA, etc
Resolution of 14 bits (some sources mention 16 bits, depending on the configuration)
The accuracy full-scale error is usually ± 0.1% (high-precision measurement)
Update rate of 10 milliseconds (per channel)
Power supply 24V DC, with electrical isolation function
Working temperature -40 ° C to+70 ° C (industrial grade temperature range)
Protection level IP20 (only applicable to rack environments installed inside control cabinets)
Main features and advantages
High precision temperature measurement:
Specially designed for RTD (Thermistor) measurement, with built-in linearization algorithm and Celsius/Fahrenheit conversion function, it can directly output temperature values, eliminating external processing steps.
Multi functional input:
Although primarily used for measuring resistance thermometers (RTDs), it also supports voltage and current signal inputs (such as 4-20mA current loops), providing great flexibility.
Fault diagnosis:
Equipped with open circuit, short circuit, and input grounding monitoring functions, it can detect the integrity of sensor wiring in real time, ensuring the reliability of measurement data.
Anti interference design:
Support 50Hz/60Hz notch filtering, effectively suppressing the interference of power grid noise on signals.
Typical application scenarios
Process industry: Temperature monitoring and control in industries such as chemical, petroleum, and natural gas.
Energy and Electricity: Monitoring the operating parameters of key facilities such as power plants and substations.
Manufacturing and Machinery: Equipment Status Monitoring, Process Variable Collection in Automation Control Systems.
Summary: ABB AI830A is an analog input module with high integration, high measurement accuracy, and strong anti-interference ability, especially suitable for industrial automation scenarios that require high reliability temperature measurement.
