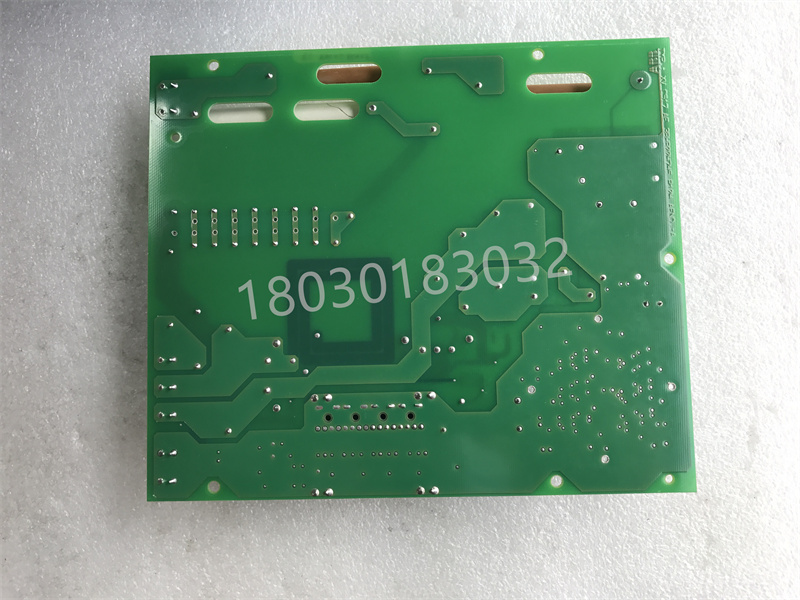

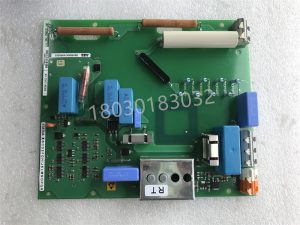

ABB XVC517AE10 3BHB004744R0010- Door Drive Unit Module

ABB XVC517AE10 3BHB004744R0010- Door Drive Unit Module
Brand: ABB (Sweden)
Series: XVC517 Series (XV C517)
Positioning: Gate Drive Unit, used to drive IGBT/GTO power devices in ABB frequency converters

core parameters
Project specifications
Part number 3BHB004744R0010
Model XVC517AE10
IGBT/GTO gate driver function
Drive voltage 240 VDC (there are also related versions for wide voltage input of 18-32 VDC)
The maximum driving current is about 20A level (strong driving capability)
Working temperature -10 ° C to+40 ° C
Storage temperature -20 ° C to+60 ° C
Protection level IP20
Size approximately 480 × 240 × 180 mm
Weight approximately 15 kg
Suitable for ABB ACS800/ACS6000/ACS4000 frequency converters and other series
Key Features
Characteristic Description
High precision drive ensures precise timing of IGBT/GTO switches and reduces switching losses
Fast response nanosecond level switching speed, supporting high-frequency PWM modulation
High reliability industrial grade design, suitable for continuous full load operation
Fault protection with built-in overcurrent, short circuit, and undervoltage protection, automatically blocking in case of abnormal driving
Modular and directly replaceable, reducing maintenance downtime
Redundant compatible partial frequency converter system supports dual door drive redundant switching
Industry Applications
Typical scenarios in the field
🏭 Industrial transmission ACS800/ACS6000 frequency converter drive motor
⚡ Variable frequency speed regulation of auxiliary equipment, fans, and pumps in power plants
🛢️ Variable frequency drive for high-power petrochemical pumps and compressors
🏗️ Large scale fans/pumps for building HVAC systems
&Mining belt conveyor, ball mill high-voltage variable frequency
Related models (XVC517 series)
Model and Part Number Description
XVC517AE10 3BHB004744R0010 This model (standard door drive)
XVC517AE01 3BHB004743R0010 Early version
XVC517BE10 3BHB004745R0010 Enhanced Type
XVC513AE10 3BHB004738R0010 low-power version
XVC519AE10 3BHB004746R0010 high-power version
PP875 3BHB004744R0010 (different systems) The same part number has different uses in different systems
