ABB PP875 3BSE069270R2- Panel 800 v6 Standard Operating Panel

ABB PP875 3BSE069270R2- Panel 800 v6 Standard Operating Panel
Brand: ABB (now part of Schneider Electric Group)
Series: Panel 800 Version 6/P800 Series
Positioning: 7-inch standard touch screen HMI for human-machine interaction of ABB Advant-800XA DCS system

core parameters
Project specifications
Display screen 7 “TFT-LCD, 64K colors, LED backlight
Resolution 800 × 480 (16:9)
Brightness 350 cd/m ²
Viewing angle 140 °/115 ° (H/V)
Touch method: resistive touch, with a lifespan of 1 million clicks
Processor ARM9400 MHz
Main memory 128 MB DDR2
Application memory 80 MB
External storage 1 x SD card slot (supports SDHC)
Real time clock has

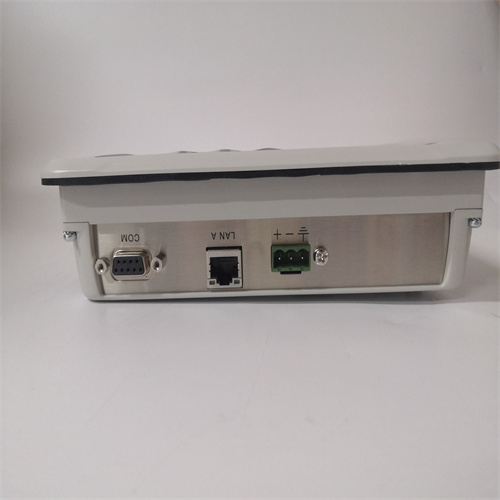

Ethernet 1 × 10/100 Base-T (shielded RJ45)
USB 1 x USB 2.0, maximum 200 mA
Serial port 2 x RS232+2 x RS422/485 (combination port)
Power supply+24 VDC (18-32 VDC wide voltage input)
Power consumption 3.6 W
Protection level: IP65/IP20 on the front and IP20 on the back
Working temperature -10 ° C to+60 ° C
Storage temperature -20 ° C to+70 ° C
Humidity 5% to 85% non condensing
Installation method: Panel installation+VESA 75 × 75
Dimensions (W × H × D) 204 × 143 × 49 mm
Hole size (W × H) 187 × 126 mm
Net weight 0.8 kg
Certification CE, UL508, DNV
⚠️ Note: 3BSE069270R2 is the standard 7 “touchscreen version; there are also variants such as PP875K (button version, 3BSE069273R1) in the same series.

Key Features
Characteristic Description
Configuration software Panel Builder 800 v6, supports open architecture
Multi protocol support can dynamically download I/O drivers through protocol libraries, compatible with Modbus, Profibus, etc
SD card extension supports SDHC for easy program backup and upgrade
High reliability industrial grade design, suitable for long-term continuous operation
DCS deep integration seamlessly integrates with ABB Advant-800XA system
Industry Applications
Typical scenarios in the field
🛢️ Petrochemical process monitoring, parameter adjustment, alarm management
⚡ Power generator/transformer status monitoring, SCADA integration
🏭 Manufacturing production line equipment operation and real-time monitoring
💊 Pharmaceutical batch processing process control, GMP data collection
🏗️ Building automation HVAC and lighting system integration
Related models (Panel 800 v6 series)
Model and Part Number Screen Instructions
PP871 3BSE069270R1 4.3 “TFT 480 × 272 standard touch screen
PP874 3BSE069271R1 7 “TFT 800 × 480 standard touch screen
PP875 3BSE069270R2 7 “TFT 800 × 480 (standard touch screen)
PP877 3BSE069272R1 10.4 “TFT 640 × 480 standard touch screen
PP874K 3BSE069273R1 7 “button version (non touch)
PP877K 3BSE069274R1 10.4 “key version
PP875H 3BSE092983R1 7 “High Brightness Black High Brightness Edition
PP875M 3BSE092982R1 7 “Black Edition
PP882 3BSE069275R1 12.1 “TFT 1280 × 800 High Performance Panel
PP885 3BSE069276R1 15.4 “High Performance Panel
PP886 3BSE069297R1 15 “High Performance Panel
PP895 3BSE092981R1 21 “large screen panel

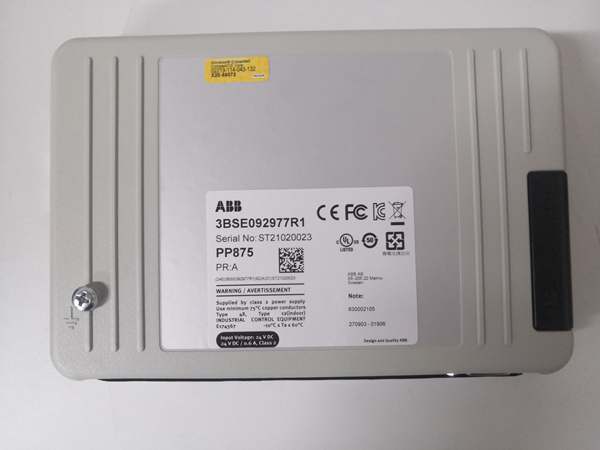

PP875 3BSE092977R1 is another firmware/configuration version of the same panel, with similar functionality. Please pay attention to distinguishing the part numbers.
