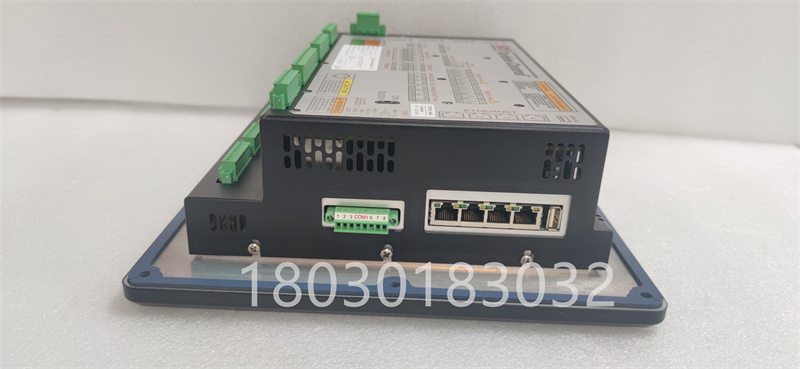

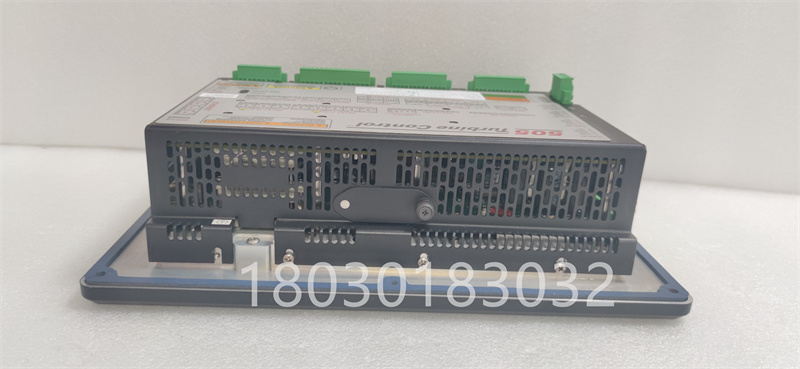

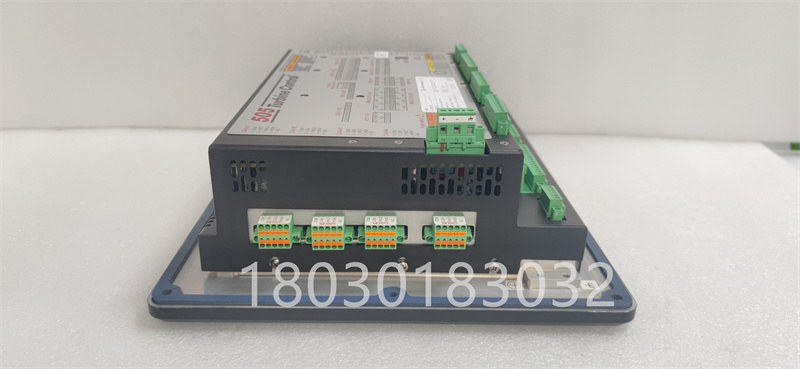

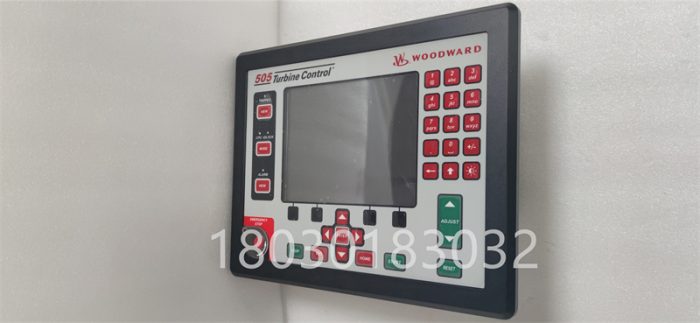

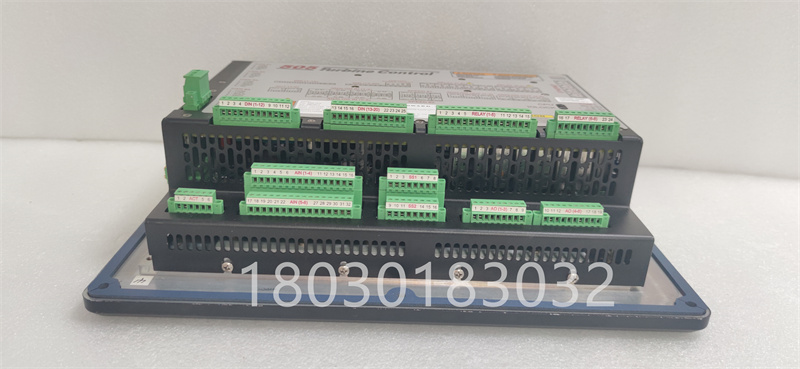

Woodward 8200-1312 Speed Control Controller

WOODWARD 8200-1312 Speed Control Controller

Product Overview:
WOODWARD 8200-1312 is a high-performance digital speed controller belonging to the WOODWARD 8200 series. This controller is designed specifically for industrial automation and process control, capable of achieving high-precision speed and power control, and is widely used in equipment such as steam turbines, gas turbines, hydraulic systems, etc.

Main features and advantages
High precision control: Supports a speed control accuracy of ± 0.1% to ensure precise control of industrial processes.
Powerful communication capability: equipped with RS485 communication interface, supports Modbus protocol, and can seamlessly integrate with DCS, PLC and other systems.
Wide operating temperature range: capable of stable operation within a temperature range of -40 ° C to 85 ° C.
High protection level: IP65 protection level, suitable for harsh industrial environments.
Modular design: easy to install, maintain, and expand, reducing maintenance costs.
Integrated HMI screen: supports multilingual display (including Chinese), facilitating real-time monitoring and diagnosis by operators.

technical specifications

Product Model WOODWARD 8200-1312
Input voltage 24 VDC
Output voltage 0~10 VDC
Output current 2A
Communication interface RS485
Working temperature range -40 ° C to 85 ° C
Protection level IP65
Size 220mm x 210mm x 75mm
Weight 10KG
Control accuracy ± 0.1%

Application scenarios
Industrial automation: used for precision control of CNC machine tools, automated production lines, hydraulic presses, and other equipment.
Energy and Power Generation: Used for hydraulic systems and turbine speed control systems in power plants to ensure power generation efficiency and stability.
Petrochemical industry: used for steam turbine control in the oil and gas industry.
Transportation industry: used for braking and control systems in automobiles, railways, and ships.
Aerospace: Used for controlling flight control surfaces, landing gear, and engine hydraulic systems.

Related products
WOODWARD 505XT: A digital governor for steam turbines, suitable for single or double actuator turbines.
WOODWARD 8200-1300: Low voltage DC version, suitable for standard industrial environments.
WOODWARD 8200-1301: Supports AC/DC and is suitable for a wider voltage range.
WOODWARD 8200-1302: Marine/ATEX compliant version, suitable for special environments.
The WOODWARD 8200-1312 speed controller, with its high-precision control, powerful communication capabilities, and modular design, has become an ideal choice in the fields of industrial automation and process control.
