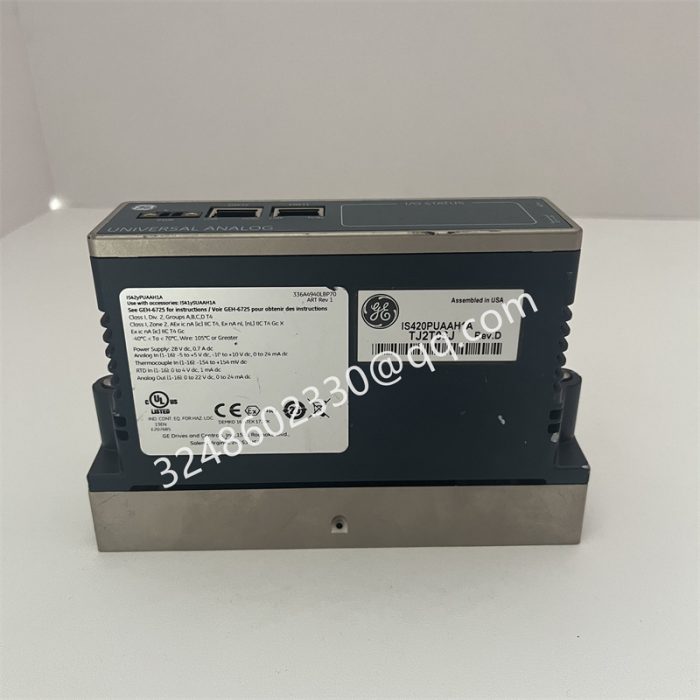

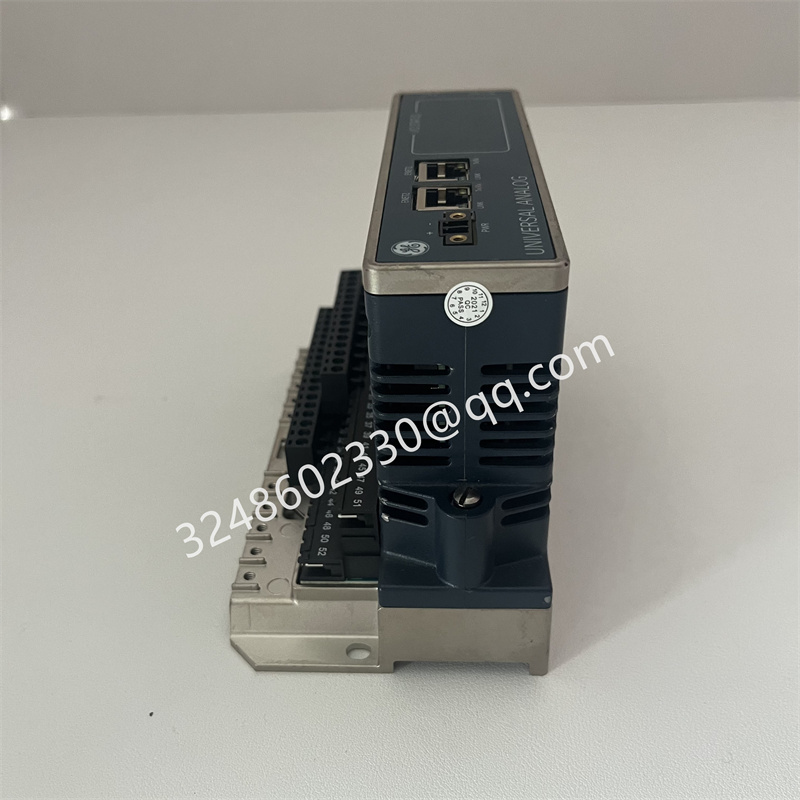

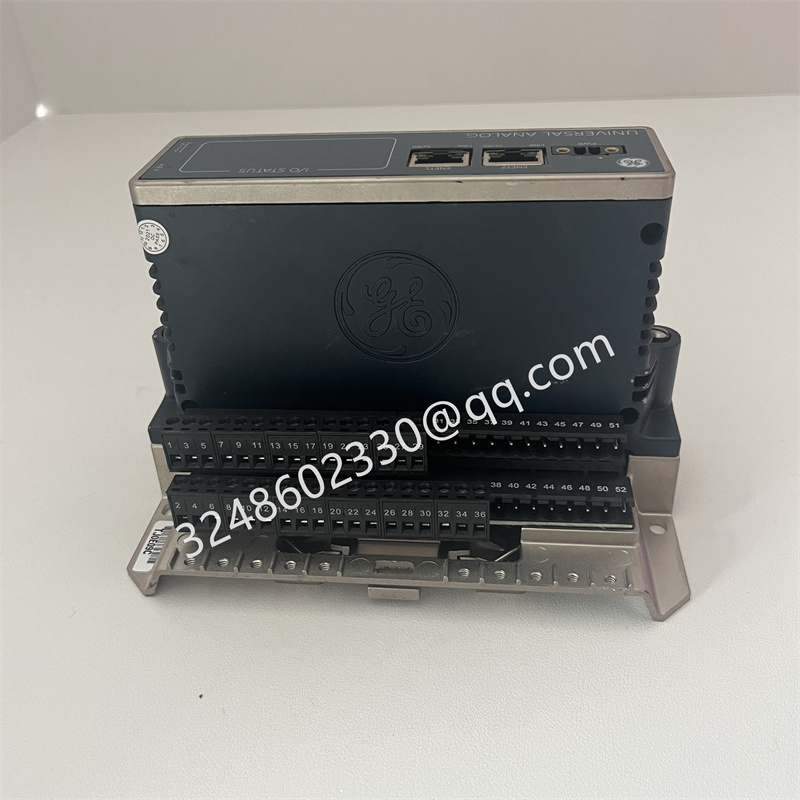

IS420PUAAH1A controller module

Integrated Introduction to IS420PUAAH1A Controller Module
1、 Product positioning and core functions
Industrial automation core control module
IS420PUAAH1A is a universal input/output (I/O) module designed by General Electric (GE) for Mark VIe control systems, focusing on the fields of industrial automation and process control.

Multi channel signal processing: Supports 16 configurable analog simplex channels, each channel can be independently configured as thermocouple, RTD (thermistor), 4-20mA current input/output, 0-20mA current output, digital input/output, pulse accumulator, and other types to meet the diverse needs of complex industrial scenarios.
High precision and real-time response: Measurement accuracy is better than 0.1%, normal scanning time is 5ms, frame rate is 10ms, ensuring accurate acquisition and fast response to industrial signals.
Environmental adaptability: Operating temperature range of -40 ℃ to 70 ℃ (some versions extend to -50 ℃ to 100 ℃), relative humidity of 5% -95% (non condensing), with anti vibration and dust-proof capabilities, suitable for harsh environments such as power, chemical, metallurgy, etc.
2、 Technical parameters and specifications
Detailed specifications of parameter categories
Brand and Model: GE IS420PUAAH1A
Channel configuration includes 16 simplex simulation channels, with 3 terminals per channel, supporting independent configuration
Communication capability with dual Ethernet (IONet) interface, supporting RJ-45 Ethernet ports, compatible with ControlST V7.02.00C and above versions
Accuracy and speed measurement accuracy better than 0.1%, frame rate 10ms, normal scanning time 5ms
Environmental adaptability temperature -40 ℃ to 70 ℃, humidity 5% -95% (non condensing), anti vibration level in accordance with IEC 60068-2-6
Power consumption: Static power consumption of 8.1W, power consumption per channel of 0.02W (TC/RTD mode) to 0.68W (mA output mode)
Installation method: Standard DIN rail installation, supports hot swappable replacement
Certification and standards such as CE, UL, IEC 60079-11 (hazardous area certification), etc
3、 Application industries and scenarios
Electricity and Energy Management
Gas turbine/steam turbine control: Real time monitoring of temperature, pressure, vibration and other parameters to achieve safe start stop and load regulation.
Grid frequency regulation: Maintain grid stability by quickly responding to control output.
Case: After adopting the IS420PUAAH1A module in a power plant, the failure rate of key equipment decreased by 30% and maintenance costs decreased by 20%.
Manufacturing and Production Line Automation
Process optimization: Real time collection of temperature, flow rate and other data in continuous production industries such as steel and chemical, optimizing process parameters and improving product quality.
Equipment collaborative control: Through multi-channel synchronous control, efficient collaboration of production line equipment is achieved.
Case: A chemical plant used this module to integrate equipment from different brands, resulting in a 40% increase in data integration efficiency.
Water treatment and environmental monitoring
Wastewater treatment: Monitor parameters such as pH value and dissolved oxygen, automatically adjust dosage and aeration time.
Environmental monitoring: Real time monitoring of harmful gas concentration and ventilation status in mining, tunnel and other scenarios.
4、 Technical features and advantages
High reliability design
Redundancy support: Supports simplex redundancy configuration to ensure uninterrupted transmission of critical signals.
Self diagnostic function: Real time monitoring of module status, with an accuracy rate of 99% for fault warning.
Flexibility and Scalability
Modular architecture: expandable I/O points, supports hot swappable replacement, and does not require downtime maintenance.
Protocol compatibility: Seamless integration with PLC, DCS, SIS and other systems to reduce integration costs.
safety
Data encryption: Supports AES-128 encrypted communication to prevent data tampering.
Hazardous Area Certification: Compliant with Ex ia/Ex ib/Ex ic IEC 60079-11 standards, suitable for explosive environments.
