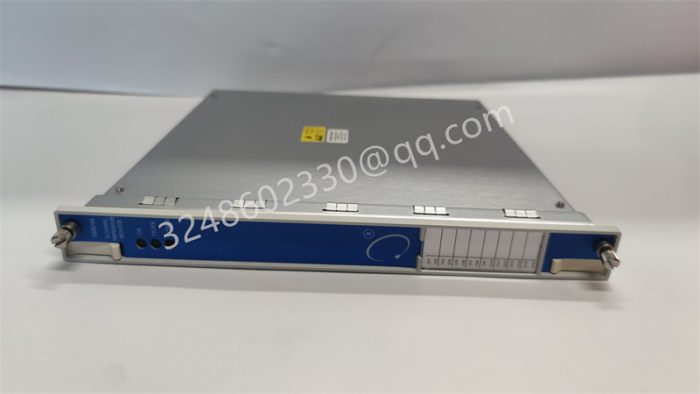

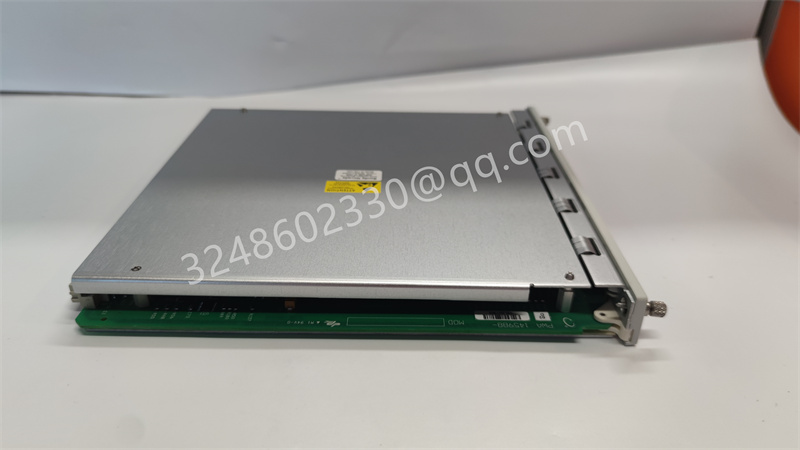

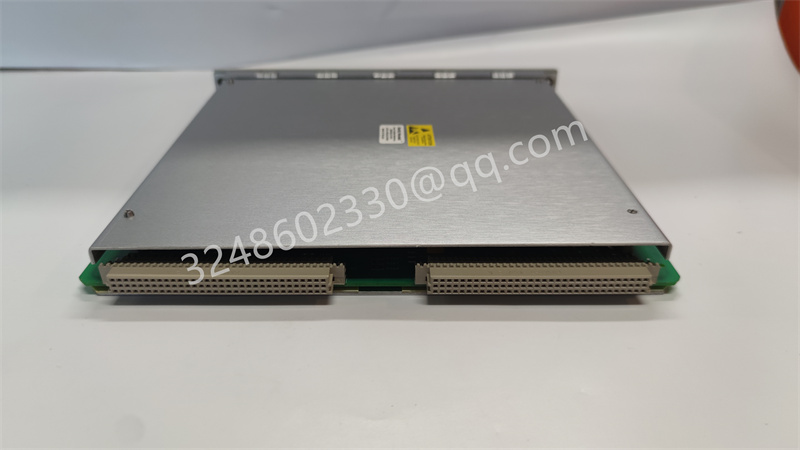

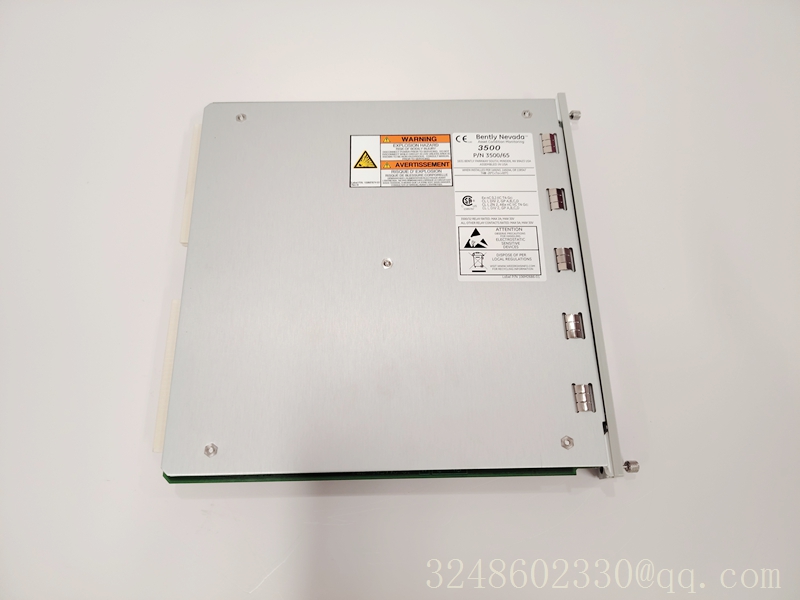

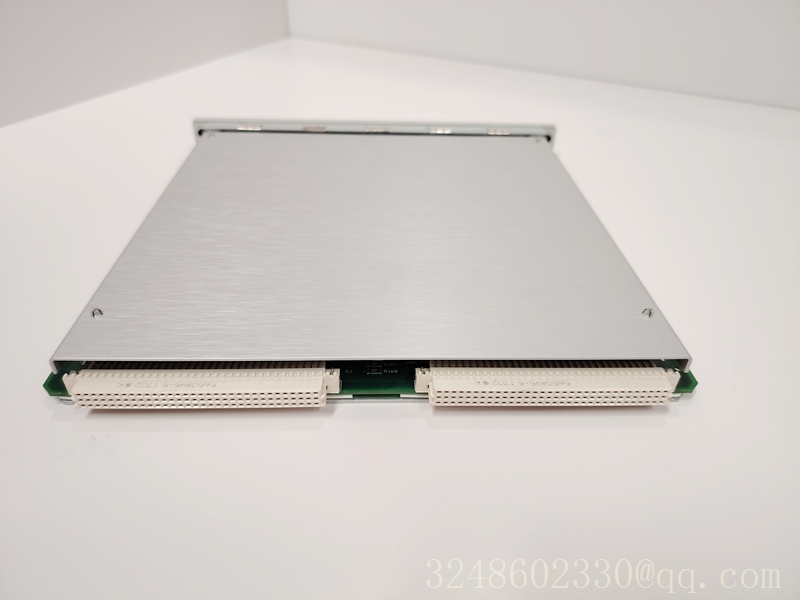

Bentley 3500/65-01-00 card components 145988-02 and 172103-01 modules

Bently Nevada 3500/65-01-00 and 172103-01 modules

product overview
Bently Nevada 3500/65-01-00 and 172103-01 are high-performance temperature monitoring modules used in industrial automation and

process control. These modules are capable of accurately monitoring and processing temperature signals from resistance temperature detectors (RTDs) and isolated tip thermocouples (TCs).

technical specifications
Module models: 3500/65-01-00 and 172103-01.
Number of channels: 16 channels.
Input type: Supports resistance temperature detectors (RTDs) and isolated tip thermocouples (TCs).
Alarm function: Users can program alarm setpoints to drive alarm and relay logic.
Communication Protocol: Supports multiple communication protocols, including Modbus TCP/IP and serial communication (RS232/RS422/RS485).
Size: 16 cm x 16 cm.
Weight: 0.1 kg.
Working temperature range: -20 ° C to+60 ° C.

Functional Features
High precision temperature monitoring: capable of accurately monitoring temperature or temperature differences.
Multiple input options: Supports multiple types of temperature sensor inputs.
User programmable: Use 3500 framework configuration software for programming.
Alarm and Relay Logic: Used in conjunction with the 3500 Relay Module to provide alarm and relay logic.
External terminal block: Optional external terminal block (such as 172115-01).

application area
Industrial automation: used for monitoring and controlling temperature in industrial processes.
Energy management: used for temperature monitoring of power systems such as power plants and substations.
Manufacturing industry: used for temperature monitoring and control on production lines.
Oil and gas: used to monitor the temperature during the production process of oil and gas.
Chemical industry: used for monitoring and controlling temperature during chemical reaction processes.
precautions
Firmware upgrade: When replacing old modules with newer I/O modules, it is necessary to upgrade the firmware of the monitor to the latest version.
Installation environment: Ensure that the installation environment meets the working temperature and humidity requirements of the module.
