ACS6000 system phase module S-073N 3BHB009884R5211

ABB ACS6000 system phase module S-073N 3BHB009884R5211

product overview

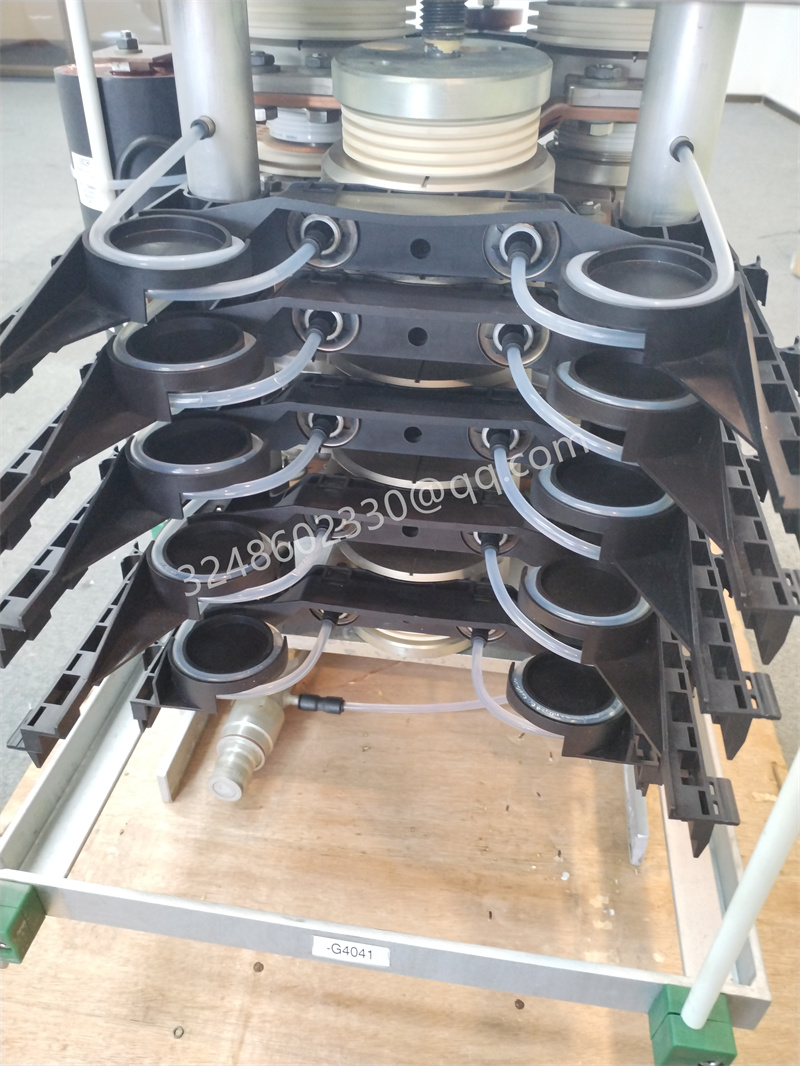

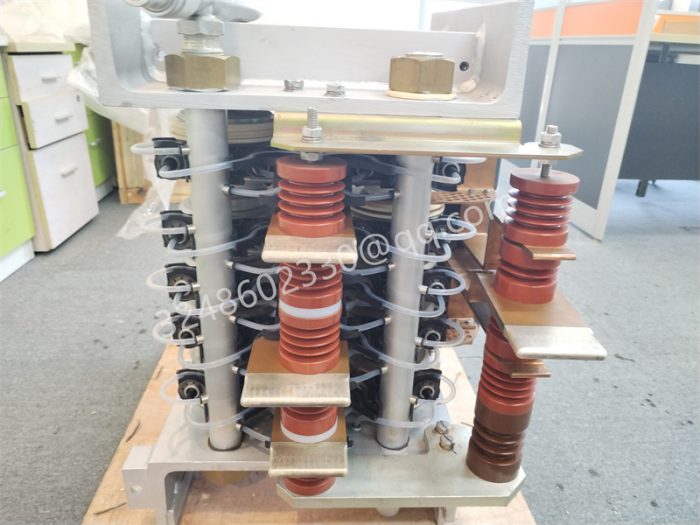

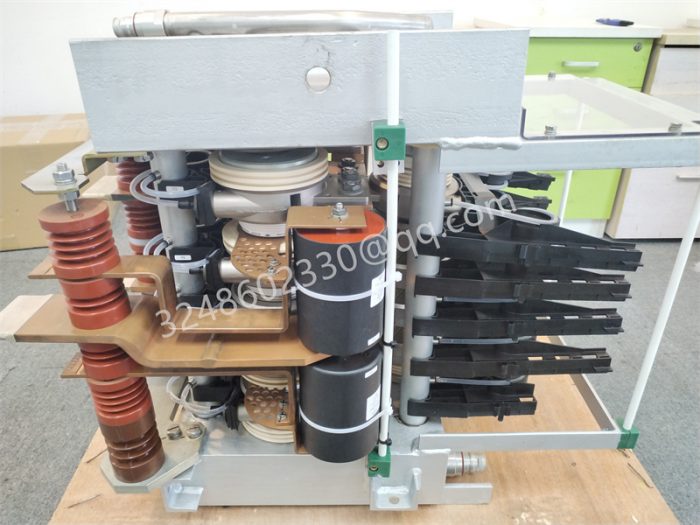

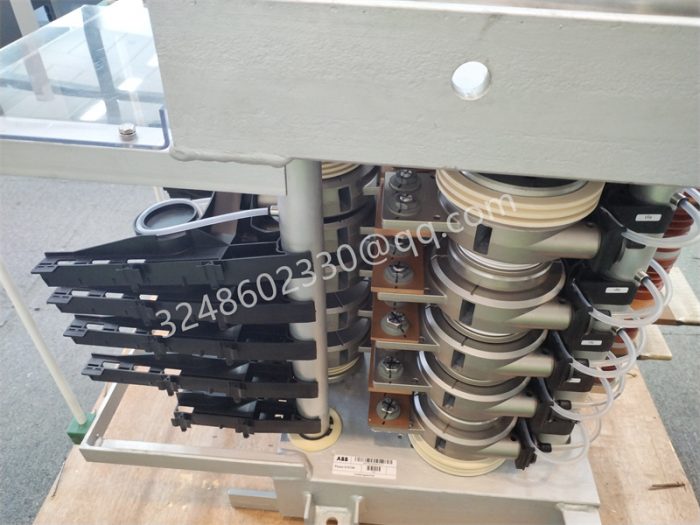

ABB S-073N 3BHB009884R5211 is a high-performance phase module belonging to the ABB ACS6000 series medium voltage frequency converter system.

This module is a key component of the frequency converter power unit, responsible for controlling the power output of the motor.

technical specifications

Input voltage 175 to 264 Vac rms
Input frequency 47 to 63 Hz
Output power suitable for 3500 series modules
Working temperature range -30 ° C to+65 ° C
Storage temperature range -40 ° C to+85 ° C
Humidity 95%, non condensing
Dimensions 120.7 mm x 25.4 mm x 114.3 mm (4.75 in x 1.0 in x 4.5 in)
Weight approximately 0.34 kg (0.75 lb)
Internal fuse 250V/6.5A SB

Main features and advantages
High reliability: Adopting industrial grade design, it can operate stably in harsh environments, ensuring high availability of the system.
Redundancy support: Supports power redundancy configuration within a 3500 rack, enhancing system availability and fault tolerance.
High voltage compatibility: designed specifically for handling high voltage AC inputs, without the need for additional external step-down transformers, simplifying system integration.
Built in protection and sturdy design: The internal integrated fuse can provide protection in case of overvoltage, adopting an industrial grade sturdy structure to adapt to harsh industrial environments.

application area
Power industry: used for automation control of power plants and substations to ensure the stable operation of the power system.
Manufacturing: Used in automated production lines to control robots, conveyors, and other equipment to improve production efficiency.
Chemical industry: used for monitoring and controlling key parameters such as temperature and pressure in chemical production processes.
Water treatment: used for automated control in water treatment plants to ensure water quality meets standards.
Intelligent Building: Used for the automation control of HVAC systems, lighting systems, and other components in buildings.

Related products
ABB S-076N 3BHB009884R0021: Belonging to the ABB high-voltage variable frequency phase module series, it may differ from S-073N 3BHB009884R5211 in terms of functional details, performance parameters, or applicable scenarios. Users can choose a more suitable module according to specific project requirements.
ABB ACS6000 series high-voltage frequency converter: S-073N 3BHB009884R5211 can be used in conjunction with this series of high-voltage frequency converters to jointly build a complete high-voltage frequency conversion control system, leveraging the precise phase control advantages of S-073N 3BHB009884R5211 and improving the overall performance of the system.
