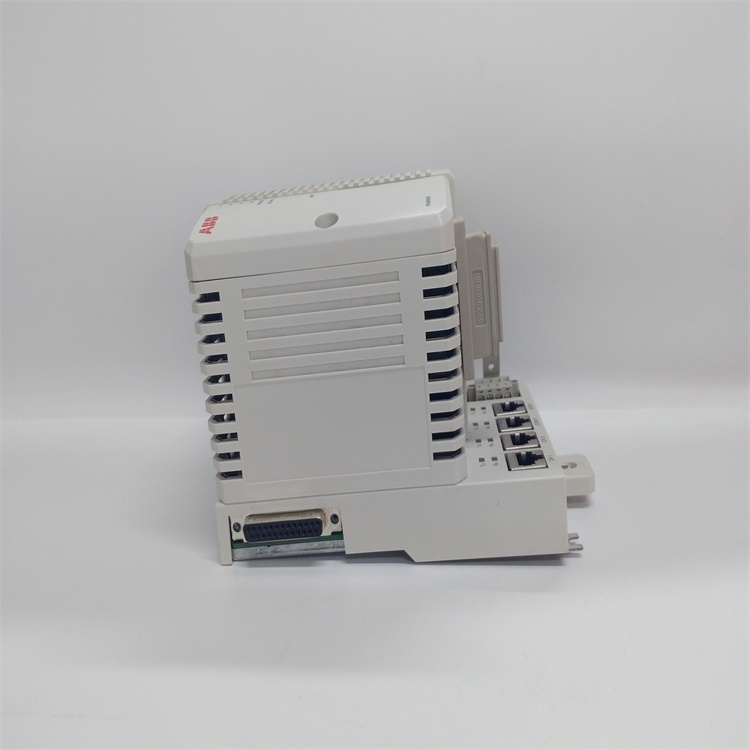

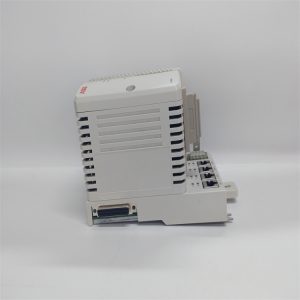

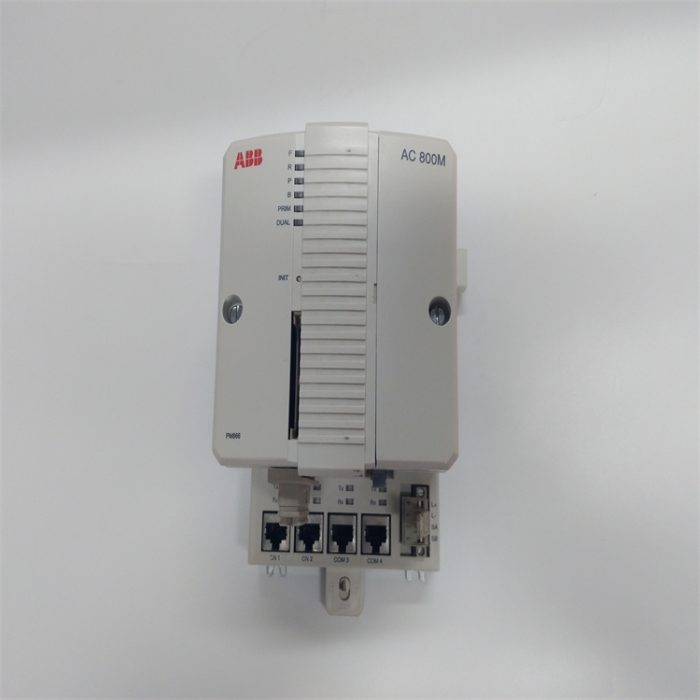

ABB PM865K02 CPU Controller Module

ABB PM865K02 CPU Controller Module

product overview
ABB PM865K02 is a high-performance CPU controller module belonging to the ABB AC800M series, designed specifically for industrial automation and process control. It has powerful processing capabilities, rich communication interfaces, and high reliability, which can meet the needs of complex industrial scenarios.
main features
High performance processor: Equipped with an industrial grade Cortex-A8 720MHz embedded processor (or 32-bit RISC processor), equipped with 512MB DDR2 RAM and 1GB Flash storage.
Redundancy design: Supports CPU redundancy. In the event of a main processor failure, the backup processor can immediately take over to ensure continuous system operation.
Multiple communication interfaces: Supports 2 1000M Ethernet interfaces (supporting IEEE1588 protocol), 8 RS232/RS485 interfaces, 2 high-speed USB2.0 interfaces, and 2 industrial CAN2.0A/B bus interfaces.
Rich I/O functions: Provides 8-24 digital input/output (DIO) interfaces, 8 channels of 12 bit analog-to-digital converters (ADCs), and 4 channels of 16 bit analog-to-digital converters (DACs).
High reliability: Operating temperature range of -40 ° C to+85 ° C, protection level of IP40, suitable for harsh industrial environments.
Supports multiple programming languages and protocols: Supports programming languages such as Structured Text (ST), Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), as well as communication protocols such as Modbus, PROFIBUS, CAN, etc.
technical specifications
Cortex-A8 720MHz or 32-bit RISC processor
512MB DDR2 RAM+1GB Flash
Ethernet interface 2 × 1000M, supporting IEEE1588 protocol
Serial interface 8 x RS232/RS485, 2 x USB 2.0, 2 x CAN
8~24 DIO interfaces for digital I/O
Analog interface with 8 channels of 12 bit ADC and 4 channels of 16 bit DAC
Working temperature -40 ° C to+85 ° C
Protection level IP40
Dimensions 190mm × 230mm × 80mm
Weight 2.5 kg
Application scenarios
Industrial automation: used for control and monitoring of production lines and manufacturing processes.
Power system control: used for power plant control systems and grid monitoring.
Motion control: used for controlling mechanical motion systems such as machine tools, robots, and conveyor belts.
High integrity application: By adding SM81x module and SIL certification software, high integrity functionality for SIL 2 and SIL 3 certification can be achieved.
Installation and debugging
Installation method: Supports wall mounted or rail mounted installation.
Debugging Tools: Provides rich debugging tools and diagnostic functions for users to maintain and troubleshoot.
Maintenance and Support
Diagnostic function: The built-in diagnostic system can quickly identify the fault point, making it easy for maintenance personnel to troubleshoot problems.
Technical support: A professional team provides 24/7 technical support.
ABB PM865K02 has become an ideal CPU controller module in the fields of industrial automation and power system control due to its high performance, multifunctionality, and high reliability.
