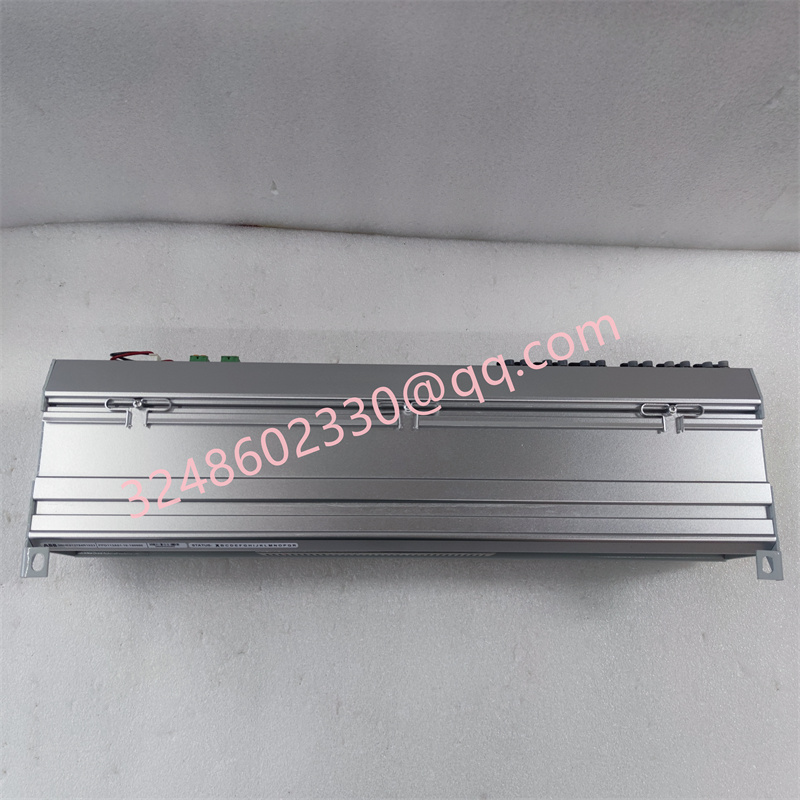

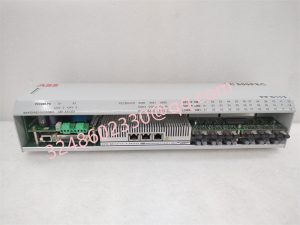

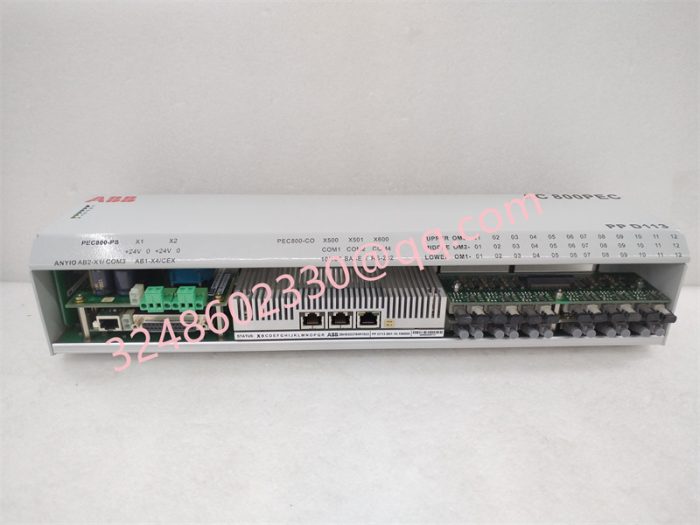

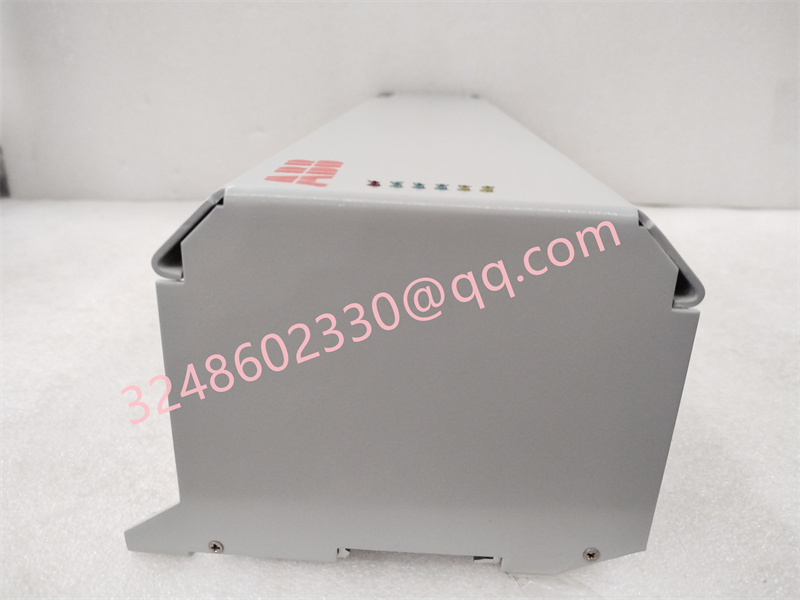

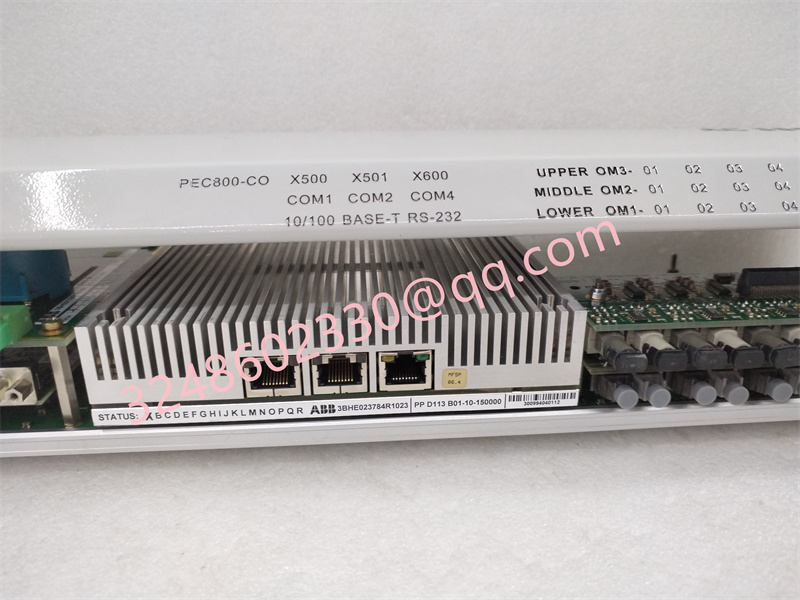

ABB Controller PPD113-B03-10-150000

The ABB controller PPD113-B03-10-150000 is a high-performance controller module in the AC 800PEC series, with features such as short cycle time, high processing capacity, fast communication, and I/O. It is suitable for industrial automation scenarios that require high-performance control and reliable operation.

1、 Product positioning and core functions
PPD113-B03-10-150000 belongs to the ABB AC 800PEC controller series, designed specifically for industrial automation systems. Its core functions include:

High speed data processing: supports short cycle times as low as 100 μ s, meeting real-time control requirements.
High processing capability: Integrated with high-performance processors, capable of handling complex logical operations and high-speed data exchange.
Fast communication and I/O: Supports fast communication interfaces (such as fiber optic links) and high-speed I/O systems (read/write operation time<1ms) to improve system response speed.
Flexible programming tools: using IEC61131-3 language (such as Control Builder), supporting MATLAB/Simulink for model design and control development, shortening the development cycle.
System Integration: Fully integrated into the ABB 800xA system, supporting seamless integration with advanced control strategies.
2、 Technical features and advantages
Hardware Design
FPGA technology: Innovatively using FPGA to implement protocol processing and application functions, reducing the load on the main processor.
Modular structure: supports flexible configuration from small and compact to large modular systems, adapting to application needs of different scales.
No moving parts: Industrial grade hardware design, long lifecycle, easy to upgrade and maintain.
performance metrics
I/O speed: Fast I/O systems cover read and write operation times<1ms, while slow I/O systems support speeds>1ms, meeting diverse control requirements.
Anti interference capability: Fiber optic link connection enhances electromagnetic interference immunity, and potential free connection simplifies isolation design.
Application benefits
Improving process quality: Through high-speed data processing and precise control, optimizing production processes and enhancing product quality.
Reduce costs: shorten the development cycle, save engineering and technical resources, and lower energy consumption and operating costs.
Enhance reliability: Redundant design (such as dual CPU system) and fault detection function ensure stable system operation.
3、 Application scenarios and industry adaptation
PPD113-B03-10-150000 is suitable for the following scenarios:

High voltage frequency converter and excitation system
As an excitation controller, it provides excitation current for synchronous generators and supports precise control of excitation power units and regulators.
Example: In the power system, maintaining grid voltage stability by quickly responding to load changes.
DCS
Support the integration of intelligent I/O devices and fast logic I/O devices to alleviate the pressure on the central processing unit and improve system performance.
Example: In mine automation, connecting distributed sensors and actuators to achieve remote monitoring and collaborative control.
High demand industrial environment
Suitable for scenarios such as power plants and steel mills that require strict control accuracy and reliability.
Example: In steel production, optimizing rolling process parameters through high-speed data acquisition and processing.
key parameters
Communication interface: Confirm whether it supports protocols such as EtherNet/IP and Modbus TCP to meet device interconnection requirements.
I/O type: Select digital input/output, analog input/output, or hybrid configuration according to the application scenario.
Redundancy requirement: For key application scenarios, it is recommended to choose models that support dual CPU redundancy to enhance system fault tolerance.
