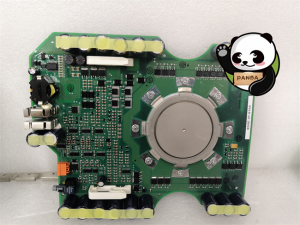

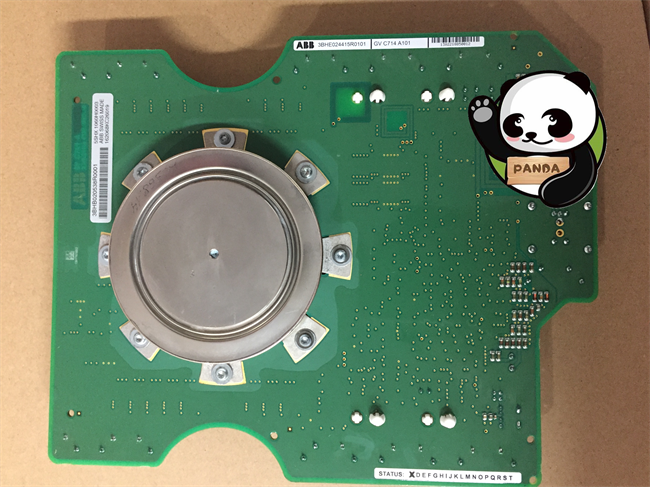

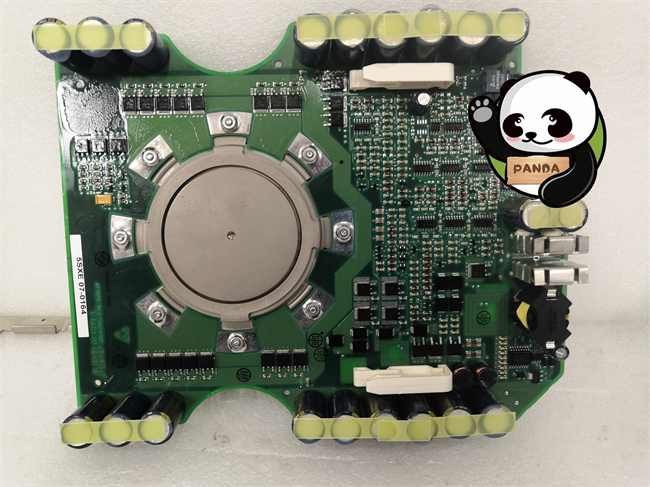

ABB 5SHX1060H0003 medium high voltage variable frequency device, Swiss imported IGCT module

ABB 5SHX1060H0003 is a medium to high voltage variable frequency device imported from Switzerland. It adopts integrated gate commutated thyristor (IGCT) technology and has the characteristics of high reliability, fast switching, and low loss. It is widely used in the fields of power electronics and industrial automation.

1、 Product Features
IGCT technology:
IGCT is a high-power semiconductor device that combines the functions of thyristors and rectifiers, featuring fast switching, high voltage resistance, and high current.
Compared to traditional IGBT (Insulated Gate Bipolar Transistor), IGCT has lower on state voltage drop, higher reliability, and lower manufacturing cost.
High reliability:
5SHX1060H0003 adopts a press fit design, with a compact structure and high blocking voltage and current carrying capacity.
Suitable for harsh industrial environments such as high temperature, high humidity, high vibration, etc.
Quick switch:
The switching frequency of IGCT can reach several kilohertz, making it suitable for high-frequency applications.
Combining the high power density of GTO (gate turn off thyristor) with the high switching frequency advantage of IGBT.
Low loss:
Optimized the on state loss and switch loss, improving the overall efficiency of the system.
Suitable for variable frequency drive systems that require high efficiency.
2、 Technical parameters
Model: 5SHX1060H0003
Brand: ABB
Type: IGCT module
Power supply: 115-240V
Interface method: Terminal interface
Supporting Protocol: Communication Protocol Module
Application areas: Industrial variable frequency speed regulation, wind power grid connection, rail transit, flexible DC power grid, etc
3、 Application Fields
Industrial frequency conversion speed regulation:
ACS series frequency converters used in the field of medium voltage transmission to achieve precise control of motors.
Suitable for drive systems in industries such as steel, petroleum, chemical, and papermaking.
Wind power grid connection:
PCS series converters used in the field of wind power generation to achieve efficient conversion and grid connection of wind energy.
rail transit:
A prototype of a modular multilevel converter (MMC) for rail transit power supply has been successfully developed, improving the reliability and efficiency of the power supply system.
Flexible DC power grid:
Applied in key equipment such as MMC, DC transformers, and DC circuit breakers to meet the special requirements of flexible DC power grids.
4、 Advantages and Characteristics
High performance:
Combining the advantages of GTO and IGBT, it has high power density, high switching frequency, and low loss.
High reliability:
Adopting advanced manufacturing processes and materials to ensure stable operation in harsh environments.
Easy to integrate:
Provide standard interfaces and communication protocols for easy integration with other devices.
Low maintenance cost:
Long life design reduces the frequency of maintenance and replacement, lowering the overall cost of ownership.

Main products, advantageous supply, sufficient inventory, if you need more, please contact me.
PLC and DCS system spare modules from world-renowned brands
Honeywell. Schneider.
Emerson EMERSON. XYCOM。
Woodward Woodward. Westinghouse.
WEStation system spare parts. Avis Triconex.
Motorola. Rockwell.
ABB。 XYCOM。
Bently. GE General Electric. Yaskawa Yaskawa.
Bosch Rexroth Bosch Rexroth.
Yokogawa Yokogawa. Siemens.
Reliance。 Modicon.

Please contact Manager Luo for purchasing modules
Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
WhatsApp:+86 18030183032
Mailbox： 3248602330@qq.com
