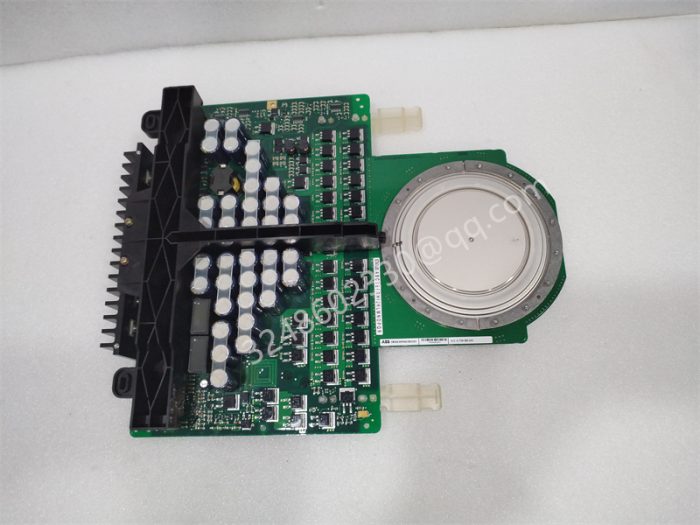

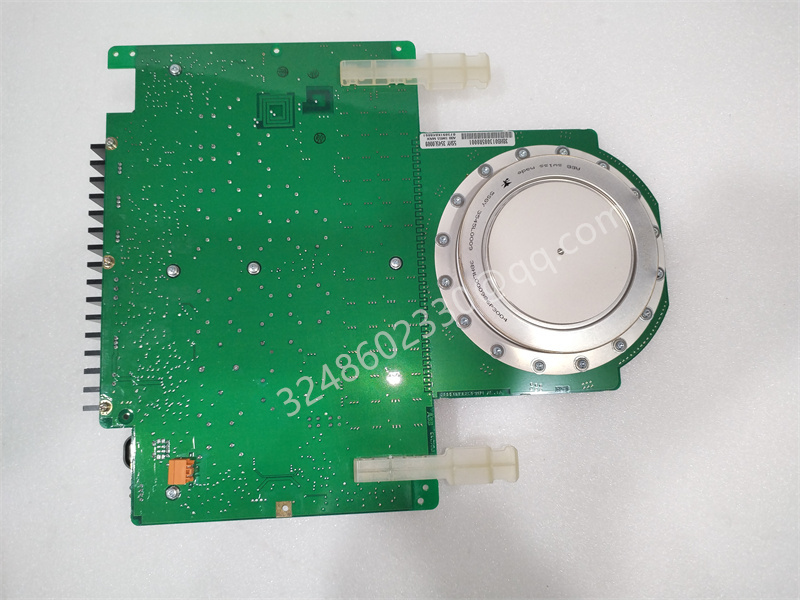

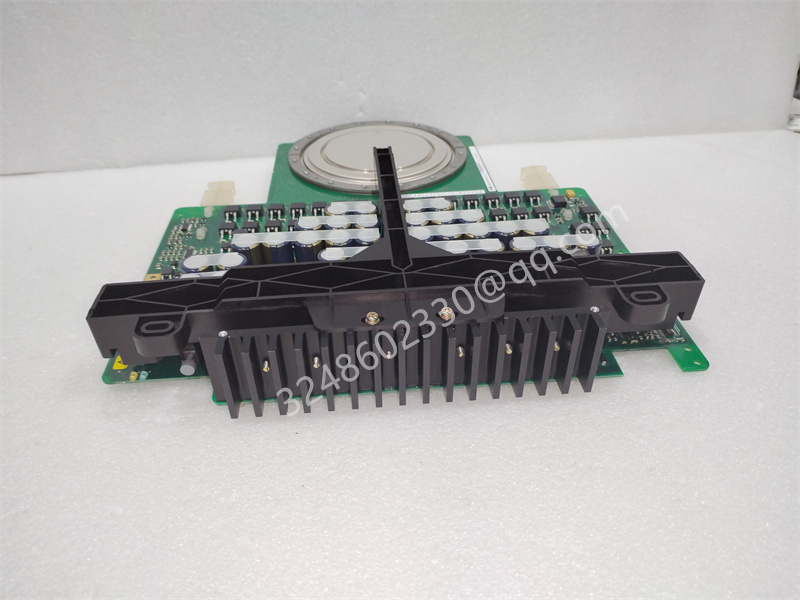

ABB 3BHE023784R0001 5SHY3545L0014 thyristor module

ABB 3BHE023784R0001 5SHY3545L0014 is an integrated gate commutated thyristor (IGCT) module with high performance, high reliability,

and high power processing capability, widely used in the fields of power electronics and industrial automation.

1、 Product Overview
Model: 3BHE023784R0001 5SHY3545L0014
Type: Integrated Gate Converter Thyristor (IGCT) Module
Manufacturer: ABB (Swiss General Electric)
2、 Technical parameters
Maximum voltage: 4500V
Maximum current: 600A
Maximum power: 360kW
Switching speed: 10 μ s
Efficiency: up to 98%
Size: 170mm x 100mm x 50mm
Weight: 8.5kg
3、 Product Features
High performance:
Adopting IGCT technology, combining the advantages of IGBT and GTO thyristors, it has the characteristics of fast switching speed, large current capacity, and high voltage resistance.
Capable of stable operation in complex circuits and load environments with high voltage and high current, suitable for high-power application scenarios.
High reliability:
Modular design, compact structure, easy to install and maintain.
Using high-quality semiconductor materials, it has strong anti-interference ability and can withstand high temperatures, high currents, and other challenges in industrial environments.
It has a longer service life, reduces maintenance frequency and cost, and improves the stability and reliability of the system.
Quick response:
Having fast switch response characteristics, it is suitable for application scenarios that require precise control.
Can effectively control the start, stop, and load regulation of the power system.
Overload protection:
The module design takes into account overload protection function, which can provide protection in case of current overload and prevent equipment damage.
Ensure that equipment can automatically cut off current in case of abnormalities in the power system, ensuring system safety.
compatibility:
Widely supports compatibility with various control systems, supports common industrial control protocols, and facilitates integration into existing automation systems.
4、 Application Fields
Power transmission and distribution system: used to control the power output of motors or perform power conversion, improving the efficiency and stability of power transmission and distribution.
Motor control: Used in industrial production lines, wind power, pump stations, and other fields to regulate the speed and torque of motors, achieving precise motor control.
Renewable energy generation: In renewable energy generation systems such as wind and solar power, it is used to control the excitation system of the generator, improve power generation efficiency and stability.
Rail transit: In the rail transit system, it is used to control the power output of traction motors to ensure the stable operation of trains.
Industrial application: Used in various industrial processing equipment to achieve precise control of power components, improve equipment operating efficiency and accuracy.
