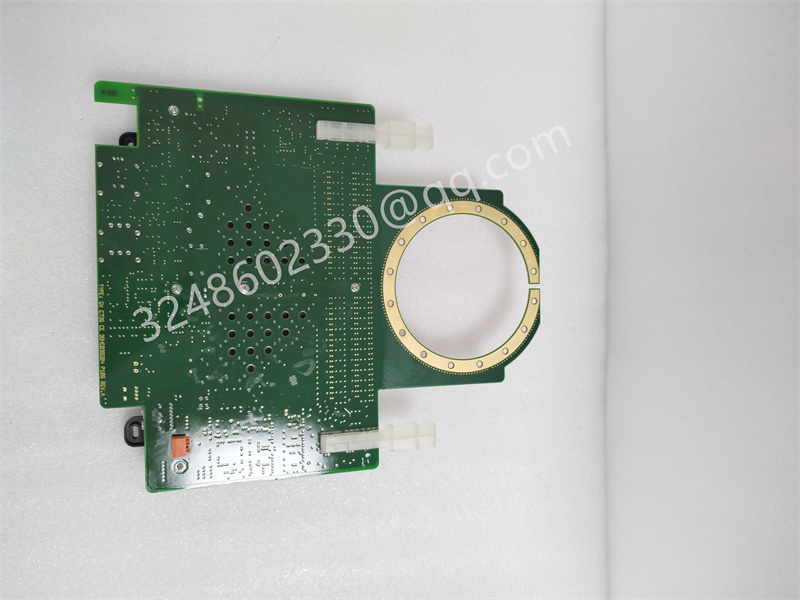

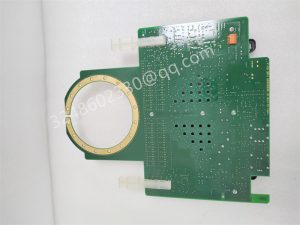

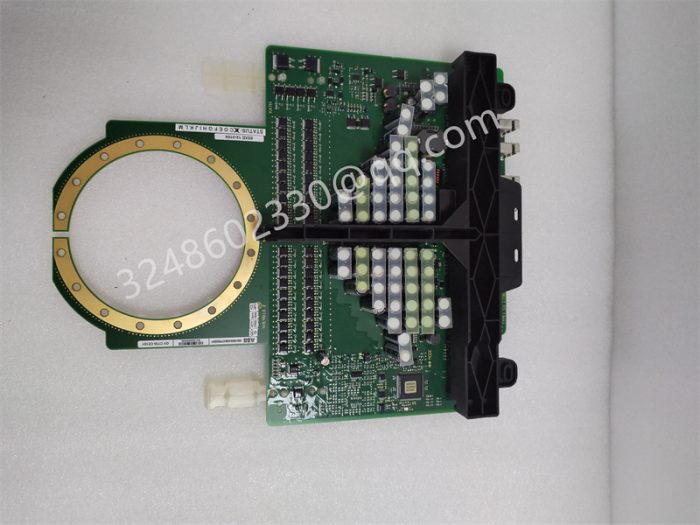

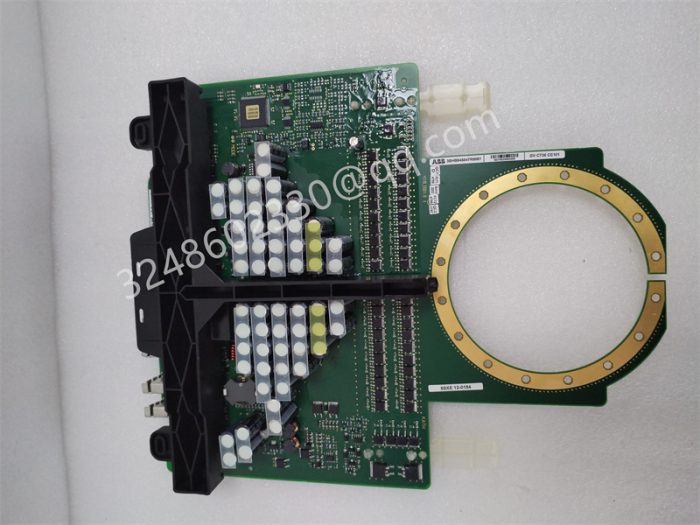

ABB 3BHB045647R0001 Input/Output (I/O) Module

The ABB 3BHB045647R0001 input/output (I/O) module is a high-performance semiconductor thyristor module with multiple input/output types and high-density design, widely used in industrial power systems and control applications.

1、 Product Features
Multiple input/output types: It may support various types of input/output signals such as analog input, analog output, digital input, and digital output to meet the needs of different application scenarios.
High density design: may have a large number of input/output channels, can connect a large number of on-site devices, and improve system integration and efficiency.
Communication interface: It may have multiple interfaces for communicating or connecting with other devices, facilitating system expansion and upgrades.
High reliability: Using high-quality semiconductor materials and advanced manufacturing processes to ensure high reliability even in harsh working environments.
Easy to integrate: The module design is compact, the interface is standardized, and it is easy to integrate with other control systems and devices.
2、 Application Fields
Power electronics system: commonly used in devices such as AC/DC converters, inverters, and rectifiers to control and convert electrical energy.
Power regulation: In the power system, it can be used to regulate current and voltage to improve power factor and perform power regulation.
Motor control: In a motor drive system, it is used to control the speed, torque, and starting of the motor.
Heating system: used to control resistance heating systems, such as electric furnaces and heating furnaces, to achieve precise temperature control.
Lighting system: In some lighting applications, it is used to adjust the brightness of lights.
3、 Technical parameters
Rated voltage: 3300V (specific parameters may vary depending on the model and application scenario)
Rated current: 45600A (specific parameters may vary depending on the model and application scenario)
Rated power: 150.96MVA (specific parameters may vary depending on the model and application scenario)
Protection level: IP67
Size: 400mm x 350mm x 80mm
4、 Functional advantages
Precise control: By adjusting the conduction angle of the thyristor, the current magnitude and phase passing through the load can be precisely controlled, achieving stable control of voltage and current.
Fast response: It has a fast response speed and can change the magnitude of the current within milliseconds, enabling the control system to quickly respond to load changes.
Heat dissipation performance: Considering its high-power characteristics, modules are usually equipped with efficient heat dissipation systems such as heat sinks and fans to ensure stable operation under high loads.
Safety features: may include safety features such as overcurrent protection and over temperature protection to prevent equipment damage or malfunction.
