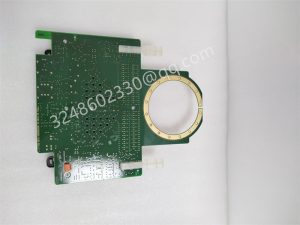

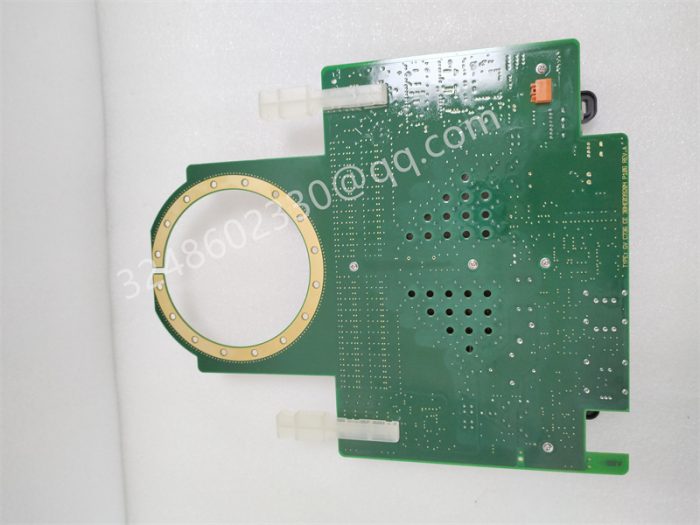

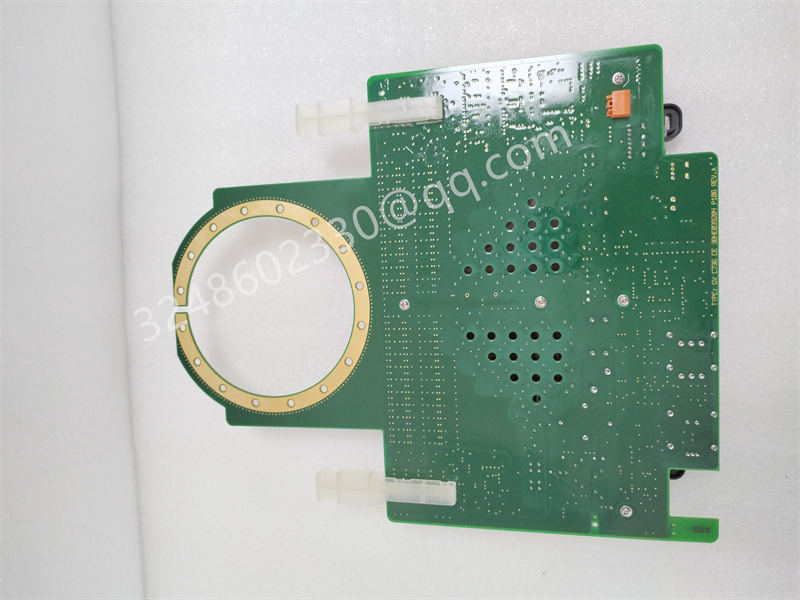

3BHB045647R0001 GVC736CE101 Control Module

ABB 3BHB045647R0001 GVC736CE101 Control Module

Product Overview:
3BHB045647R0001 GVC736CE101 is an integrated power control communication three in one module launched by ABB. It is internally integrated with IGCT thyristor, drive circuit, protection logic and field bus interface, which can directly drive high-voltage and large current loads, and can also be used as the core power unit of motor control, excitation system or frequency converter.

Main features and advantages
Power and signal integration: Integrating the 1400 V/47 A power stage with high-speed digital control in the same package, eliminating the need for external driver boards and pulse transformers, and reducing wiring by more than 30%.
Multiple protection mechanisms: Built in overcurrent, overvoltage, overtemperature, and short-circuit self turn off logic, can cut off current within 10 µ s in case of a fault, ensuring system safety.
Flexible control mode: Supports open-loop V/f, closed-loop vector and servo torque control, suitable for asynchronous motors, synchronous motors and permanent magnet motors.
Rich communication interfaces: onboard EtherNet/IP, RS-485, CAN, Profibus DP, Modbus TCP, facilitating seamless integration with PLC, DCS, SCADA.
Industrial grade durability: IP54 aluminum shell heat dissipation, -40 ° C…+85 ° C wide temperature design, can be directly installed in harsh places such as rolling mills, mines, or wind turbine towers.

technical specifications
Order number 3BHB045647R0001
Control unit model GVC736CE101
Maximum voltage 1400 V AC/DC
Rated current 47 A (continuous)
Maximum conduction current 95 A (peak value 1 s)
Switching frequency can be set from 0.5 Hz to 400 Hz
Control power supply 24 V DC ± 20%/100-240 V AC optional
Output signal 4-20 mA, 0-10 V, 24 V logic
Communication protocols EtherNet/IP, Modbus TCP, Profibus DP, CAN
Working temperature -40 ° C…+85 ° C
Protection level IP54 (module)
Size 200 mm × 150 mm × 50 mm Typical
Weight 3.2 kg

application area
Industrial motors: Soft start and speed regulation for high-pressure pumps, fans, compressors, and extruders.
New energy: wind power variable pitch, photovoltaic inverters, AC/DC conversion in energy storage PCS.
Mining metallurgy: mine hoist, main drive of rolling mill, electrode adjustment of electric arc furnace.
Process industry: chemical reactor stirring, pipeline valve servo control, large centrifuge.

Related products
3BHB045647R0002: Same series high current version (95 A continuous), suitable for larger power motors.
GFD212A: ABB excitation high-voltage controller, combined with GVC736CE101 to form the generator excitation system.
ACS800-07: High voltage frequency conversion cabinet, which can be directly embedded into 3BHB045647R0001 as a power unit to achieve a complete frequency conversion solution.
